Parts for:

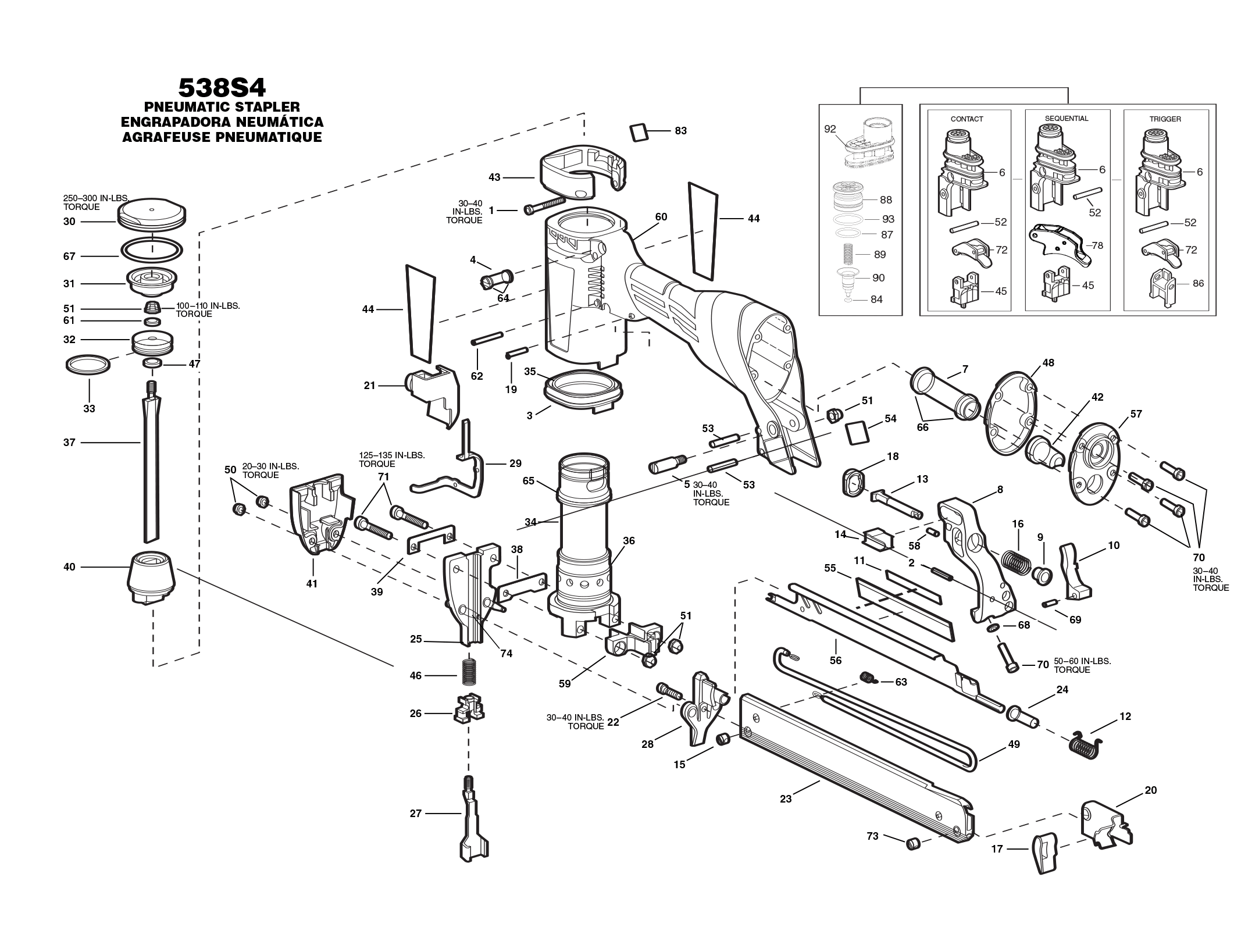

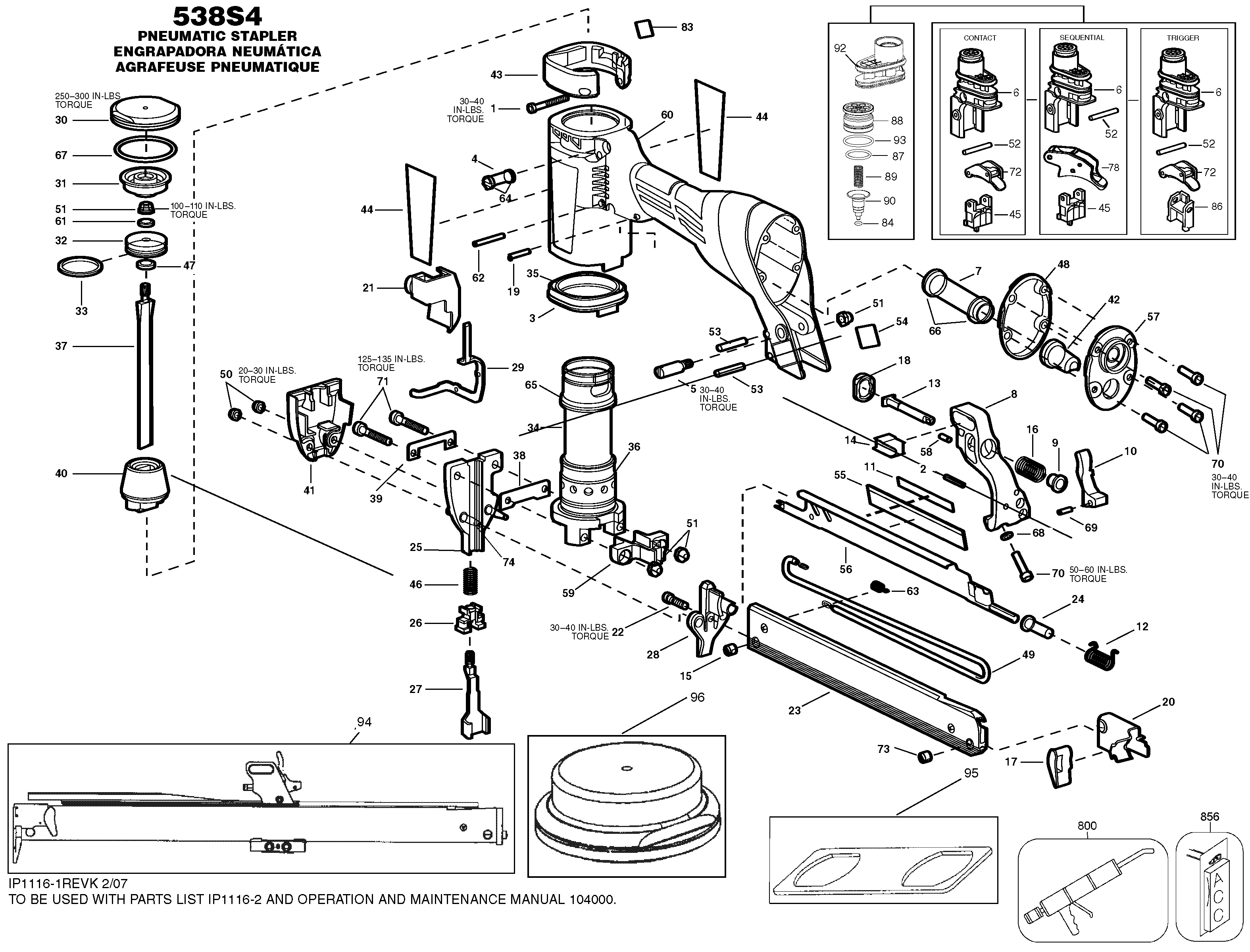

Bostitch 538S4 16 Gauge S4 Series Stapler

Search Parts:

Search Parts

Only common repair parts are available for purchase. If a part does not have add to cart button it's not available for purchase on Toolbarn. Please do not contact customer service for availability on these items.

Click To Hide Unavailable Parts

Please scroll left/right table for more info!

Ref	Description	Qty
1	SCREW,SHCS,M4X0.7X35	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
10	TOGGLE, MAGAZINE	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
11	LABEL,MAGAZINE CAPACITY * Obsolete *	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
12	SPRING,COVER	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
13	LATCH,MAGAZINE	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
14	SLEEVE,BRACKET	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
15	INSERT,THREADED M4X.7	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
16	SPRING,COMPRESSION	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
17	PUSHER HANDLE	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
18	DISC,LATCH STOP	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
19	PIN,SPRING,4X20MM	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
2	PIN,SPIROL,M4X14MM	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
20	PUSHER (1/2IN)	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
21	COVER,TRIP H/P * Obsolete *	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
22	SCREW,SPECIAL M4X20	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
23	ASSEMBLY,MAGAZINE,1/2IN	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
24	BUSHING,MAGAZINE COVER	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
25	NOSE,S4	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
26	ADJUSTER,TRIP	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
27	ARM,CONTACT	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
28	TIP,CORE 1/2	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
29	ARM,UPPER CONTACT	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
3	BOSTITCH TP * Obsolete *	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
30	CAP,SLEEVE H/P	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
31	BUMPER,TOP H/P	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
32	PISTON	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
34	SLEEVE, CYLINDER - H/P	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
35	BULKHEAD,SLEEVE H/P * Obsolete *	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
36	SEAL,CHECK	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
37	DRIVER,(1/2IN)	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
38	WEARPLATE (1/2IN)	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
39	PLATE,NOSE	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
4	VALVE,ENERGY CONTROL	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
40	BUMPER,LOWER H/P (1/2)	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
41	CASTING,NOSE COVER	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
42	EXHAUST DEFLECTOR	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
43	PROTECTOR,FRONT FRAME H/P	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
44	ASSEMBLY, LABEL	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
45	ARM GUIDE	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
46	SPRING,COMPRESSION	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
47	WASHER,PISTON	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
48	GASKET,END CAP H/P	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
49	Extension Spring	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
5	SCREW,SPECIAL (MAGAZINE)	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
50	NUT, NYLON M5X.80	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
51	Nut	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
52	PIN,SPRING,M3X32	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
53	PIN,ROLL,M4X30MM	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
54	LABEL,PATENT	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
55	n/a	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
56	COVER,MAGAZINE	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
57	CAP,END H/P	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
58	PIN,SPIRAL 4X10MM	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
59	TOP GUIDE	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
61	WASHER,SPECIAL M6	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
62	PIN,SPRING 4X32MM	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
63	BOSTITCH TP	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
64	O-RING,.268X.075	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
65	O-RING,1.609X.139	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
66	O-ring for BT5	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
67	O-Ring	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
68	WASHER, HSLW M5	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
69	Pin, Spring M3x12MM	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
7	EXHAUST TUBE	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
70	Screw	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
71	Screw	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
72	CONTACT TRIP CONVERSION KIT (11224-0864701-4)	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
73	PIN,SPECIAL(MAG NUT)	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
74	PIN,NOSE	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
78	TRIP CONVERSION KIT	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
8	BRACKET,MAGAZINE	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
83	LABEL,POWER VALVE	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
84	O-RING	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
86	STOP, TRIGGER * Obsolete *	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
87	O-RING	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
88	HEAD VALVE ASSEMBLY	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
89	SPRING,COMPRESSION	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
9	BUSHING,TOGGLE PIN	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
90	SEAL,EXHAUST	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
91	HOUSING	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
92	O-RING	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
93	O RING	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.

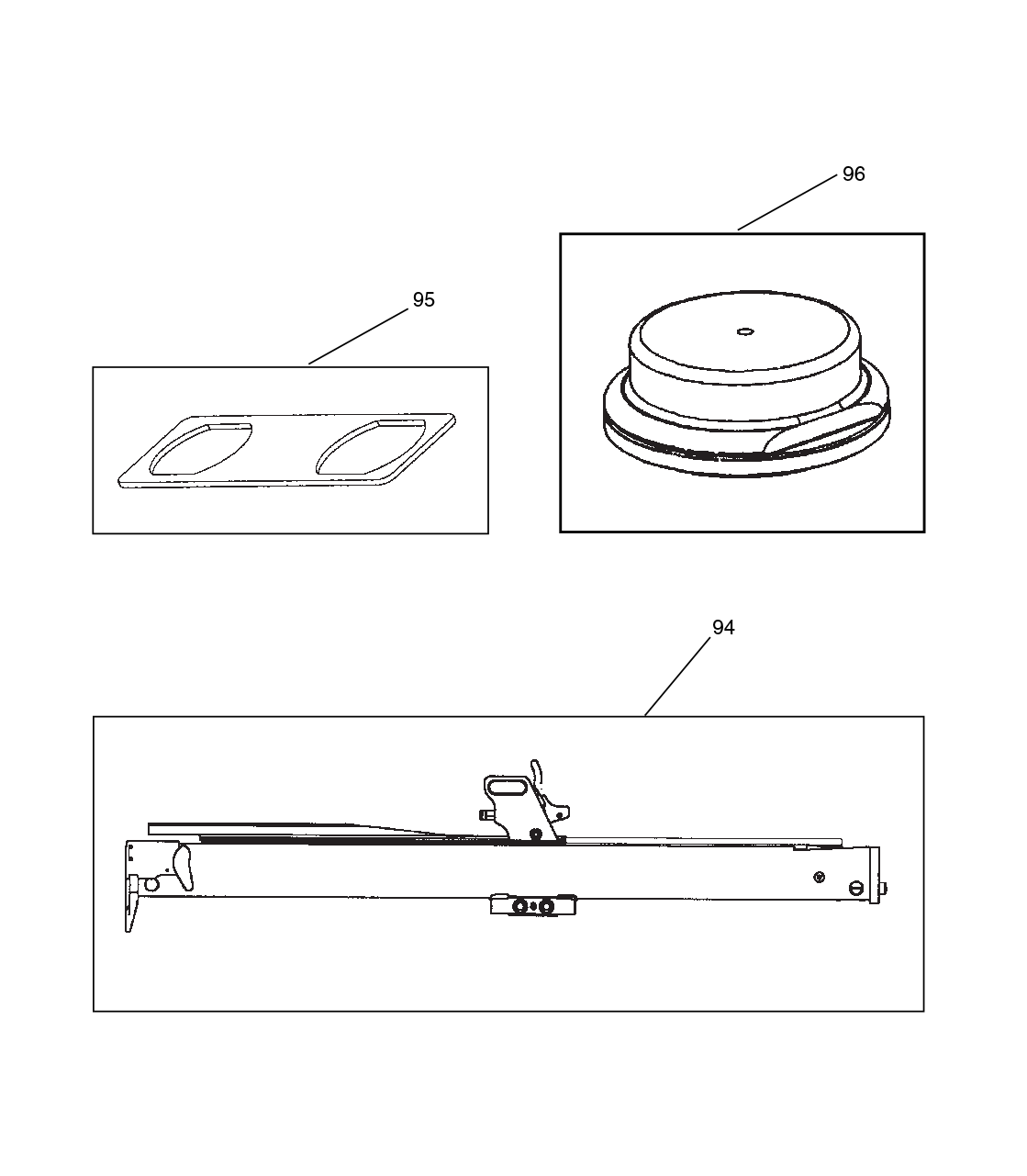

94	ASSY, 400/500 SERIES S4 LM	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
95	WRENCH,SLEEVE CAP	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
6	Trigger Valve Assembly Kit	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
33	PISTON RING	Add to Cart 0 Required Quantity Required Quantity Required popup block Please enter a quantity of "0" or more to proceed.
