Search Parts:
Only common repair parts are available for purchase. If a part does not have add to cart button it's not available for purchase on Toolbarn. Please do not contact customer service for availability on these items.

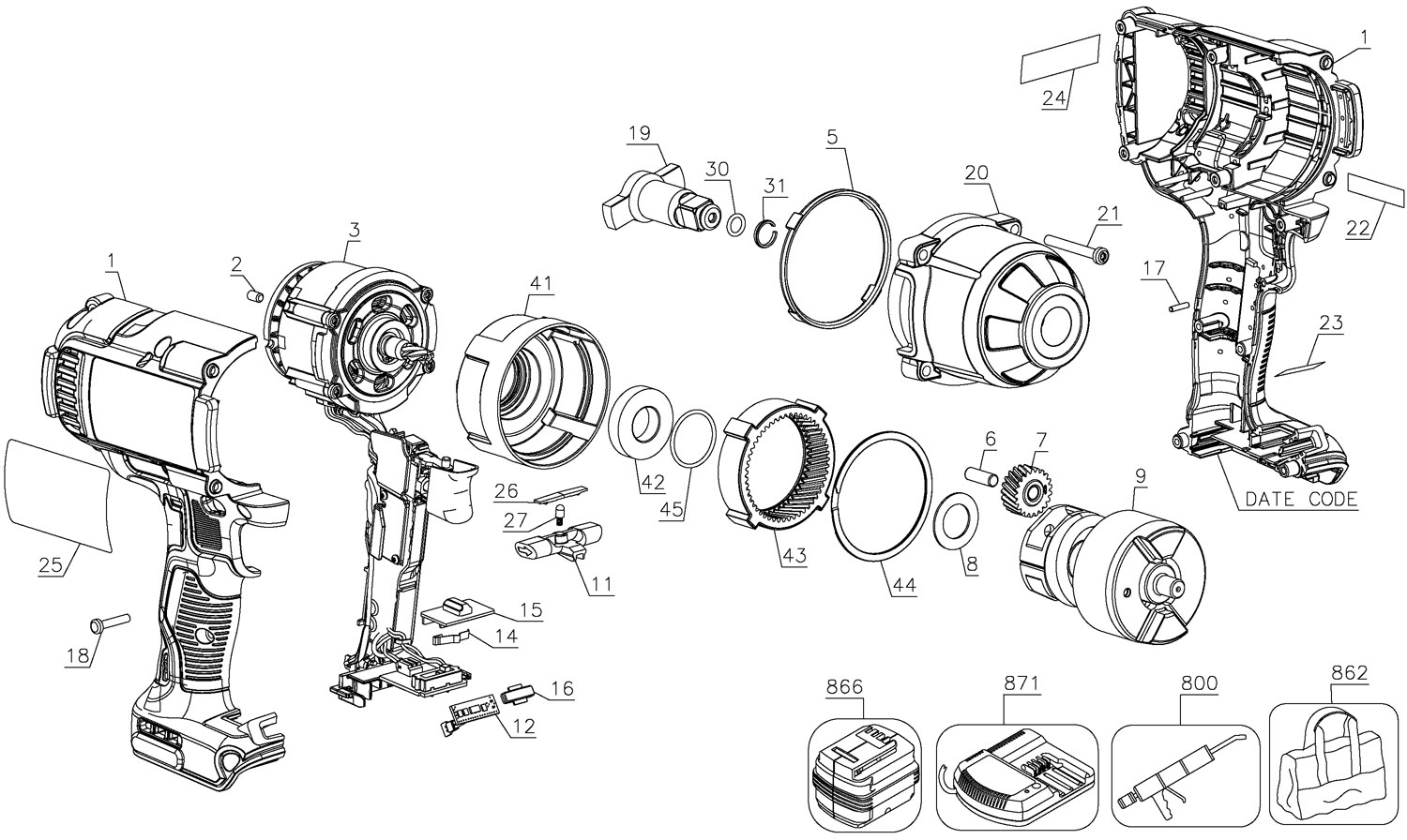

| Ref | Part # | Description | Price | Qty |
|---|---|---|---|---|
| Fig 1 - 2 | RUBBER PLUG |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 1 - 3 | MOTOR AND SWITCH ASSEMBLY |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 5 | TP GEARCASE SEAL |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 6 | TP ROLLER PIN |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 1 - 7 | TP HELICAL PLANET |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 1 - 8 | TP RETENTION WASHER LOWER PIN |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 9 | MECHANISM ASSEMBLY * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 11 | LED ASSEMBLY |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 11 | DEWALT TP FWD/REV BUTTON |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 14 | DETENT SPRING |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 15 | SPEED SELECTOR |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 16 | LENS |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 17 | ROLL PIN |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 18 | PLASTITE SCREW |
9 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "9" or more to proceed. |
||
| Fig 1 - 19 | ANVIL ASSEMBLY |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 20 | NOSE CONE ASSY |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 21 | SCREW |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 1 - 22 | IDENT LABEL |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 23 | DCF899 SPEED SELECTION LBL 3 SPD |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 24 | DCF899 BRUSHLESS MOTOR BRAND LBL |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 26 | DETENT PLATE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 27 | DETENT PIN |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 30 | O-RING |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 31 | SPRING RING |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 41 | GEARCASE, MACHINED |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 42 | BEARING 17.0X 35.0 X 8.0 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 43 | RING GEAR |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 44 | TP SPIRAL RING |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 45 | TP O-RING 25.12X1.78 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 800 | GREASE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 862 | TOOL BAG |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 866 | 20V MAX XR5 PREMIUM LITHIUM PACK |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 871 | 12V TO 20V LITIUM ION BATTERY CHARGER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
