Parts for:

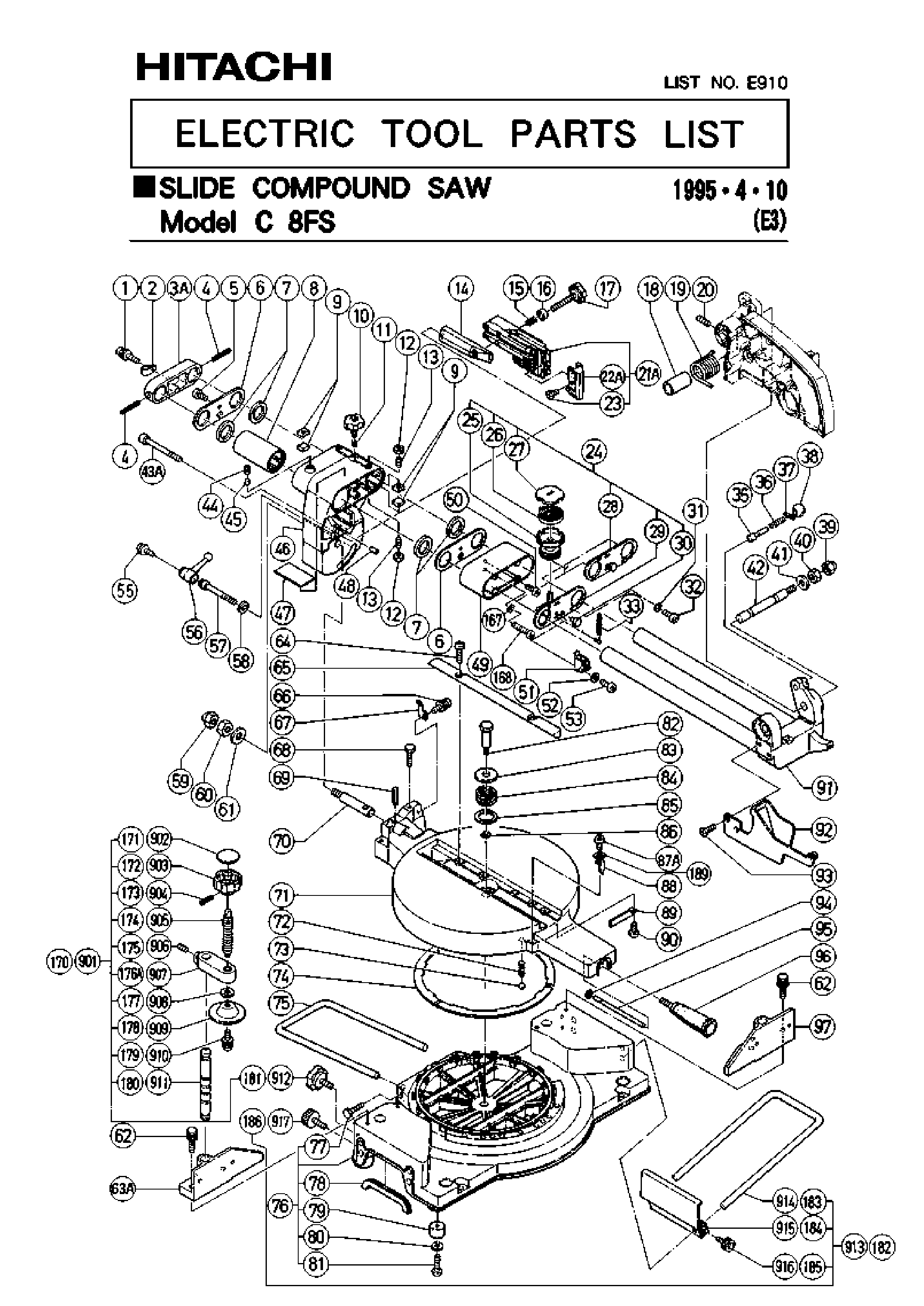

Hitachi C8Fs Hitachi Electric Slide Compound Saw

Search Parts:

Search Parts

Only common repair parts are available for purchase. If a part does not have add to cart button it's not available for purchase on Toolbarn. Please do not contact customer service for availability on these items.

Click To Hide Unavailable Parts

Please scroll left/right table for more info!

Ref	Description	Qty
1	MACHINE SCREWS M4x16 w/WASHERS	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
2	NYLON CLIP C8FB2 C10FS C12FSA	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
2	NYLON CLIP C8FB * Obsolete *	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
3	SUPPORT C8FB/C8FB2/C10FS	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
4	ROLL PIN D6x40 (10 pc) C8FB2	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
5	MACHINE SCREWS M5x12	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
6	PACKING COVER C8FB2	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
7	FELT C8FB C8FB2 C10FS C12FSA	Add to Cart 4 Required Quantity Required Quantity Required popup block Please enter a quantity of "4" or more to proceed.
8	BALL BUSHING C8FB2 C10FS	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
9	BUSHING C10FS C8FB2 C12FSA	Add to Cart 4 Required Quantity Required Quantity Required popup block Please enter a quantity of "4" or more to proceed.
10	KNOB BOLT M8x20 C8FB2 C10FS * Obsolete *	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
11	LOCK SPRING C7BD C7SB C8 M12V	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
12	LOCK NUT M8 (10pc) C8FB2	Add to Cart 4 Required Quantity Required Quantity Required popup block Please enter a quantity of "4" or more to proceed.
13	HEX SOCKET SET SCREW M8x16	Add to Cart 4 Required Quantity Required Quantity Required popup block Please enter a quantity of "4" or more to proceed.
15	GOVERNOR SPRING C10FS C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
17	KNOB BOLT M8x60 C10FS C12FSA	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
18	SLEEVE C8 C8FB2 C10FS C10FSH	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
19	SPRING C8FB2 C10FS	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
20	SET SCREW M6x16 C10FS C8FB2	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
21	GUARD ASSY C8FB2/C8FB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
22	GUARD (C) C8FB/C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
23	FLAT HD SCREW M4x6 C10FS	Add to Cart 4 Required Quantity Required Quantity Required popup block Please enter a quantity of "4" or more to proceed.
31	SPRING WASHER M5 C10FC	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
32	MACHINE SCREW M5x10 10PS	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
35	SET PIN C10FS C15FB C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
36	GAUGE SPRING C10FS C15FB C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
37	ROLL PIN D3x25 10PS C8FB2C10FS	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
38	GRIP C10FS C15FB C8FB2 C8FB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
39	CAP NUT M12 C8FB2/C10FS	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
40	NUT M12 (10 PCS) C10FS C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
41	WASHER M12 C8FB2 C10FS 10PS	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
42	HINGE SHAFT (A) C10FS,C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
44	SET SCREW M8x8 C10FS C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
45	BEARING LOCK C8FB2 C10FS P12R	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
48	PIN D5X12 (10 PS) P12R/P12RA	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
55	SCREW w/WASHERS M6x10 C10FS	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
56	CLAMP LEVER C10FCB/FSH/FS	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
57	BOLT (LEFT HAND) M10 C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
58	WASHER (I) C15FB/C8FB2/P12RA/R	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
62	BOLT W/WASHERS M8x35 C10FS	Add to Cart 4 Required Quantity Required Quantity Required popup block Please enter a quantity of "4" or more to proceed.
64	BOLT SR15 (PACK OF 10)	Add to Cart 4 Required Quantity Required Quantity Required popup block Please enter a quantity of "4" or more to proceed.
67	INDICATOR for BEVEL C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
68	NYLOCK BOLT M8x25 C8FB2	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
69	SLOTTED PIN D8x30 C10FS C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
70	HOLDER SHAFT C8FB2/C10FS/C8FB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
72	SPRING (C) C8FB2 C10FS C15FB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
73	STEEL BALL D12.7 C10FS 10 PS	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
74	LINER C12FSA	Add to Cart 3 Required Quantity Required Quantity Required popup block Please enter a quantity of "3" or more to proceed.
77	BOLT M6x25 (10pc) C10FC2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
78	BASE GRIP C12FSA	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
79	BASE RUBBER C10FS C12FSA C8FB2	Add to Cart 6 Required Quantity Required Quantity Required popup block Please enter a quantity of "6" or more to proceed.
80	BOLT WASHER M5 (10PCS) C8FB2	Add to Cart 6 Required Quantity Required Quantity Required popup block Please enter a quantity of "6" or more to proceed.
81	MACHINE SCREW M5x20	Add to Cart 6 Required Quantity Required Quantity Required popup block Please enter a quantity of "6" or more to proceed.
82	SHAFT ( A) C12FSA	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
83	WASHER (R) C12FSA	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
85	WASHER (G) C12FSA	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
86	SPRING WASHER M8 (10pc)	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
87	MACHINE SCREW M4x8 (10pc) C7SB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
88	MITER INDICATOR C10FS C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
89	SPACER C10FS C8FB2 C8FB C12FSA	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
90	MACHINE SCREW M4x10	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
93	FLATHD SCREW M6x16 C8FB2	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
94	RetainingRingE-TYPEforD7shaft	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
96	SIDE HANDLE C12LSH C12RSH	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
99	ARMATURE ASSY 115V C8FB2 C8FB * Obsolete *	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
100	BALL BEARING 6001VVCMPS2L	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
101	BALL BEARING G10SR SP18SA	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
103	FAN GUIDE (B) C8FB2/C8FB/C10FS * Obsolete * use 954-584	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
104	SCREW M5X60 C7SC KM12SC	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
106	BRUSH TERMINAL C7SC CR10V SB75	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
110	TERMINAL FOR NOISE SUPPRESSOR	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
112	TAPPING SCREW W/WASHER D4x25	Add to Cart 3 Required Quantity Required Quantity Required popup block Please enter a quantity of "3" or more to proceed.
113	MACH. SCREW w/WASHER M5x50 1pc	Add to Cart 3 Required Quantity Required Quantity Required popup block Please enter a quantity of "3" or more to proceed.
114	TAIL COVER C8FB2 C8FB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
115	TAPPING SCREW W/WASHER D4 X 20	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
118	WASHER (B) NR65AK VB16Y P12RA	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
119	HOUSING ASSY C8FB2/C8FB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
120	SET SCREW M5x16 C10FS C8FB2	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
122	BRUSH CAP C10FS C8FB2 C12FSA	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
123	Carbon Brush For C8FB2 WH22 (PAIR)	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
124	CORD ARMOR D10.1 C8FB2 CC14SB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
125	TUBE(D) C15FB C10FS C8FB2	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
126	CORD CLIP M12V2 M12SA2 C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
127	TAPPING SCREW W/WASHER D4 X 16	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
128	HEX SOCKET HD BOLT M5x10 (10 Pack)	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
129	WING NUT M8 C10FS C8FB2 10PS	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
130	HANDLE W/FLAT HD SCREW C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
131	FLAT HD SCREW M5 C8FB2	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
134	BALL BEARING 6004VVCMPS2L	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
135	BEARING HOLDER C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
137	HEX NUT M8 (10pc) C10RA C10FS	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
138	BOLT M8x100 C8FB2/C10FS/C12FSA	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
141	SPACER C12LSH C12RSH	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
142	WASHER C8FB C12FSA	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
144	STOPPER PIN C8FB2 C15FB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
147	SPRING C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
148	COLLAR (B) C8FB2 C8FS UA150	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
149	MACH SCREWw/WSHR M5x20 C10FS	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
150	SCREW W/WASHERS M5x8 C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
151	DUCT C8FB2 C8FB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
152	NYLON CLIP C8FB2 P12RA C12FA	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
153	SCREW W/WASHERS M5x16 C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
154	PAN HD. SCREW M5x10 C8FB2	Add to Cart 4 Required Quantity Required Quantity Required popup block Please enter a quantity of "4" or more to proceed.
156	HITACHI LABEL C8FB2 C10FA/FB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
158	WASHER C10FS C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
159	WASHER (C) C10FS C8FB2	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
162	FLAT HD SCREW M4 C8FB2	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
163	COVER C8FB2 C8FB * Obsolete *	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
165	RETURN SPRING C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
166	SUB COVER C8FB2 * Obsolete *	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
168	SCREW M5x30 (10pc) C10RA2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
171	LABEL (A) C8FB2 C10FS C8FB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
172	KNOB C10FS C8FB2 P12RA P12R	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
173	ROLL PIN D4x25 (10pc) C12FSA	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
174	Screw for C12FA	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
175	HexSockSetScrewM8x16 C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
176	SCREW HOLDER C10FS/C8FB2/	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
177	WASHER M10 (10pc) C8FB2 C12FSA	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
181	KNOB BOLT M8x20 C12FSA	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
185	KNOB BOLT M6x11 C8FB2/FB C10FS	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
186	KNOB BOLT M6x22 C10FSB	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
188	TAPPING SCREW D4x10 CC14 C15FB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
189	WASHER M4 C8FB2 CC14	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
701	DUST BAG FOR C8FB/C8FB2 (ACC)	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
702	Box Wrench 10mm for C10FS C8FB2 C6DC P20SB (ACC)	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
