Parts for:

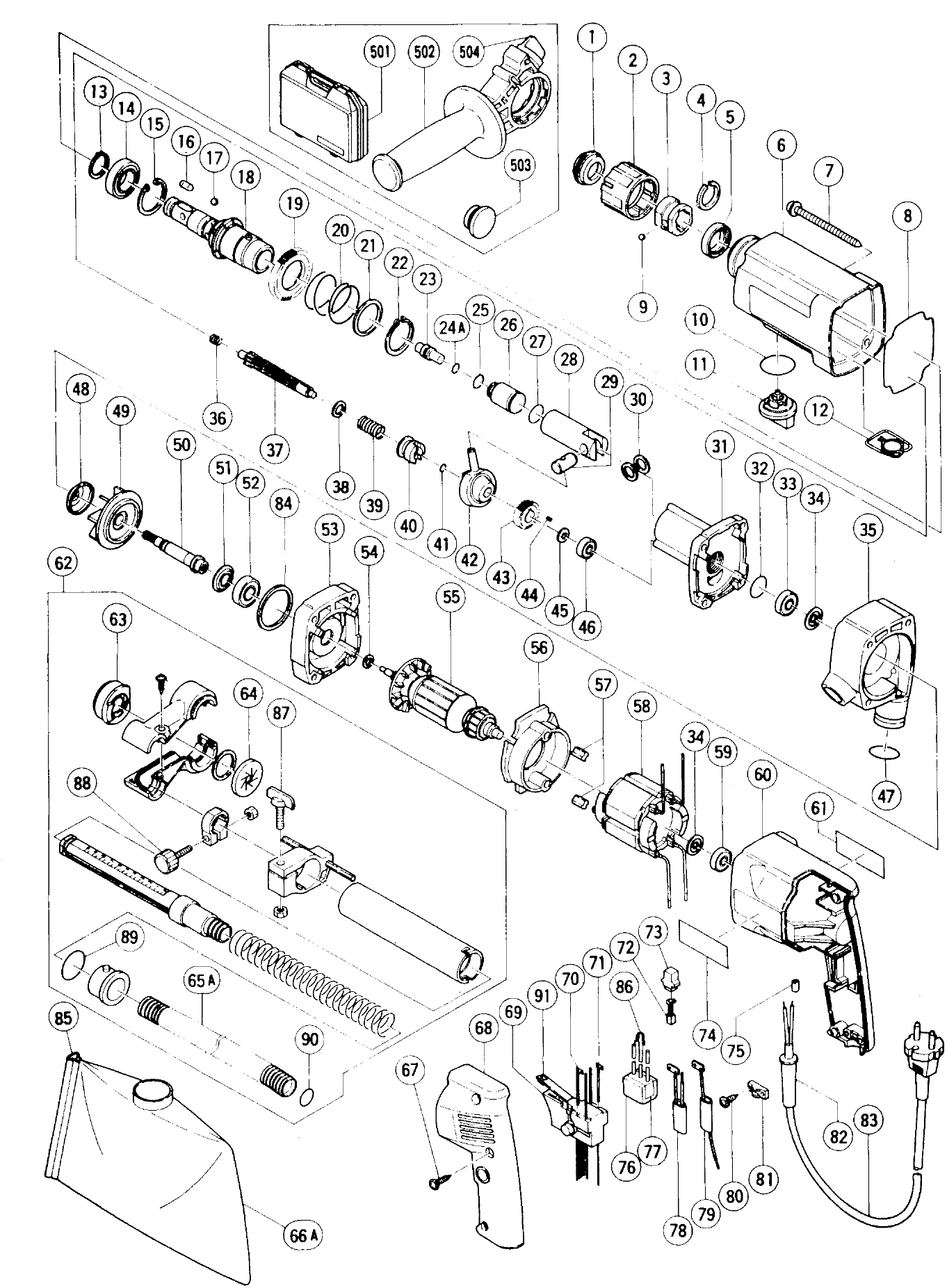

Hitachi Dh22Vd Electric Hammer Drill

Search Parts:

Search Parts

Only common repair parts are available for purchase. If a part does not have add to cart button it's not available for purchase on Toolbarn. Please do not contact customer service for availability on these items.

Please scroll left/right table for more info!

Ref	Description	Qty
1	FRONT CAP DH22VB/DH22VD/DH15D	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
10	O-RING DH22VB/VD DH24VB/VD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
11	CHANGE LEVER DH22VB/DH22VD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
12	SPRING (C) DH22VB/VD DH24VB/VD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
13	RETAINING RING DH24PF D20SHAFT	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
14	BALL BEARING 6904CM DH20DV	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
15	C-TYPE RETAINING RING D13Y	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
16	Needle Roller for DH22VB, DH22VD	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
17	STEEL BALL D5.556 DH24PE 10PS	Add to Cart 4 Required Quantity Required Quantity Required popup block Please enter a quantity of "4" or more to proceed.
18	Cylinder for DH22VB, DH22VD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
19	SECOND GEAR DH24PB/PB2/3/PE	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
2	Grip for DH22VB, DH22VD * Obsolete *	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
20	SPRING (A) DH24PB/PB2/3/PE/VB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
21	WASHER (A) DH24VD/VB/PE/PB2/3	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
22	RETAINING RING DH24PB D30SHAFT	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
23	SECOND HAMMER DH20DV/DH24PB/C	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
24A	O-RING (B) DH20DV/DH24PB/PC/PE	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
25	O-RING DH24PB/PC/PE/VB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
26	STRIKER DH22VB DH24VD/VB/PB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
27	O-RING (A) DH20DV DH24PB/PC/PE	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
28	PISTON DH20DV/DH24PB/PC/PE/VB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
29	PISTON PIN DH20DV/DH24PB/PC/PE	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
3	Needle Holder for DH22VB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
31	INNER COVER DH24VB/VD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
32	O-RING NV65AC/NV83A/2/DH24PB/	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
33	BALL BEARING G10SR SP18SA	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
34	WASHER (A)H45SB2 DH24PE/B/C/B2	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
35	Casing (B) for DH22VD, DH24VD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
36	SPRING (B) DH24PB/PE/VB/VD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
38	WASHER (B) DH24VB/VD DH24PB2/3	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
39	CLUTCH SPRING DH24PB/PB2/3/PE	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
4	Retaining Ring C-Type for DH22VB, D	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
40	CLUTCH DH20DV/DH24PB/PB2/PE	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
41	O-RING DH20DV/DH24PB/PC/PE/VB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
44	FEATHER KEY 3x3x8 DH24VB SB10T	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
45	SPACER DH24PB/PB2/PC/PC2/PE/PF	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
46	BALL BEARING 626VVC2PS2L DH24	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
47	O-Ring for DH22VD, DH24VD, DH24PD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
48	Seal Plate for DH22VD,DH24VD,DH24PD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
49	DUST FAN DH22VD/DH24VD/DH24PD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
5	OIL SEAL DH20DV	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
50	Dust Shaft for DH22VD, DH24VD, DH24PD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
51	DUST WASHER SV12SG SV12SF	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
52	BALL BEARING 6001DDCNPS2L	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
53	Casing (A) for DH22VD, DH24VD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
54	Rubber Sleeve for DH22VD, DH24VD, DH24PD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
55	ARMATURE 110-115V DH24/22VD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
56	FAN GUIDE DH24VB/VD DH22VB/VD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
57	RUBBER BUSHING	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
58	STATOR 110-115V DH24VD DH24VB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
59	BALL BEARING G10SR SP18SA	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
6	Gear Cover for DH22VB, DH22VD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
60	HOUSING DH22VB/VD DH24VB/VD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
606	SDS+AnchorSettingAdapter B W5/16 DH20DV DH24	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
610	DriftKey FLAT FOR Core Bits 956000..956006	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
612	DUST CUP	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
617	Washer for DH22VBK	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
62	DUST COLLECTION DH24VD/DH24PD * Obsolete *	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
622	DRILL CHUCK 13VLA& ADAPTER SET	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
624	DRILL CHUCK 13VLRB-D 1/2" D13	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
625	FLAT HD SCREW (A) LEFT HAND	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
63	Nozzle Seal for DH22VD, DH24VD, PD * Obsolete *	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
635	1/2"SDS+HAMMER DRILL CHUCK SET	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
636	RUBBER CAP DH20DV DH24PE	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
637	DRILL CHUCK WRENCH	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
64	Rubber Cap for H22VD, DH24VD, PD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
65A	Hose Assy for DH22VD, DH24VD, PD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
66A	DUST BAG DH22DV/DH24PD/DH24VD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
68	HANDLE COVER DH24VB/VD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
69	SpeedControlSwitch2P DH24VB * Obsolete *	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
7	D5 x 90 Screw for DH22VD, DH24VD, DH24PD	Add to Cart 4 Required Quantity Required Quantity Required popup block Please enter a quantity of "4" or more to proceed.
70	INTERNAL WIRE (B) (BLUE DH24VB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
71	INTERNAL WIRE (B) (BROWN) DH24	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
73	BRUSH HOLDER CJ110MV D13VB2	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
75	TUBE(D) C15FB C10FS C8FB2	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
76	SUPPORT CC12Y CR10V CR12V D13	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
77	NOISE SUPPRESSOR CR13VA CJ110V	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
8	RUBBER SEAL DH22VB/DH24VB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
80	TAP SCREW w/FLANGE D4x16 C8	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
81	CORD CLIP M12V2 M12SA2 C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
82	CORD ARMOR D10.2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
83	CORD ARMOR D10.1 H45SR * Obsolete *	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
84	Felt for DH24VD, DH24PD, DH22VD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
85	Rail for DH22VD, DH24VD, DH24PD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
86	EARTH TERMINAL CJ120V	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
87	WING BOLT M6x27 M12V M8V	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
88	M4 x 25.5 Knob Bolt for DH24VD, PD	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
89	O-RING H45MA H60MB VB16Y	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
9	STEEL BALL D6.35 DH38YE 10PS	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
90	O-RING (P16) CJ65V2/VA2 DH40FA	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
91	REVERSING SWITCH DH24VB * Obsolete *	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.

VIEW CART
