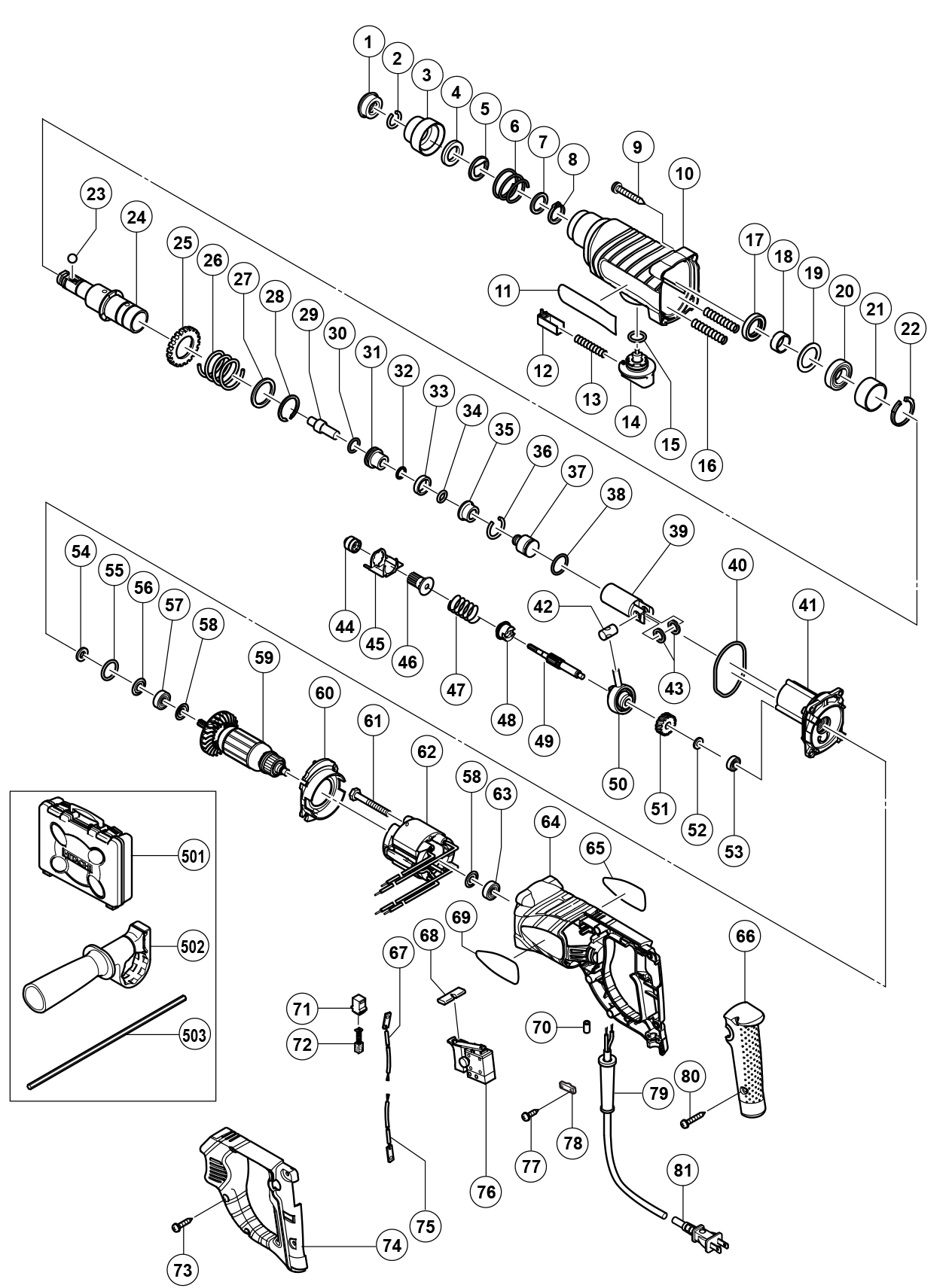

Parts for:

Hitachi Dh24Pf Rotary Hammer (3-Mode, Sds-Plus, D-Type Handle)

Search Parts:

Search Parts

Only common repair parts are available for purchase. If a part does not have add to cart button it's not available for purchase on Toolbarn. Please do not contact customer service for availability on these items.

Please scroll left/right table for more info!

Ref	Description	Qty
1	FRONT CAP DH24PB/PD/PE/VB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
10	GEAR COVER DH24PC2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
12	PUSHING BUTTON DH22PB DH24PB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
13	PUSHING SPRING DH24PC DH24PE(S	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
14	CHANGE LEVER DH24PC2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
15	O-RING S-18 NR90AC/2/AA/NV45AC	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
16	SPRING (B) DH24PC DH24PE(S)	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
17	OIL SEAL DH24PB/B2/B3/C/PE	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
18	SLEEVE DH22PB DH24PB2/3	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
19	FELT PACKING (B) DH24PC2/PC3	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
2	STOPPER RING DH30PC DH24PB2/3	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
20	BALL BEARING DH24PC2 DH22PB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
21	SLEEVE (A) DH22PB DH24PB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
22	RETAINING RING DH22PB 37SHAFT	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
23	STEEL BALL D7.0 DH20DV 10PS	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
24	CYLINDER DH24PC2 DH24PC3	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
25	SECOND GEAR DH24PC2 DH24PC3	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
26	SPRING (A) DH24PC DH24PE(S)	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
27	WASHER (A) DH24PC DH24PE(S)	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
28	RETAINING RING DH24PC D30SHAFT	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
29	SECOND HAMMER DH22PB DH24PB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
3	GRIP DH22PB DH24PB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
30	O-RING (1AP-20) NV50AG WH16	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
31	HAMMER HOLDER DH22PB DH24PB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
32	O-RING (B) DH22PB DH24PB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
33	DAMPER (A) DH22PB DH24PB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
34	O-RING (C) DH22PB DH24PB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
35	DAMPER HOLDER DH22PB DH24PB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
36	STOPPER RING DH22PB DH24PB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
37	STRIKER DH22PB DH24PB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
38	O-RING (I.D.16) DH24PB2 DH24PC	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
39	PISTON DH22PB DH24PB2 DH24PF	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
4	BALL HOLDER DH22PB DH24PB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
40	O-RING (I.D. 66.5) DH22PB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
41	INNER COVER DH22PB DH24PB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
42	PISTON PIN DH22PB DH24PB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
43	WASHER (C) DH24PB2/3 DH24PC2/3	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
44	PINION SLEEVE DH24PC2 DH24PC3	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
45	LOCK PLATE DH24PF3 DH24PC3	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
46	SECOND PINION DH24PC2/3	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
47	CLUTCH SPRING DH24PC2/3	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
48	CLUTCH DH24PC2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
49	SECOND SHAFT DH24PC2/3	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
5	HOLDER PLATE DH22PB DH24PB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
50	RECIPROCATING BEARING DH20DV	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
502	SIDE HANDLE DH24PE/DH24VB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
503	DEPTH GAUGE DH24PB/PC/PE/VB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
51	FIRST GEAR DH22PB DH24PB2/3	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
52	SPACER DH24PB/PB2/PC/PC2/PE/PF	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
53	BALL BEARING 626VVC2PS2L DH24	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
54	FELT PACKING DH22PB DH24PB2/3	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
55	O-RING NV65AC/NV83A/2/DH24PB/	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
56	PACKING WASHER DH22PB DH24PB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
57	BALL BEARING G10SR SP18SA	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
58	WASHER (A)H45SB2 DH24PE/B/C/B2	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
59	ARMATURE ASS'Y 120v DH24PF	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
6	HOLDER SPRING DH22PB DH24PB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
60	FAN GUIDE DH22PB DH24PB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
601	HAMMER GREASE 1 POUND CAN	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
602	HAMMER GREASE 0.1 POUND TUBE (ACC)	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
603	GREASE FOR HAMMER DRILLS	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
604	DUST COLLECTOR (B) ASSY DH20DV DH24s	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
605	SOCKET ADAPTOR (B) DH20DV DH24s	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
606	DUST CUP	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
608	STOPPER	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
61	HEX HD TAPPING SCREW D4x55	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
610	DRILL CHUCK WRENCH	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
611	DRIVER BIT #2 PH+ 1"L W6V3 W6VA3	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
612	DRIVER BIT #3 PH+ 1"L W6V3 W6VA3	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
613	DriftKey FLAT FOR Core Bits 956000..956006	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
62	STATOR 120v DH24PF	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
63	BALL BEARING G10SR SP18SA	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
64	HOUSING DH24PF	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
654	SDS+AnchorSettingAdapter B W5/16 DH20DV DH24	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
657	1/2"SDS+HAMMER DRILL CHUCK SET	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
659	RUBBER CAP DH20DV DH24PE	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
66	GRIP COVER DH24PF	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
67	INTERNAL WIRE (B)G DH24PE/PF	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
670	DRILL CHUCK 13VLRB-D 1/2" D13	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
672	FLAT HD SCREW (A) LEFT HAND	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
68	PUSHING BUTTON DH22PB DH24PB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
7	WASHER (B) DH24PE/PC/VD/PB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
70	TUBE(D) C15FB C10FS C8FB2	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
71	BRUSH HOLDER CJ110MV D13VB2	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
72	Carbon Brush AUTO (pair) D13V	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
73	TAP SCREW w/FLANGE D4x20 C7SB	Add to Cart 3 Required Quantity Required Quantity Required popup block Please enter a quantity of "3" or more to proceed.
74	HANDLE COVER DH24PF	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
75	INTERNAL WIRE (B)H DH24PE/PF	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
76	SWITCH (A) DH22PB DH24PB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
77	TAP SCREW w/FLANGE D4x16 C8	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
78	CORD CLIP M12V2 M12SA2 C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
79	CORD ARMOR D8.8 D10VH SV13YB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
8	RETAINING RING DH24PF D20SHAFT	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
80	SCREW W/FLANGE D4x25 CR13VA	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
81	CORD, ELECTRICAL, 2 WIRES	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
9	SCREWw/FLANGE D5x35 G18SE2/3	Add to Cart 4 Required Quantity Required Quantity Required popup block Please enter a quantity of "4" or more to proceed.
