Parts for:

Hitachi F30A Hitachi Planer

Search Parts:

Search Parts

Only common repair parts are available for purchase. If a part does not have add to cart button it's not available for purchase on Toolbarn. Please do not contact customer service for availability on these items.

Please scroll left/right table for more info!

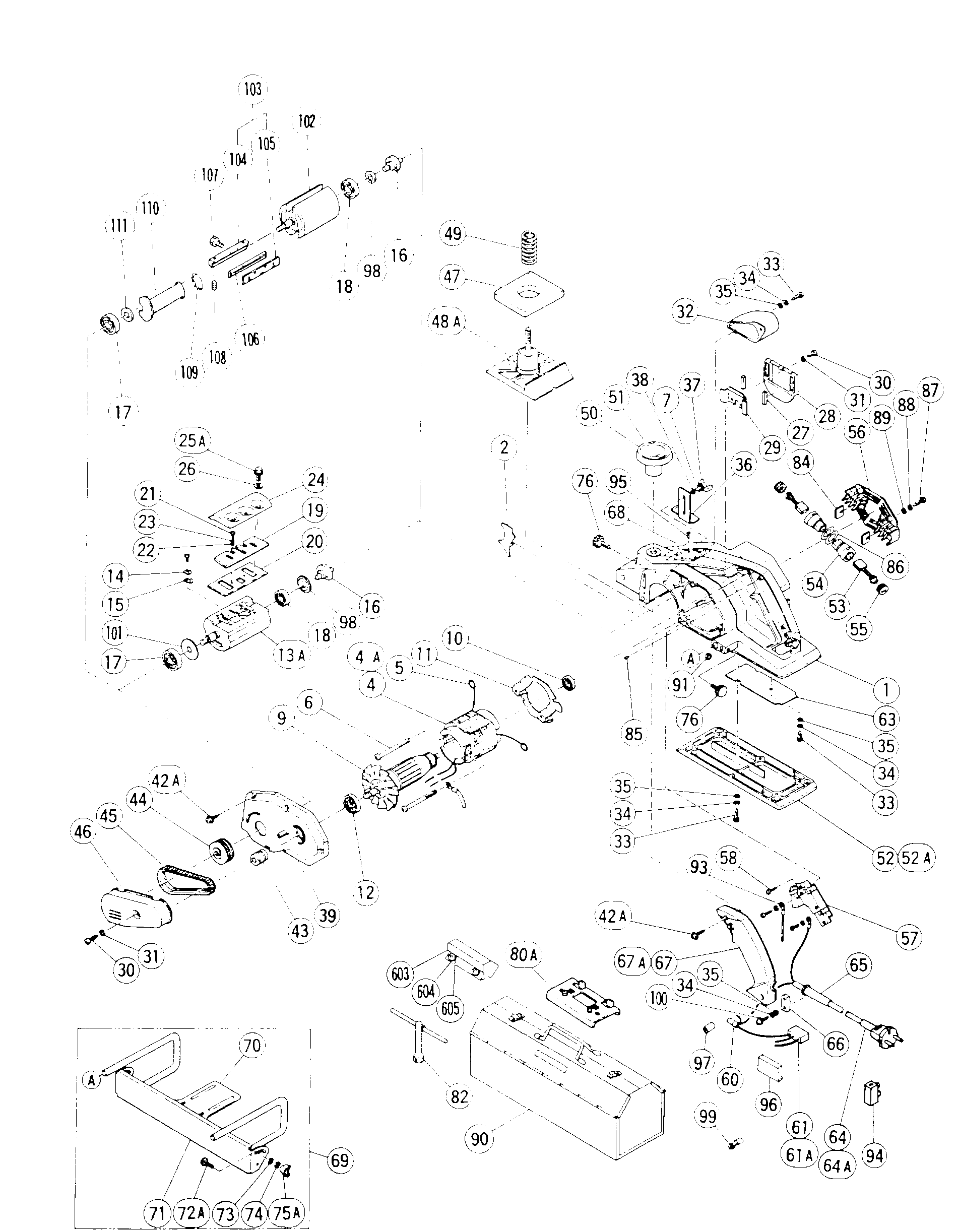

Ref	Description	Qty
1	HOUSING ASSY F30A * Obsolete *	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
2	FAN GUIDE (A) F30A P30	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
5	BRUSH TERMINAL C7SC CR10V SB75	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
6	TAPPING SCREW D5X65 DH38YE C8	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
7	SPRING WASHER M5 C10FC	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
10	BALL BEARING G10SR SP18SA	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
12	BALL BEARING 6200VVCMPS2L	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
13	Cutter Block Assy for F30A	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
14	Holder Spring for F20A, F30A, P30 * Obsolete *	Add to Cart 4 Required Quantity Required Quantity Required popup block Please enter a quantity of "4" or more to proceed.
15	Guard Plate (A) for F50A, F30A, P30 * Obsolete *	Add to Cart 4 Required Quantity Required Quantity Required popup block Please enter a quantity of "4" or more to proceed.
16	Shaft (B) for FU20, F30A ,P20SA, P30	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
17	BALL BEARING SEALED CMPS2L H85	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
18	BALL BEARING 629T12DDC3PS2-L	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
19	PLANER High-Speed Steel BLADE 3-5/8" 1pair FOR F30A * Obsolete *	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
19	PLANER Tungeten-Carbide BLADE 3-5/8" 1pair FOR F30A	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
20	BACK METAL F30A P30	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
21	MACHINE SCREW M4x8 (10pc) C7SB	Add to Cart 4 Required Quantity Required Quantity Required popup block Please enter a quantity of "4" or more to proceed.
22	WASHER M4 (10pc) DH40MA/MB	Add to Cart 4 Required Quantity Required Quantity Required popup block Please enter a quantity of "4" or more to proceed.
23	SPRING WASHER M4 (10pc)	Add to Cart 4 Required Quantity Required Quantity Required popup block Please enter a quantity of "4" or more to proceed.
25	M7 x 15 Bolt with Washer for F30A, P30	Add to Cart 6 Required Quantity Required Quantity Required popup block Please enter a quantity of "6" or more to proceed.
26	WASHER F1000A	Add to Cart 6 Required Quantity Required Quantity Required popup block Please enter a quantity of "6" or more to proceed.
28	BLADE COVER F30A * Obsolete *	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
30	SCREW M4x14 (10pc) CC12Y H85	Add to Cart 3 Required Quantity Required Quantity Required popup block Please enter a quantity of "3" or more to proceed.
32	CHIP COVER F30A P30 * Obsolete *	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
33	TAPPING SCREW D4x16 P20SB/DA	Add to Cart 9 Required Quantity Required Quantity Required popup block Please enter a quantity of "9" or more to proceed.
37	WING BOLT M5x6 (10 PCS) CB75F	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
38	WASHER M5 D13 D13M 10PS NT65A3	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
42	SCREW W/FLANGE TR12/D13V/W6VB	Add to Cart 7 Required Quantity Required Quantity Required popup block Please enter a quantity of "7" or more to proceed.
43	Pulley (A) for F30A, P30	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
44	Pulley (B) for F30A, P30	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
45	BELT SB75(B) SB75 SB10T SB8T	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
46	BELT COVER F30A	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
47	Rubber Packing for F30A, P30 * Obsolete *	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
48	Front Base for F30A, P30 * Obsolete *	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
49	SPRING P20SB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
50	KNOB P20SB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
51	Scale (Inch) for F30A	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
52	REAR BASE F30A P30 * Obsolete *	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
53	Carbon Brush For C8FB2 WH22 (PAIR)	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
54	BRUSH HOLDER CR13VA/V CM4SB2	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
55	BRUSH CAP DH40FA/FB/MA/MB/SB75	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
56	Tail Cover for F30A, P30	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
57	SWITCH 2P PillarType G13SC	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
57	SWITCH (B) 2P ScrewType SP18V	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
57	2P Pillar Type Trigger Switch	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
58	TAPPING SCREW D4x12 M12V	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
60	CONNECTOR 50091 C8FB2 10PCS	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
61	NOISE SUPPRESSOR CR13VA CJ110V	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
64	CORD, ELECTRICAL, 2 WIRES	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
65	CORD ARMOR D8.2 P20SB D10VC/V1	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
66	CORD CLIP M12V2 M12SA2 C8FB2	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
76	STOPPER SCREW M5x14 P20SB	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
82	Box Wrench 10mm for C10FS C8FB2 C6DC P20SB (ACC)	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
85	BEARING LOCK CR10V CR12V D13	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
87	TAPPING SCREW D4X20 SAT180	Add to Cart 4 Required Quantity Required Quantity Required popup block Please enter a quantity of "4" or more to proceed.
91	Hex Nut M5 (10pc) NR83A NV50A1	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
94	PILLAR TERMINAL C7BD C7SB C8	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
95	RIVET D2.5x3.2 (10pc) C8FB2	Add to Cart 4 Required Quantity Required Quantity Required popup block Please enter a quantity of "4" or more to proceed.
96	SUPPORT H65 H85 SV12SD SV12V	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
97	TUBE(D) C15FB C10FS C8FB2	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
98	WASHER (A) CM4SB2 DH18DL F30A	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
99	TERMINAL FOR NOISE SUPPRESSOR	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
99	Terminal for D13, M12V, WH22 * Obsolete *	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
100	TAP SCREW w/FLANGE D4x16 C8	Add to Cart 2 Required Quantity Required Quantity Required popup block Please enter a quantity of "2" or more to proceed.
101	BEARING WASHER H65 H90SB	Add to Cart 1 Required Quantity Required Quantity Required popup block Please enter a quantity of "1" or more to proceed.
108	HEX SOCKET SET SCREW M5x8 C7SB	Add to Cart 4 Required Quantity Required Quantity Required popup block Please enter a quantity of "4" or more to proceed.
