Search Parts:
Only common repair parts are available for purchase. If a part does not have add to cart button it's not available for purchase on Toolbarn. Please do not contact customer service for availability on these items.

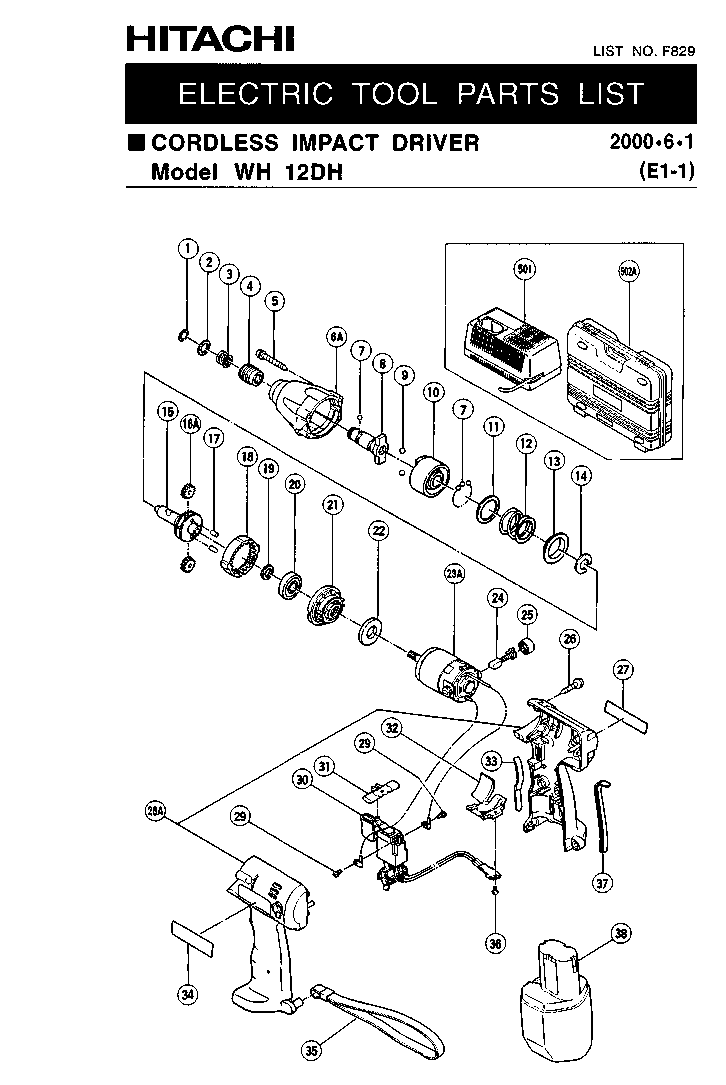

| Ref | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | RETAINING RING DB3DL WH12DAF2 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 2 | WASHER (D) WH14DMR WH18DL/DMR |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 3 | GUIDE SPRING WH12DH/WH8DH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 4 | GUIDE SLEEVE WH12DH/WH8DH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 5 | SCREW W/WASHER D4X30 BLACK |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| 6 | HAMMER CASE WH8DH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 7 | STEEL BALL D3.5 WH12DM |
26 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "26" or more to proceed. |
||
| 8 | ANVIL ( B) WH12DH WH8DH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 9 | STEEL BALL D5.556 DH24PE 10PS |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 10 | HAMMER WH12DH WR12DH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 11 | WASHER (J) WH/WR12DH WH8DH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 12 | SPRING WH12DH/WR12DH WH12DAF |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 13 | WASHER (S) WH12DH/WR12DH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 14 | STOPPER WH12DH/WR12DH/WH8DH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 15 | SPINDLE WH12DH/WR12DH/WH8DH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 16 | IDLE GEAR SET WH/R12,WH/R8 (PACK OF 2) |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 17 | NEEDLE ROLLER WH12DH WH8DC2 * Obsolete * |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 18 | RING GEAR WH12DH/WR12DH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 19 | WASHER (C) WR12DH WH12DC/DH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 20 | BALL BEARING 6001VVCMPS2L |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 21 | INNER COVER WH12DH/WR12DH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 22 | DAMPER WH8DC2/8D2 WH/WR12DH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 23 | MOTOR WH12DH/WR12DH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 24 | Carbon Brush 5X6X11.5 (pair) WH/WR18DL |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 25 | BRUSH CAP WH12DH/WR12DH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 26 | SCREW W/FLANGE D4x20 WR12DM2 |
7 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "7" or more to proceed. |
||
| 28 | HOUSING WH12DH, (A) & (B) SET * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 29 | MACHINE SCREW W/SP WASHER M3x5 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 30 | DC SPEED CONTROL SWITCH WH8DC2 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 31 | PUSHING BUTTON WH8DH WR8DH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 32 | FIN ASSY WH8DH WR8DH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 33 | GRIP (F) WH12DH WR12DH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 35 | STRAP DN10DYK DS10DV2/ DS13DV2 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 36 | S. TIGHT SCREW D3.5x6 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 37 | GRIP (R) WH12DH WR12DH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 38 | BATTERY EB12B 12V Ni-Cd 2.0Ah * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
