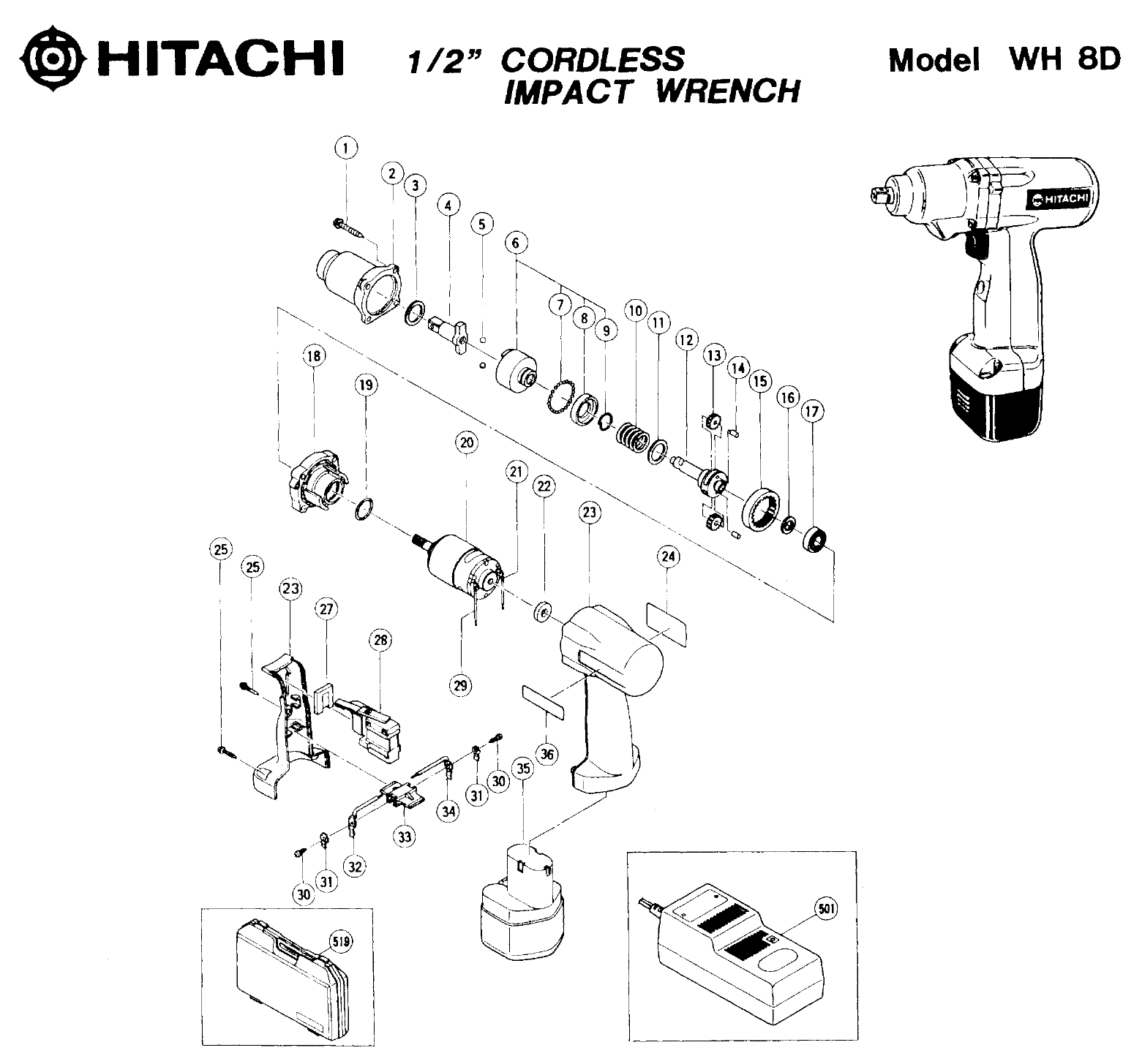

| Ref | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | TAPPING SCREW W/WASHER D4x30 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| 10 | Spring for WH8DA1, WH8D1 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 11 | Washer (B) WH8DA1, WD8D1 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 12 | Spindle for WH8DA1, WH8D1 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 14 | NEEDLE ROLLER WH12DH WH8DC2 * Obsolete * |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 15 | Ring Gear for WH8DA1, WH8D1 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 16 | WASHER (C) WR12DH WH12DC/DH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 17 | BALL BEARING 6001CM WH8D1 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 19 | O-RING VB16Y WH8DA1 WH8D1 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 2 | Hammer Case for WH8DA1, WH8D1 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 21 | Internal Wire for WH8DA1, WH8D1 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 22 | RUBBER RING WH8DA1/WH8D1 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 23 | HOUSING SET WH8D WH8DA1 WH8D1 * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 28 | SWITCH 2P PlugInType D10DH/DD * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 29 | Internal Wire (B) for WH8DA1, WH8D1 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 3 | Washer (A) for WH12DC |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 30 | TAP SCREW D4x10 DH50SB C7D |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 31 | HOLDER SPRING WH8DC C6DC |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 32 | TERMINAL WH8D1 WH8DA1 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 33 | Terminal Piece for WH8DA1, WH8D1 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 34 | TERMINAL WH8D1 WH8DA1 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 35 | BATTERY EB9B 9.6V Ni-Cd 2.0Ah |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 36 | HITACHI LABEL WH8DA1/WH8D1 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 4 | Anvil (A) for WH8D1 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 5 | STEEL BALL D5.556 DH24PE 10PS |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||

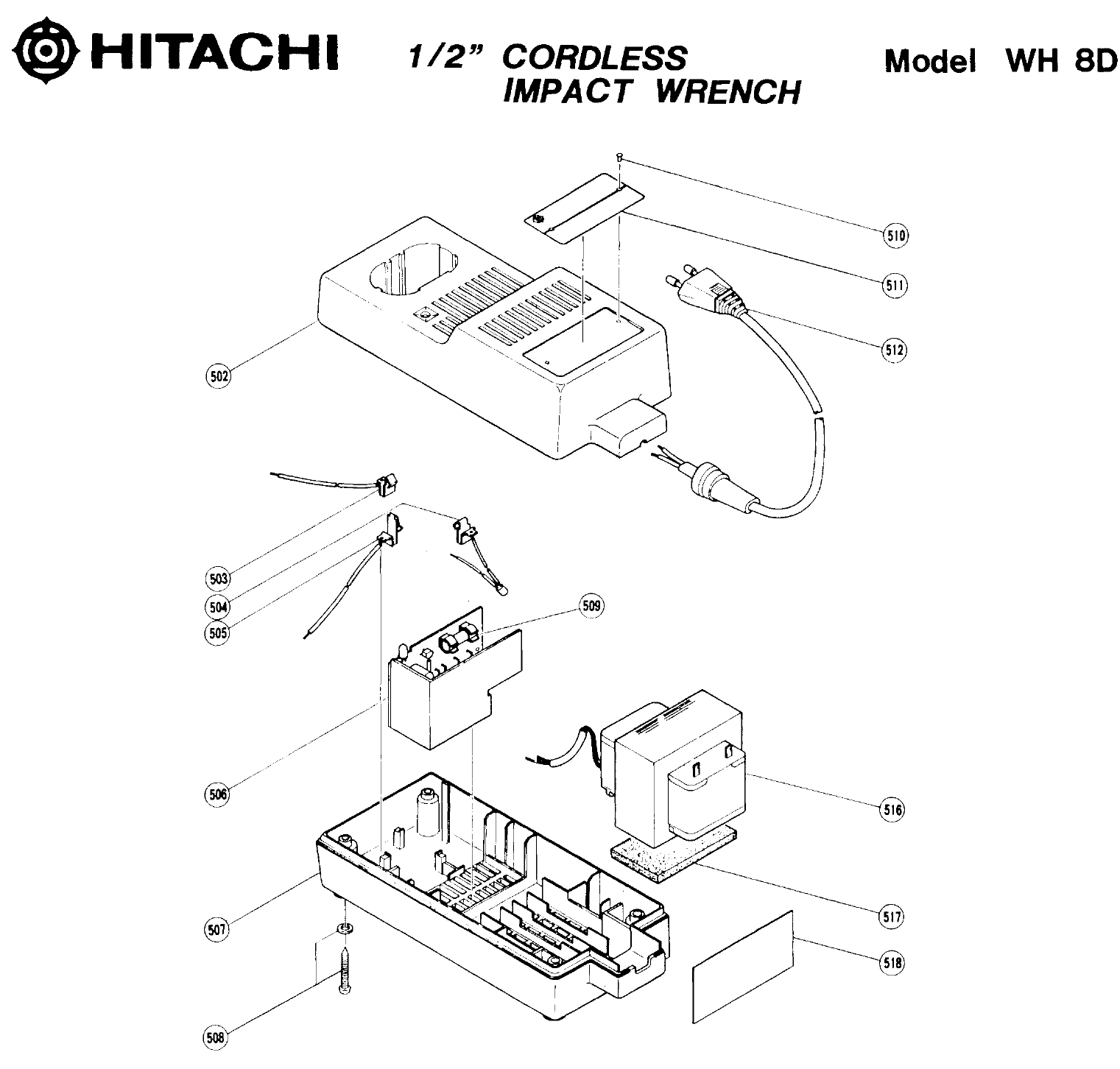

| 502 | CASE (A) D10DD |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 503 | Terminal (A) Assy for D10DD |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 504 | Terminal Fuse for D10DD |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 505 | Terminal (B) for D10DD |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 508 | TAPP.SCREWw/WASHER D4x20 D13 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| 509 | FUSE (5A) DV10DV UC12Y WH12D |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 510 | RIVET D2.5x4.8 C15FB (10 Pack) |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 516 | Transformer 120V for UC9 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 6 | Hammer Assy for WH8DA1, WH8D1 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 7 | STEEL BALL D3.175 WH16 |
21 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "21" or more to proceed. |
||
| 8 | Spring Sheet for WH8DA1, WH8D11 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 9 | Retaining Ring for WH8D1, WH8DA1 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
