Search Parts:
Only common repair parts are available for purchase. If a part does not have add to cart button it's not available for purchase on Toolbarn. Please do not contact customer service for availability on these items.
| Ref | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 108 | ID LABEL FOR 2-TON |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||

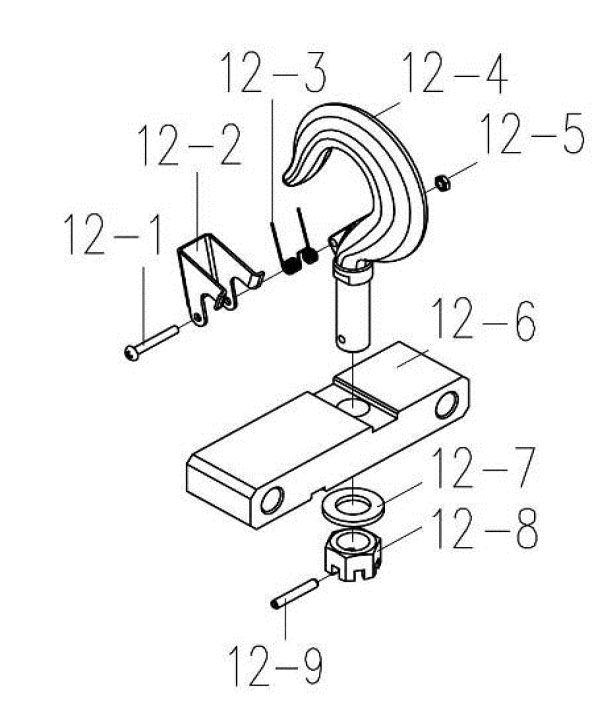

| 12 | TOP HOOK ASSEMBLY FOR 1-TON |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 25 | STOP RING (62/67.6) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 30-3 | MIDDLE GEAR (1 PH) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 4 | ROTOR ASSEMBLY (3 PH SINGLE SPEED) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 41-10 | BRAKE COIL (3 PH) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 41-4 | BRAKE SPRING (3 PH) |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| 44 | CAPACITY LABEL FOR 2-TON |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 97 | MAG CONTACTOR 3PH |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||

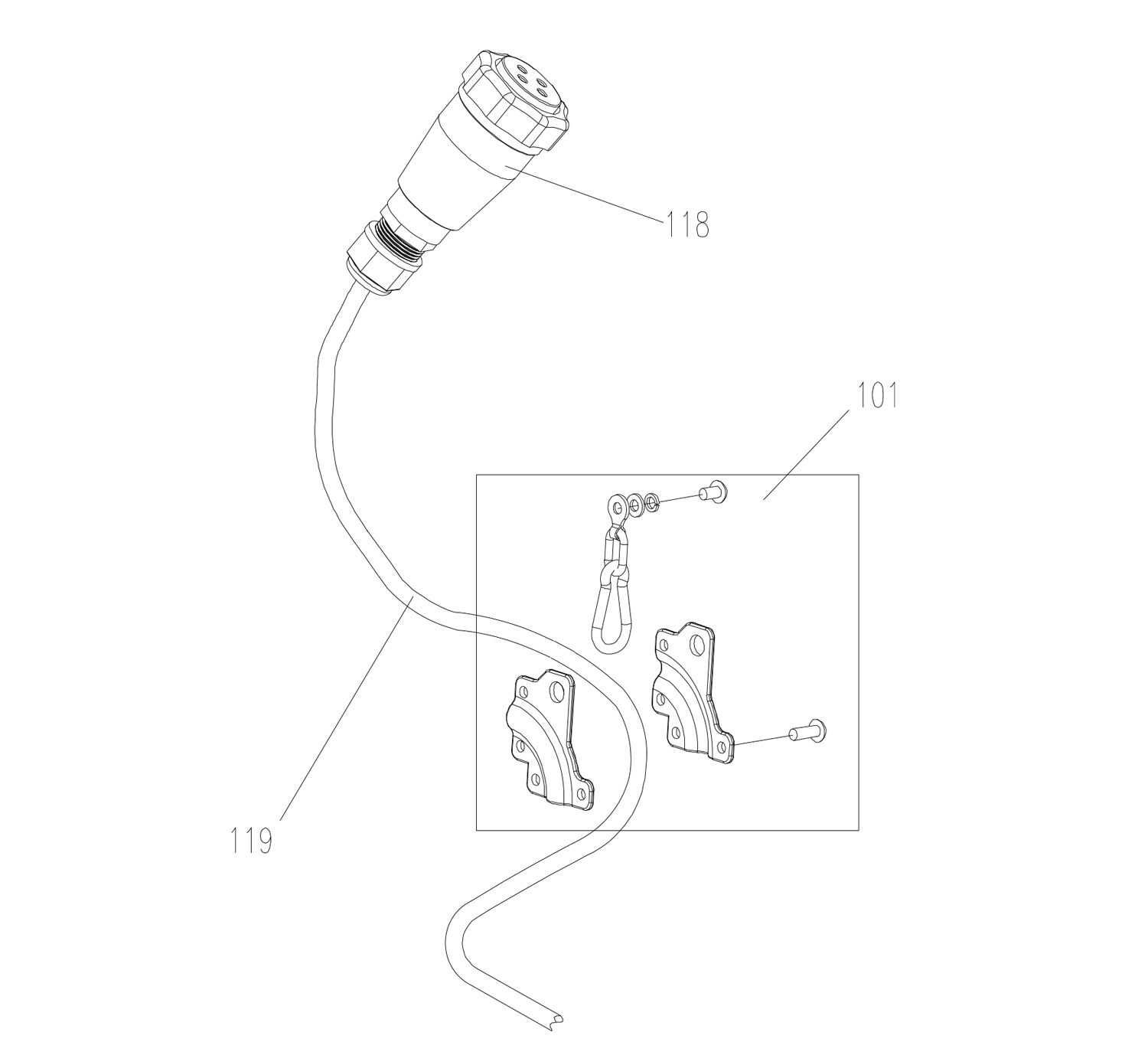

| Fig 1 - 101, Fig 3 - 101 | CORD HOLDER ASSEMBLY |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 118 | MALE PLUG 4P |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 119 | POWER CORD (1 PH) TEXT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 119 | POWER CORD (3 PH) (TEXT) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||

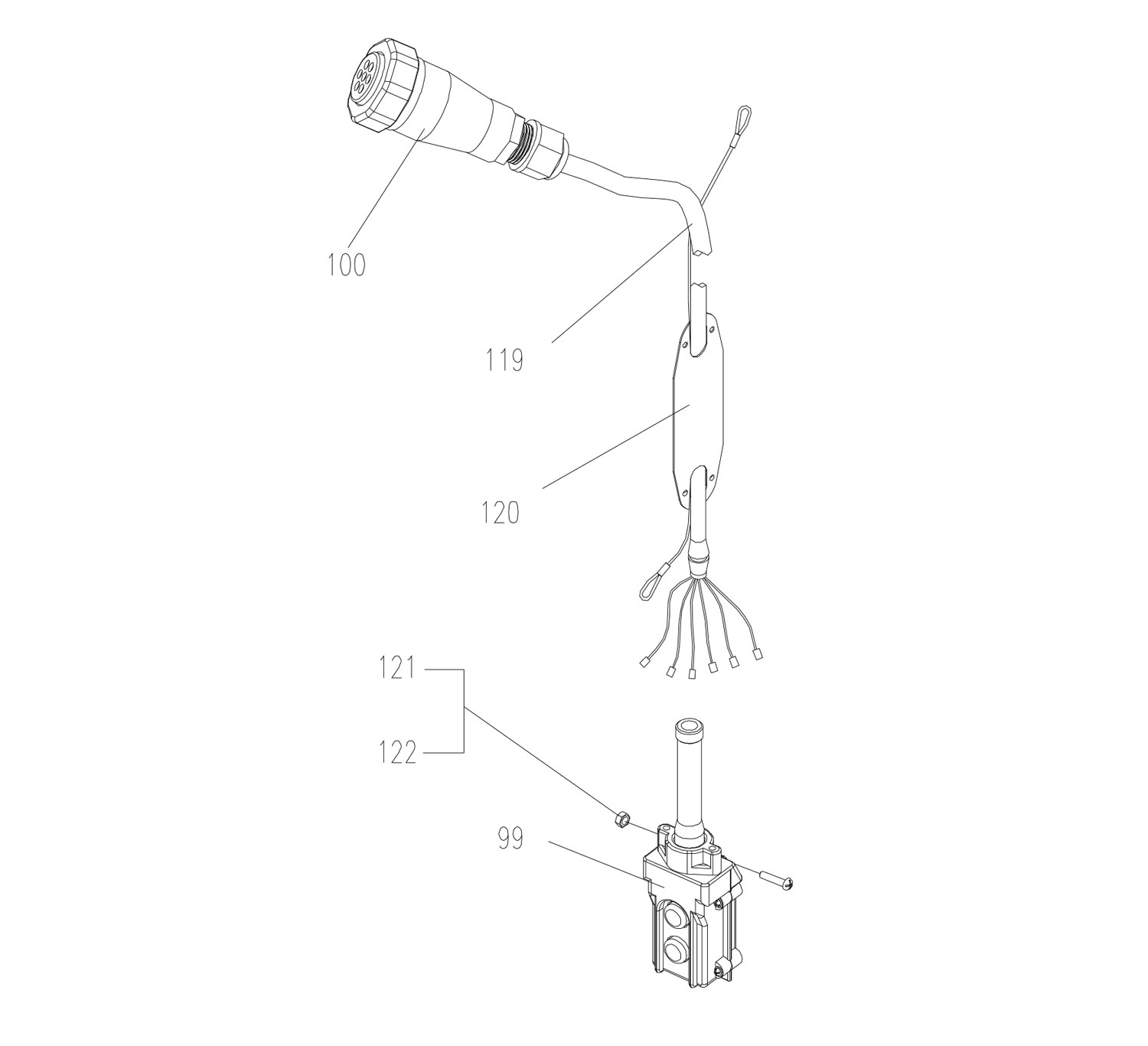

| Fig 2 - 99, Fig 3 - 99 | PUSHBUTTON CNTRL (1 PH/3 PH,SINGLE SPD) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||

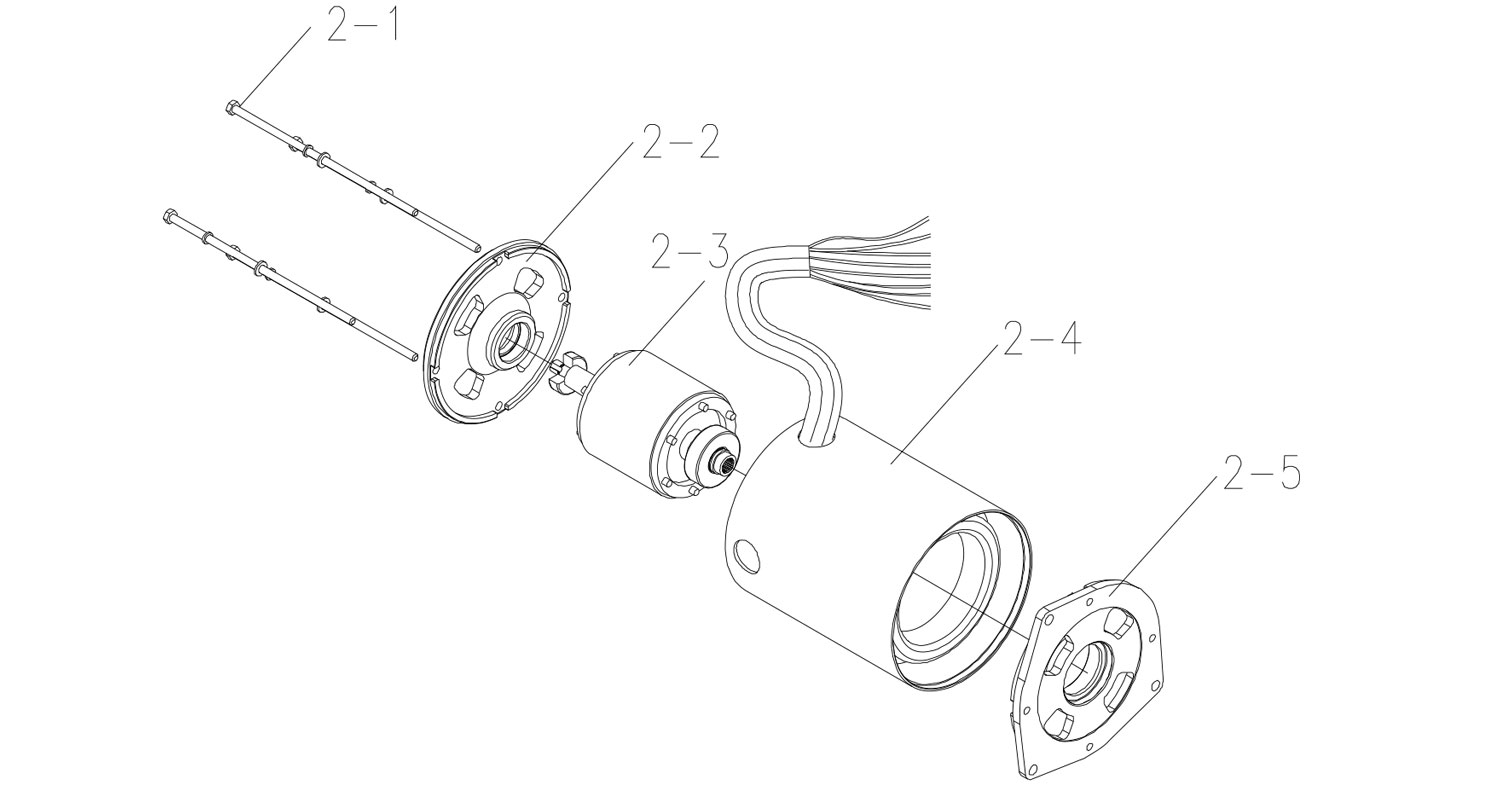

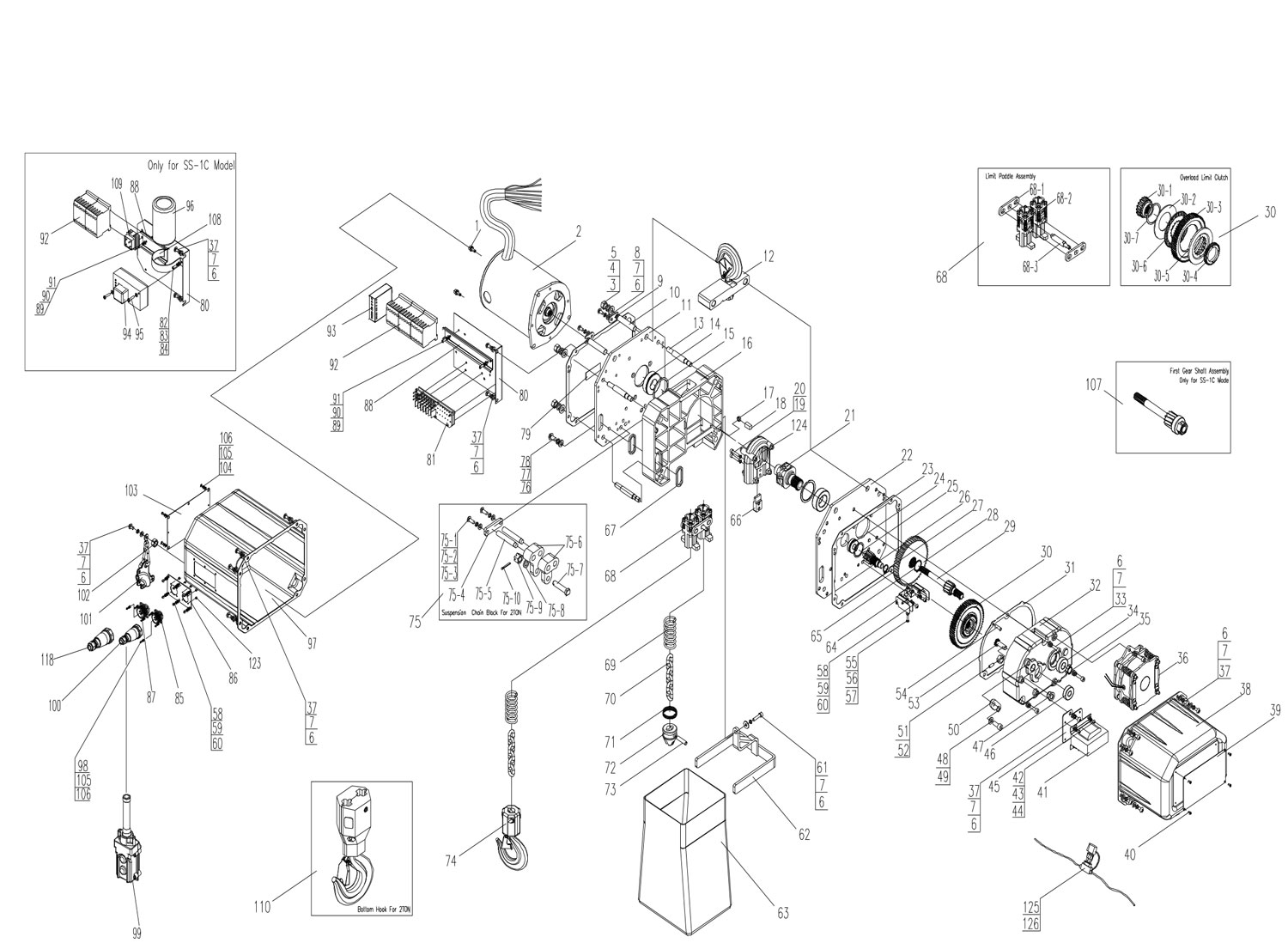

| Fig 3 - 1, Fig 4 - 2 - 1 | MOTOR STAY BOLT |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 3 - 2 | n/a |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 3 | HEX NUT (M10) |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 3 - 4 | LOCK WASHER (10MM) |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 3 - 5 | PLAIN WASHER (10MM) |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 3 - 6, Fig 3 - 75 - 3 | PLAIN WASHER (6MM) |
30 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "30" or more to proceed. |
||
| Fig 3 - 7, Fig 3 - 75 - 2 | LOCK WASHER (6MM) |
30 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "30" or more to proceed. |
||
| Fig 3 - 8 | PHILLIPS PAN HD MACH SCREW (M6X12) |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 9 | STAY BOLT BLOCK FOR TOP HOOK ASSEMBLY |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 10 | STAY BOLT FOR TOP HOOK ASSEMBLY |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 11 | MOTOR SIDE PLATE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||

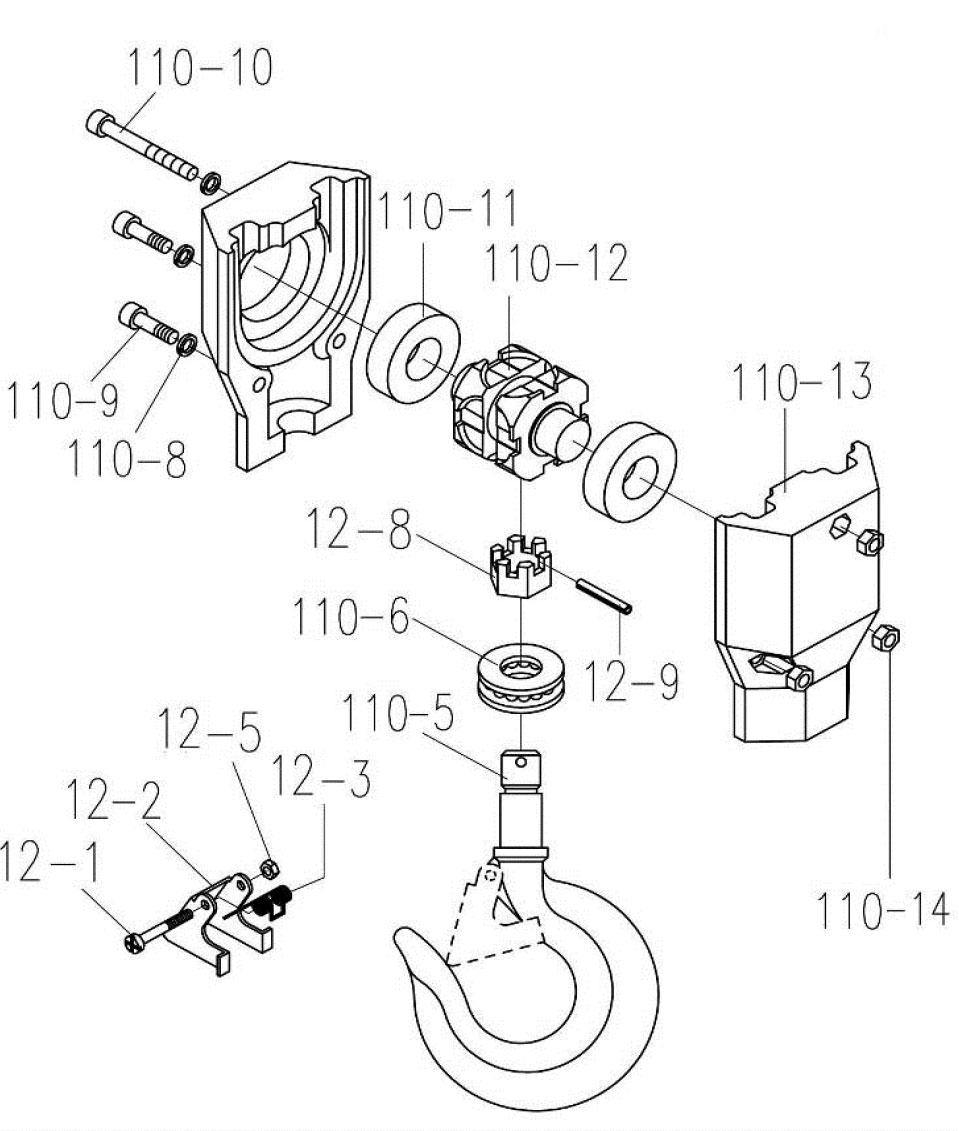

| Fig 3 - 12, Fig 6 - 12 | TOP HOOK ASSEMBLY FOR 2-TON |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 13 | STAY BOLT FOR MOTOR SIDE PLATE |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 3 - 14 | BALL BEARING WITH RETAINER (150207) |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 15 | STOP RING (72/78.8) |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 16 | SHEAVE COVER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||

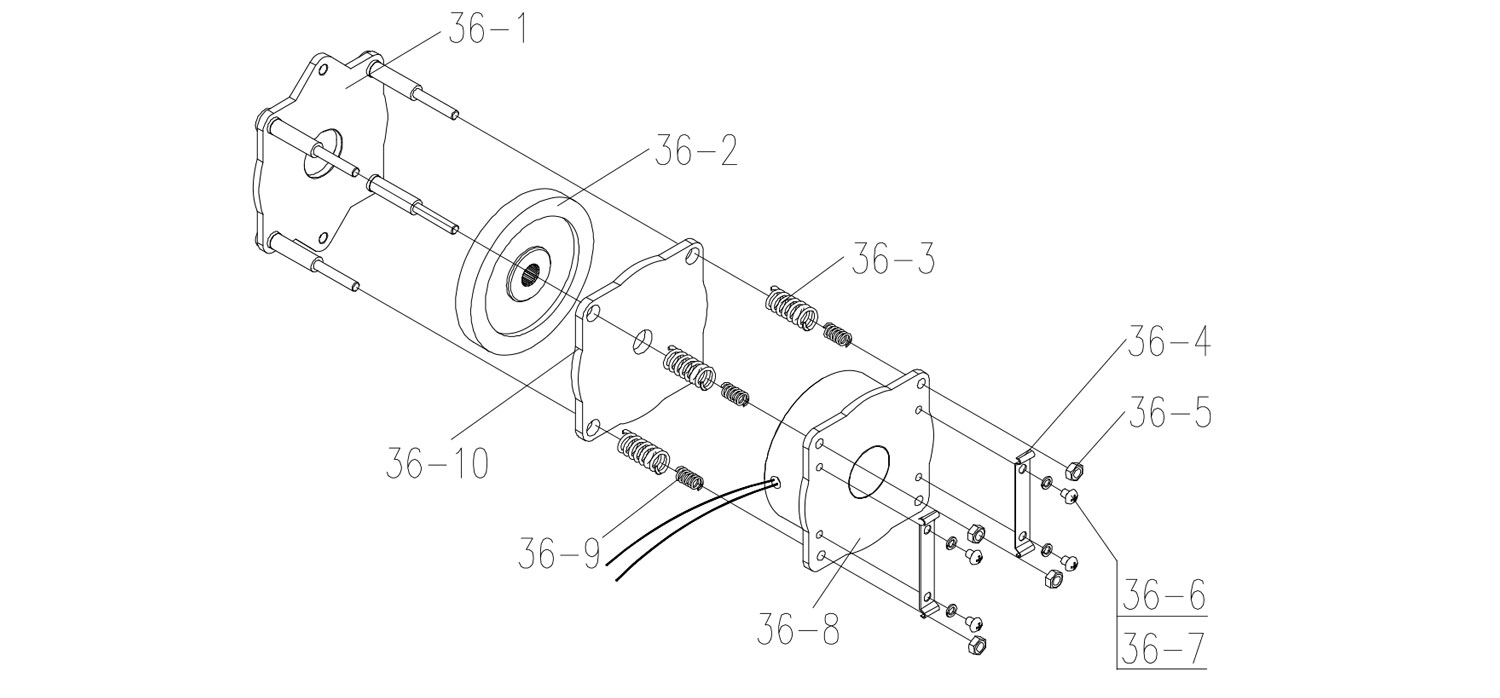

| Fig 3 - 17, Fig 5 - 36 - 5 | LOCK NUT (M8) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 18 | RUBBER PLUG |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 19 | SOCKET HEAD CAP SCREW (M6X25) |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 20 | LOCK WASHER (6MM) |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 21 | LIFT WHEEL |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 22 | GEAR SIDE PLATE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 23 | GEAR SIDE PLATE GASKET |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 24 | BALL BEARING WITH RETAINER (50403) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 26 | SECOND GEAR SHAFT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 27 | SNAP RING (20MM) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 28 | LIFT GEAR |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 29 | FIRST GEAR SHAFT (3 PH) |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 30 | OVERLOAD LIMIT CLUTCH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 30 - 1 | SPLINE SLEEVE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 30 - 2 | WING SPRING |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 30 - 3 | MIDDLE GEAR (3 PH) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 30 - 4 | ADJUST ROUND NUT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 30 - 5 | CLUTCH SUPPORT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 30 - 6 | FRICTION DISC |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 30 - 7 | ADJUST WASHER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 31 | GEAR CASE SEAL |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 32 | GEAR CASE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 33 | SOCKET HEAD CAP SCREW (M6X20) |
5 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "5" or more to proceed. |
||
| Fig 3 - 34 | 410BALL BEARING (180205KZ1) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 35 | SNAP RING (FOR 3 PH ONLY,25MM) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 37 | PHILLIPS PAN HD MACH SCREW (M6X10) |
20 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "20" or more to proceed. |
||
| Fig 3 - 38 | GEAR SIDE COVER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 39 | n/a |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 40 | SOCKET HEAD CAP SCREW (M3X6) |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 3 - 41 | DC BRAKE (3 PH) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 41 | TRANSFORMER 3PH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 42 | PHILLIPS PAN HD MACH SCREW (M4X6) |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 3 - 43, Fig 3 - 90 | LOCK WASHER M4 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 3 - 44, Fig 3 - 56, Fig 3 - 84, Fig 3 - 91 | FLAT WASHER M4 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 3 - 45 | TRANSFORMER BRACKET |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 46 | BALL BEARING (180203KZ1) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 47 | STEEL COLLAR |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 48, Fig 3 - 78 | FLAT WASHER M8 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 49 | SOCKET HEAD CAP SCREW (M8X20) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 50 | LOCK PLATE FOR CLUTCH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 51 | ROUND PIN |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 52 | ADJUST ROUND NUT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 53 | ADJUST SHAFT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 54 | ROUND PIN |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 55 | PHILLIPS PAN HD MACH SCREW (M4X16) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 57 | HEX NUT (M4) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 58 | PHILLIPS PAN HD MACH SCREW (M5X10) |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 3 - 59 | LOCK WASHER M5 |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 3 - 60 | FLAT WASHER M5 |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 3 - 61 | SOCKET HEAD CAP SCREW (M8X25) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 62 | CHAIN CONTAINER BRACKET |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 64 | LIMIT SWITCH SET |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 65 | SNAP RING (34MM) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 66 | BLOCK |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 67 | CABLE INPUT SEAL |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 68 | LIMIT PADDLE ASSEMBLY |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 68 - 1 | SIDE PLATE |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 68 - 2 | CHAIN GUIDE BLOCK |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 68 - 3 | CHAIN GUIDE SHAFT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 69 | LIMIT SPRING |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 70 | LOAD CHAIN 1T,2T,3T,5T (PER FT) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 71 | RETAINER RING |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 72 | CHAIN STOP |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 73 | PIN |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 75 | SUSPENSION CHAIN BLOCK (2-TON) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 75 | COVER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 75 | SHAFT |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 75 - 1 | PHILLIPS PAN HD MACH SCREW (M6X16) |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 75 - 10 | C. PIN |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 75 - 6 | CHAIN HOLDER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 75 - 8 | n/a |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 75 - 9 | SLOTTED HEX NUT (M8) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 75-7 | PIN |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 76 | PHILLIPS PAN HD MACH SCREW (M8X16) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 77, Fig 7 - 110 - 8 | LOCK WASHER (8MM) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 79 | MOTOR COVER PACKING |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 80 | ELECTRIC COMPONENT BOARD (3 PH) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 81 | VOLTS CONVERSION (FOR 3 PH ONLY) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 85 | FEMALE CONNECTOR 7P |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 86 | QUICK CONNECTOR BOARD |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 87 | FEMALE CONNECTOR 4P |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 89 | MACH SCREW PAN HD PHILLIPS M4X8 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 92 | MAG CONTACTOR 3PH |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 93 | CONTACTOR HOLDER (3 PH) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 93 | REVERSE PHASE INSPECTOR (3 PH ONLY) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 95 | MACH SCREW, PAN HD, M4X35 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 97 | MOTOR SIDE COVER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 98 | n/a |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 4 - 2 - 2 | MOTOR BRACKET (3 PH) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 2 - 4 | MOTOR CASE ASSEMBLY (3 PH,SINGLE SPEED) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 2 - 5 | MOTOR RIGHT-END COVER (3PH) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 36 - 10 | BRAKE ARMATURE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 36 - 2 | FRICTION PAD (3 PH) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 36 - 4 | LOCKING PLATE |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 5 - 36 - 6 | PAN HEAD SCREW (M5X6) |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 5 - 36 - 7 | LOCK WASHER (5MM) |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 5 - 36 - 9 | BRAKE SPRING |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 6 - 12 - 1, Fig 7 - 12 - 1 | PHILLIPS PAN HD MACH SCREW (M4X40) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 12 - 2, Fig 7 - 12 - 2 | HOOK LATCH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 12 - 3, Fig 7 - 12 - 3 | LATCH SPRING |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 12 - 4 | TOP HOOK |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 12 - 5, Fig 7 - 12 - 5 | LOCK NUT (M4) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 12 - 6 | CONNECTING BAR |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 12 - 7 | PLAIN WASHER (20MM) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 12 - 8, Fig 7 - 12 - 8 | SLOTTED HEX NUT (M20) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 12 - 9, Fig 7 - 12 - 9 | ROLL PIN (4X30MM) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 7 - 12 - 0 | HOOK LATCH ASSY (#17-1,17-2,17-3,17-5) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 100, Fig 3 - 100 | MALE PLUG 7P |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 119 | PUSHBUTTON CORD (PER FT) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 120 | CAUTION TAG |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 121 | PHILLIPS PAN HD MACH SCREW (M4X25) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 122 | HEX NUT NYLON LOCK M4 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 102 | LOCKNUT (M6) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 103 | n/a |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 104 | PHILLIPS PAN HD MACH SCREW (M3X6) |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 3 - 105 | LOCK WASHER (3MM) |
12 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "12" or more to proceed. |
||
| Fig 3 - 106 | PLAIN WASHER (3MM) |
12 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "12" or more to proceed. |
||
| Fig 3 - 110, Fig 7 - 110 - 11 | BALL BEARING (6305ZZ) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 123 | LOCK NUT M3 |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 3 - 124 | CHAIN GUIDE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 125 | FUSE 2A |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 126 | FUSE COVER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 7 - 110 | BOTTOM HOOK ASSEMBLY (2-TON) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 7 - 110 - 10 | SOCKET HEAD CAP SCREW (M8X65) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 7 - 110 - 12 | SHEAVE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 7 - 110 - 13 | BOTTOM HOOK HOUSING |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 7 - 110 - 14 | LOCK NUT (M8) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 7 - 110 - 5 | BOTTOM HOOK |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 7 - 110 - 6 | THRUST BALL BEARING (8204) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 7 - 110 - 9 | SOCKET HEAD CAP SCREW (M8X25) |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
