Search Parts:
Only common repair parts are available for purchase. If a part does not have add to cart button it's not available for purchase on Toolbarn. Please do not contact customer service for availability on these items.
| Ref | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 2 BUTTON CONTROL PENDANT 15' LIFT HOIST |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
|||
| Fig 1 - 37 | PHILLIPS PAN HD MACH SCREW (M6X10) |
20 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "20" or more to proceed. |
||

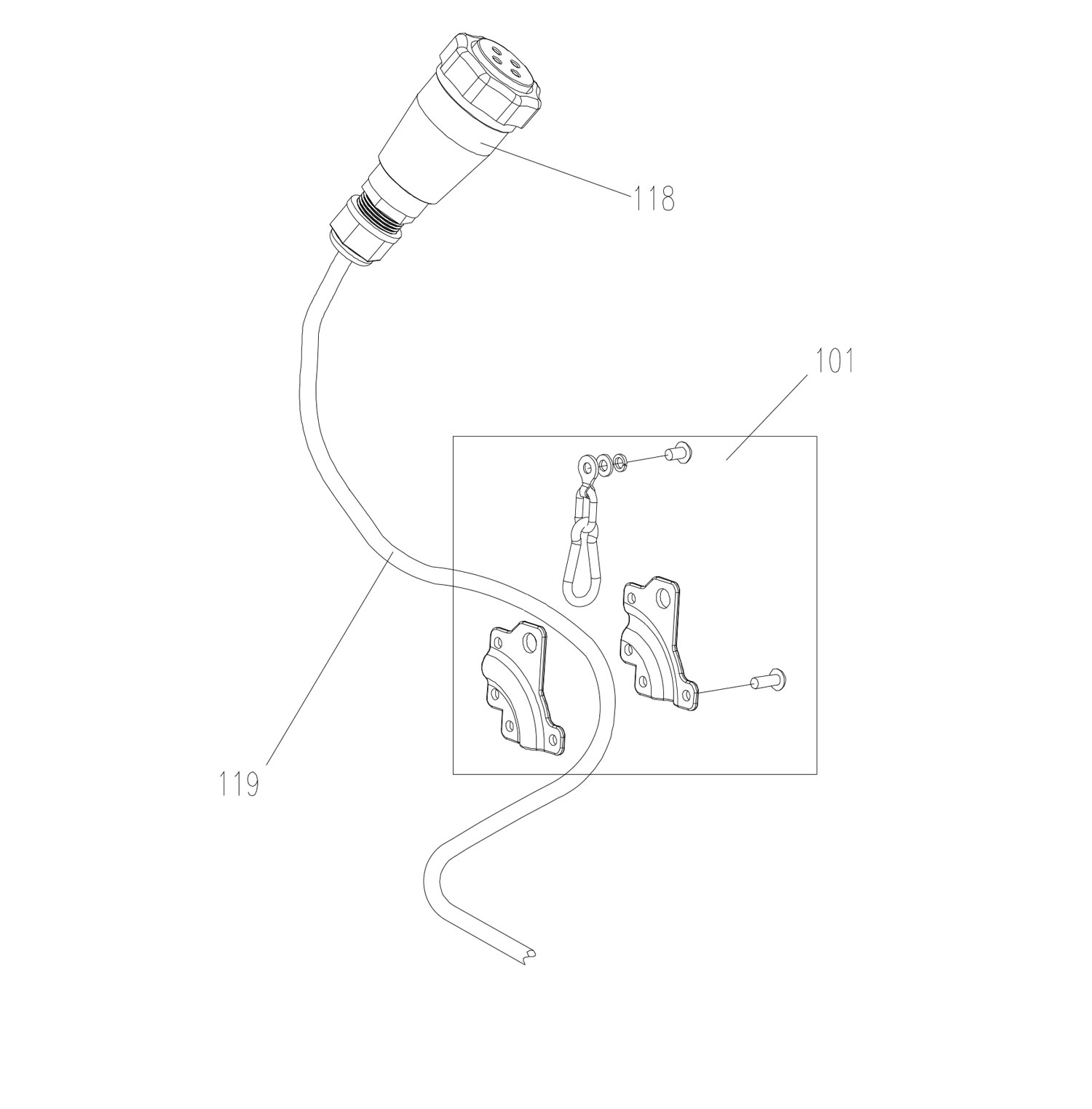

| Fig 1 - 101, Fig 3 - 106 | CORD HOLDER ASSEMBLY |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 118, Fig 3 - 118 | MALE PLUG 4P |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 119 | POWER CORD (1 PH) TEXT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||

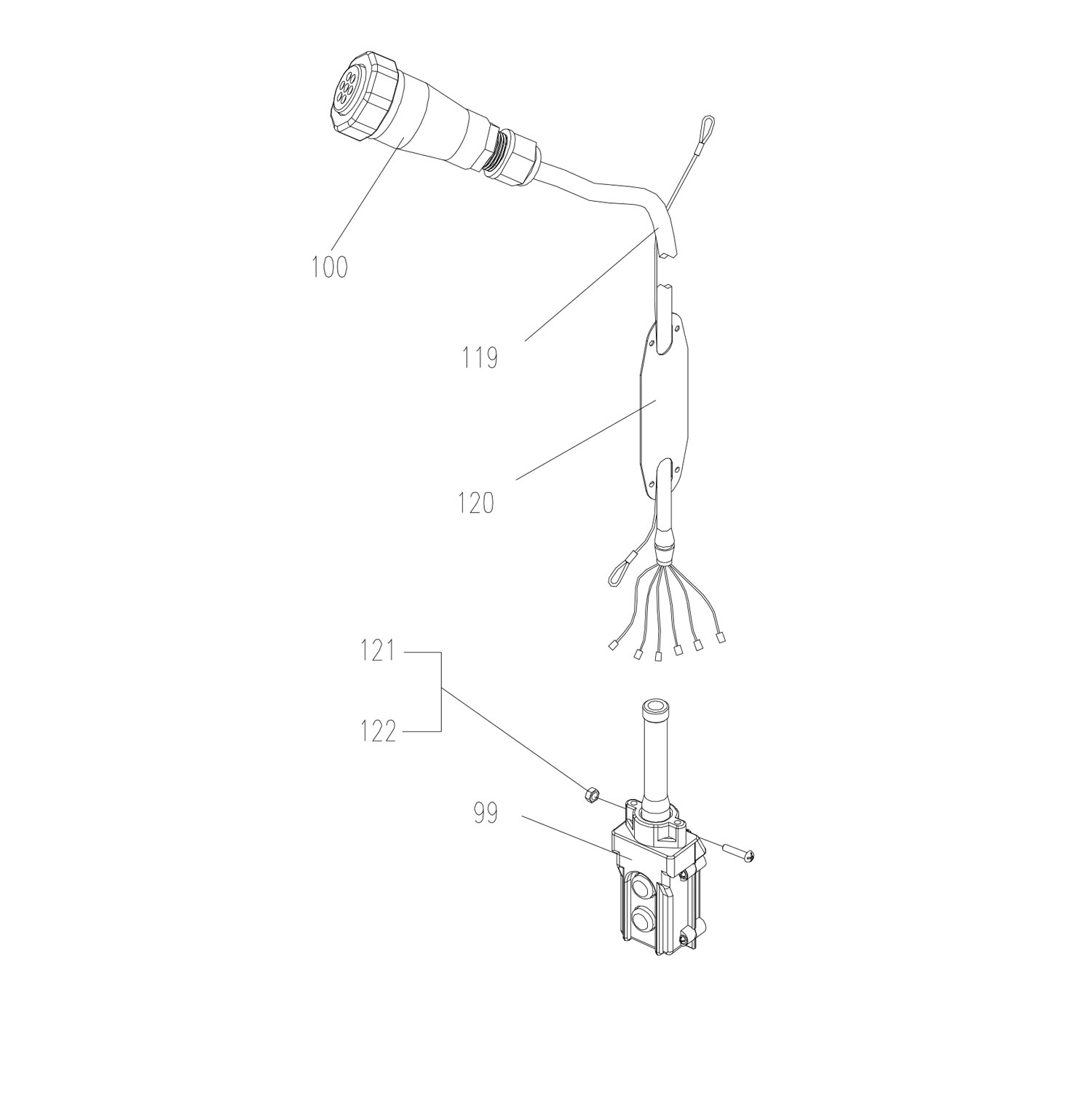

| Fig 2 - 99, Fig 3 - 104 | PUSHBUTTON CNTRL (1 PH/3 PH,SINGLE SPD) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||

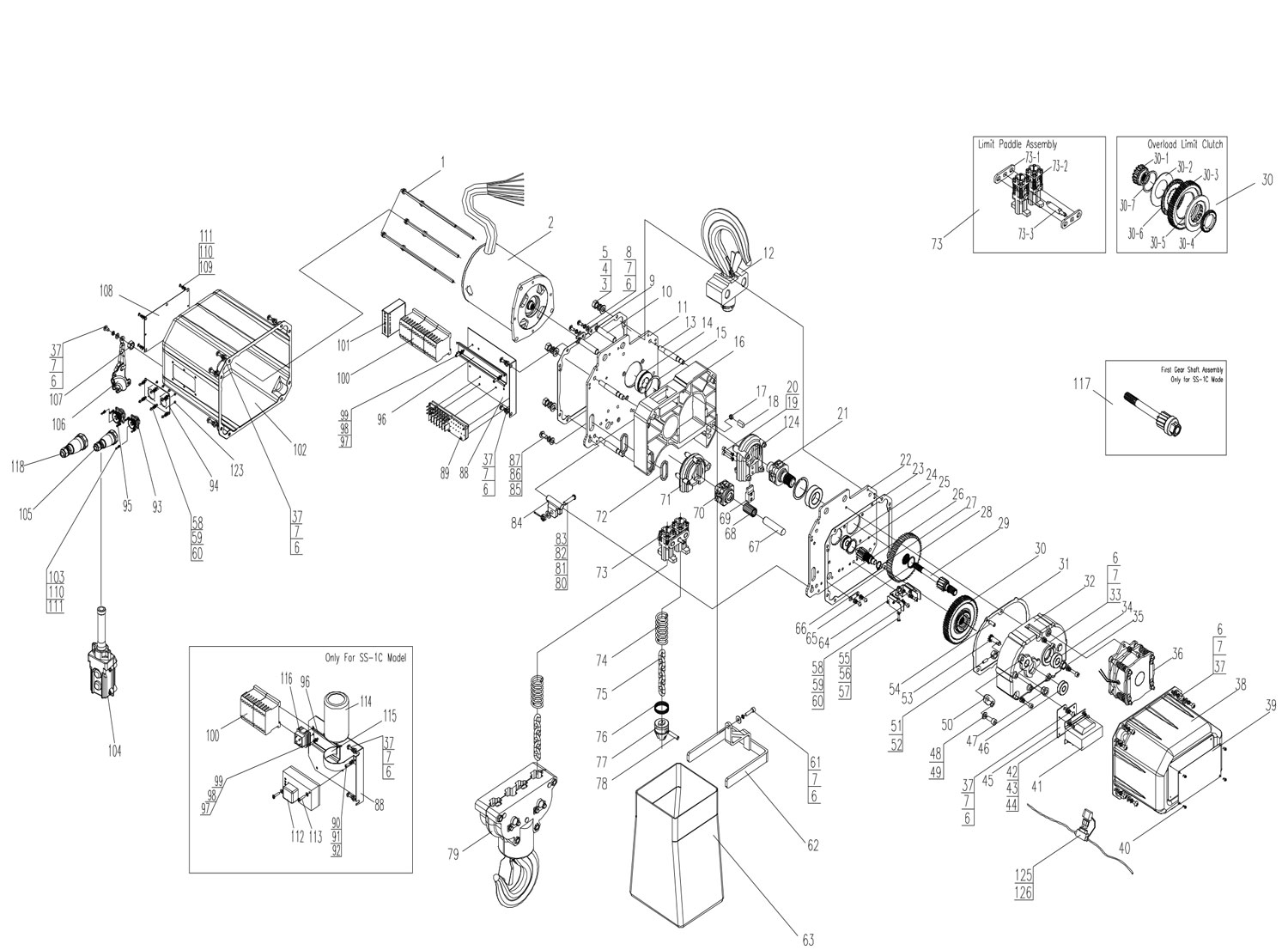

| Fig 3 - 1, Fig 4 - 2 - 1 | MOTOR STAY BOLT |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 3 - 2 | n/a |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 3 | HEX NUT (M10) |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 3 - 4, Fig 6 - 79 - 2 | LOCK WASHER (10MM) |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 3 - 5, Fig 3 - 81 | PLAIN WASHER (10MM) |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 3 - 6, Fig 6 - 79 - 16 | PLAIN WASHER (6MM) |
30 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "30" or more to proceed. |
||
| Fig 3 - 7, Fig 6 - 79 - 15 | LOCK WASHER (6MM) |
30 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "30" or more to proceed. |
||
| Fig 3 - 8 | PHILLIPS PAN HD MACH SCREW (M6X12) |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 9 | STAY BOLT BLOCK FOR TOP HOOK ASSEMBLY |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 10 | STAY BOLT FOR TOP HOOK ASSEMBLY |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 11 | MOTOR SIDE PLATE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||

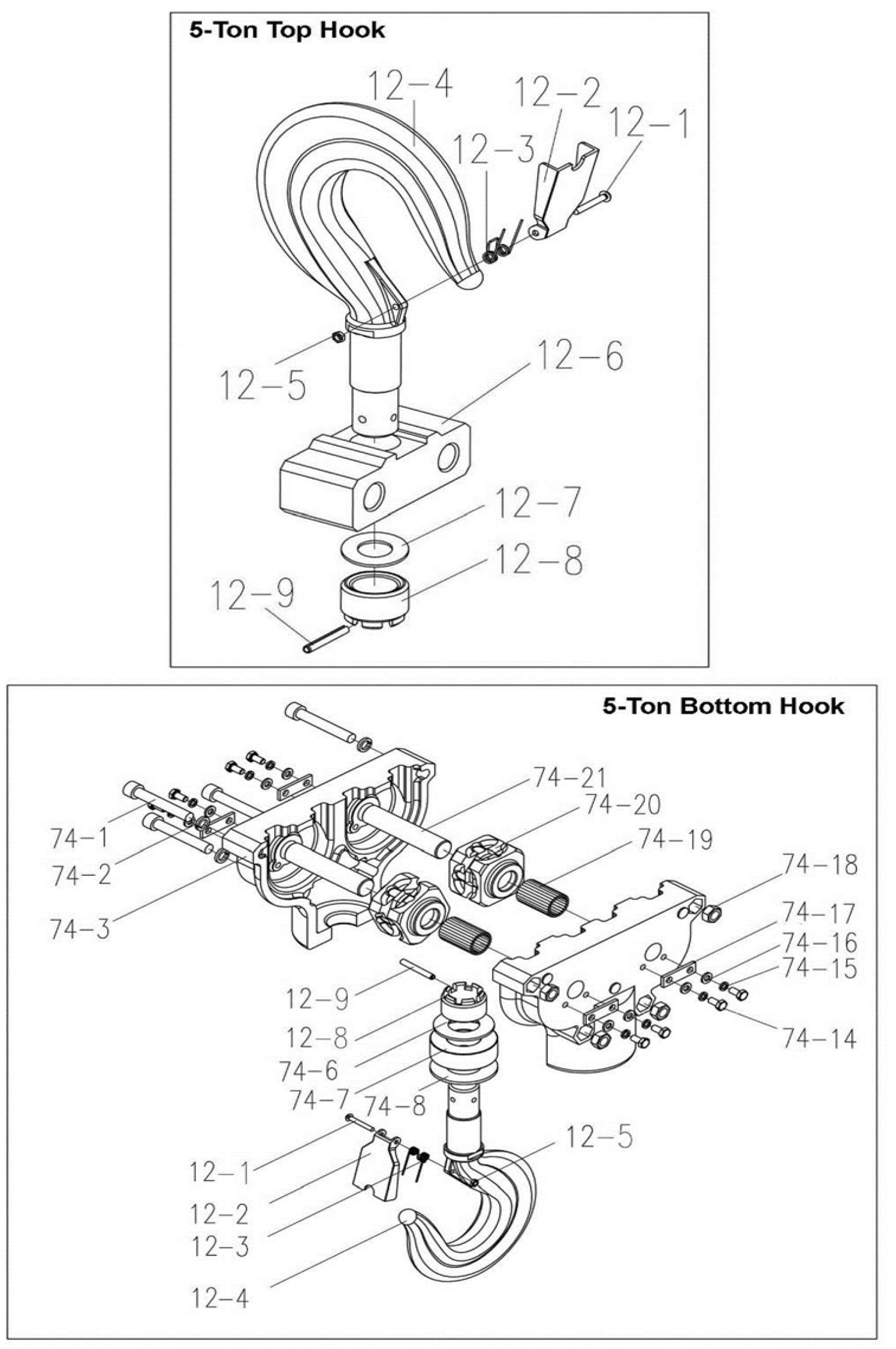

| Fig 3 - 12, Fig 6 - 12 | TOP HOOK ASSEMBLY FOR 5T |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 13 | STAY BOLT FOR MOTOR SIDE PLATE |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 3 - 14 | BALL BEARING WITH RETAINER (150207) |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 15 | STOP RING (72/78.8) |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 16 | SHEAVE COVER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 17, Fig 5 - 36 - 5 | LOCK NUT (M8) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 18 | RUBBER PLUG |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 19 | SOCKET HEAD CAP SCREW (M6X25) |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 20 | LOCK WASHER (6MM) |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 21 | LIFT WHEEL |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 22 | GEAR SIDE PLATE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 23 | GEAR SIDE PLATE GASKET |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 24 | BALL BEARING WITH RETAINER (50403) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 25 | STOP RING (62/67.6) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 27 | SNAP RING (20MM) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 30 | OVERLOAD LIMIT CLUTCH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 30 - 1 | SPLINE SLEEVE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 30 - 2 | WING SPRING |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 30 - 3 | MIDDLE GEAR (1 PH) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 30 - 4 | ADJUST ROUND NUT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 30 - 5 | CLUTCH SUPPORT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 30 - 6 | FRICTION DISC |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 30 - 7 | ADJUST WASHER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 31 | GEAR CASE SEAL |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 32 | GEAR CASE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 33 | SOCKET HEAD CAP SCREW (M6X20) |
5 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "5" or more to proceed. |
||
| Fig 3 - 34 | 410BALL BEARING (180205KZ1) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||

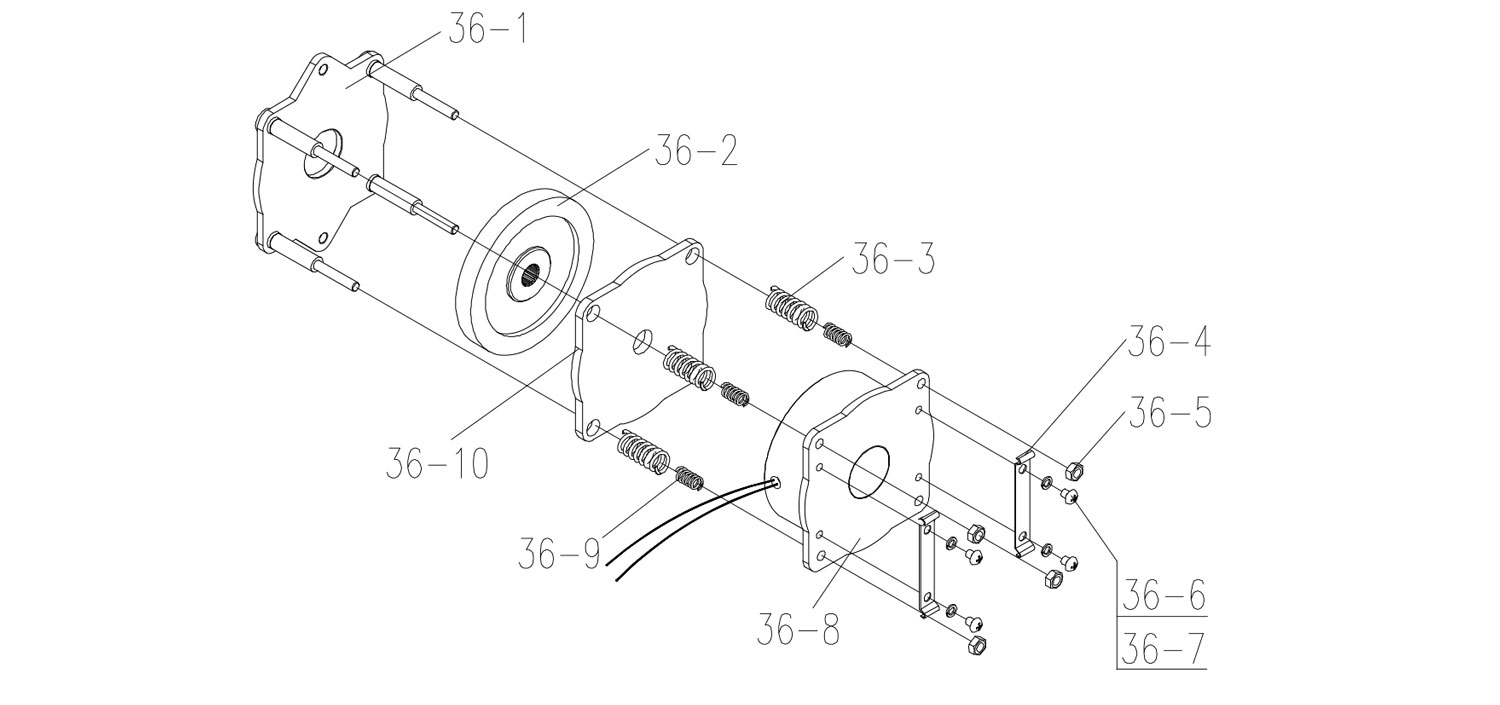

| Fig 3 - 36 | DC BRAKE (1 PH) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 38 | GEAR SIDE COVER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 40 | SOCKET HEAD CAP SCREW (M3X6) |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 3 - 41 | TRANSFORMER 1PH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 42, Fig 3 - 90 | PHILLIPS PAN HD MACH SCREW (M4X6) |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 3 - 43, Fig 3 - 91, Fig 3 - 98 | LOCK WASHER M4 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 3 - 44, Fig 3 - 56, Fig 3 - 92, Fig 3 - 99 | FLAT WASHER M4 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 3 - 45 | TRANSFORMER BRACKET |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 46 | BALL BEARING (180203KZ1) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 47 | STEEL COLLAR |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 48 | FLAT WASHER M8 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 49 | SOCKET HEAD CAP SCREW (M8X20) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 50 | LOCK PLATE FOR CLUTCH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 51 | ROUND PIN |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 52 | ADJUST ROUND NUT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 53 | ADJUST SHAFT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 54 | ROUND PIN |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 55 | PHILLIPS PAN HD MACH SCREW (M4X16) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 57 | HEX NUT (M4) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 58 | PHILLIPS PAN HD MACH SCREW (M5X10) |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 3 - 59 | LOCK WASHER M5 |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 3 - 60 | FLAT WASHER M5 |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 3 - 61 | SOCKET HEAD CAP SCREW (M8X25) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 62 | CHAIN CONTAINER BRACKET |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 64 | LIMIT SWITCH SET |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 65 | SNAP RING (34MM) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 66, Fig 6 - 79 - 17 | HINGE PLATE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 67 | SHEAVE SHAFT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 68, Fig 6 - 79 - 19 | NEEDLE BEARING (3X39.8B) (QTY24) |
24 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "24" or more to proceed. |
||
| Fig 3 - 69 | BLOCK |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 70, Fig 6 - 79 - 20 | SHEAVE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 71 | SHEAVE GUIDE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 72 | CABLE INPUT SEAL |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 73 | LIMIT PADDLE ASSEMBLY |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 73 - 1 | SIDE PLATE |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 73 - 2 | CHAIN GUIDE BLOCK |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 73 - 3 | CHAIN GUIDE SHAFT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 74 | LIMIT SPRING |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 75 | LOAD CHAIN 1T,2T,3T,5T (PER FT) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 76 | RETAINER RING |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 77 | CHAIN STOP |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 78 | PIN |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 79, Fig 6 - 79 | BOTTOM HOOK ASSEMBLY (5T) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 80 | PIN |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 82 | SLOTTED HEX NUT (M8) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 83 | C. PIN (2.5X20) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 84 | CHAIN HOLDER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 85 | PHILLIPS PAN HD MACH SCREW (M8X16) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 86 | LOCK WASHER (8MM) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 87 | n/a |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 88 | ELECTRIC COMPONENT BOARD (1 PH) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 93 | FEMALE CONNECTOR 7P |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 94 | QUICK CONNECTOR BOARD |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 95 | FEMALE CONNECTOR 4P |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 96 | CONTACTOR HOLDER (1 PH) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 97 | MACH SCREW PAN HD PHILLIPS M4X8 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||

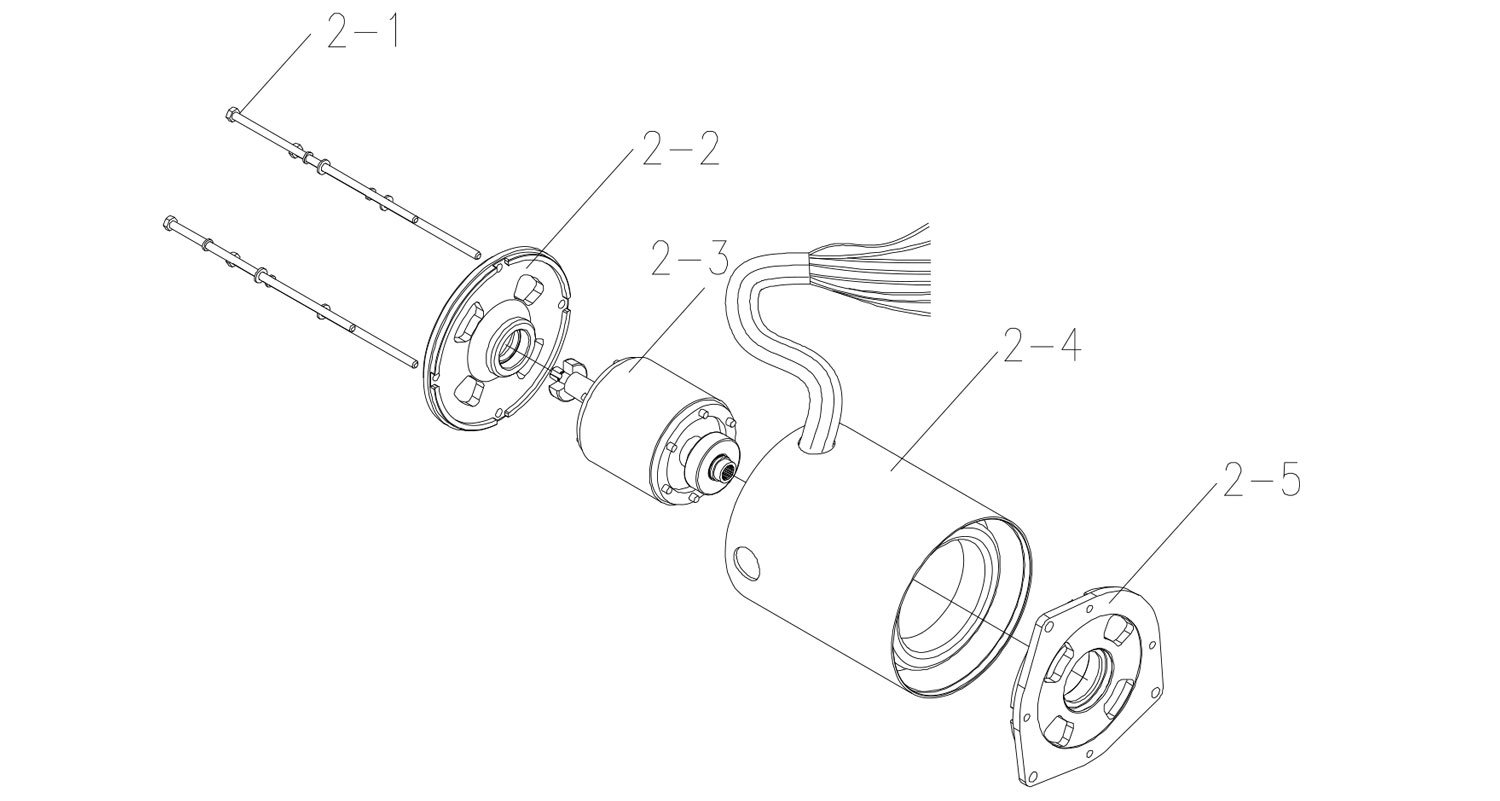

| Fig 4 - 2 - 2 | MOTOR BRACKET (1 PH) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 2 - 4 | MOTOR CASE ASSEMBLY (1 PH) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 2 - 5 | MOTOR RIGHT-END COVER (1 PH) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 36 - 10 | BRAKE ARMATURE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 36 - 2 | FRICTION PAD (1 PH) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 36 - 3 | BRAKE SPRING (1 PH) |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 5 - 36 - 4 | LOCKING PLATE |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 5 - 36 - 6 | PAN HEAD SCREW (M5X6) |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 5 - 36 - 7 | LOCK WASHER (5MM) |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 5 - 36 - 9 | BRAKE SPRING |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 6 - 12 - 0 | HOOK LATCH ASSY (#17-1,17-2,17-3,17-5) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 12 - 1 | MACH SCREW PAN HD PHILLIPS M4X30 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 12 - 2 | HOOK LATCH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 12 - 3 | LATCH SPRING |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 12 - 4 | TOP HOOK |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 12 - 5 | LOCK NUT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 12 - 5 | LOCK NUT (M4) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 12 - 6 | CONNECTING BAR |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 12 - 7 | PLAIN WASHER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 12 - 8 | HOOK NUT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 12 - 9 | ROLL PIN (5X40MM) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 79 - 1 | SOCKET HEAD CAP SCREW (M10X65) |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 6 - 79 - 14 | HEX BOLT (M6X12) |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 6 - 79 - 18 | LOCK NUT (M10) |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 6 - 79 - 21 | SHEAVE SHAFT |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 6 - 79 - 3 | BOTTOM HOOK HOUSING |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 6 - 79 - 6 | PLAIN WASHER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 79 - 7 | THRUST BALL BEARING (8306) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 79 - 8 | COLLAR |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 100, Fig 3 - 105 | MALE PLUG 7P |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 119 | PUSHBUTTON CORD (PER FT) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 120 | CAUTION TAG |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 121 | PHILLIPS PAN HD MACH SCREW (M4X25) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 122 | HEX NUT NYLON LOCK M4 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 100 | MAG CONTACTOR 1PH |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 102 | MOTOR SIDE COVER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 103 | n/a |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 3 - 107 | LOCKNUT (M6) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 109 | PHILLIPS PAN HD MACH SCREW (M3X6) |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 3 - 110 | LOCK WASHER (3MM) |
12 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "12" or more to proceed. |
||
| Fig 3 - 111 | PLAIN WASHER (3MM) |
12 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "12" or more to proceed. |
||
| Fig 3 - 112 | SOLID STATE SWITCH (1PH) * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 113 | MACH SCREW, PAN HD, M4X35 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 114 | CAPACITOR (1 PH ONLY) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 115 | CAPACITOR HOLDER (FOR 1 PH ONLY) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 116 | RECTIFIER (FOR 1 PH ONLY) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 123 | LOCK NUT M3 |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 3 - 124 | CHAIN GUIDE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 125 | FUSE 2A |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 126 | FUSE COVER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
