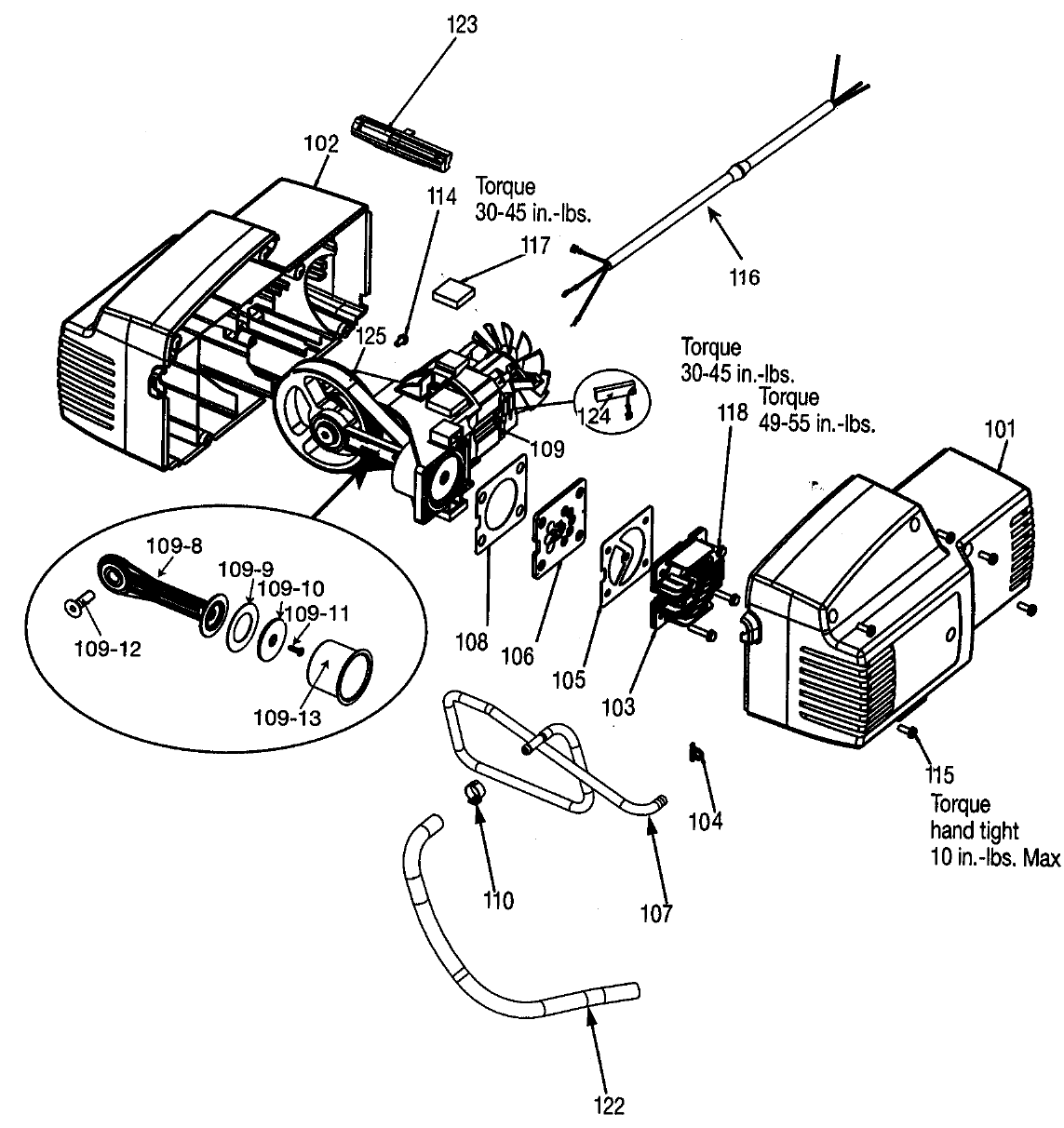

| Ref | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 10 | GAUGE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 101, 102, 856 | SHROUD KIT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 103 | HEAD UMC PRESSURE RE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 104 | TUBE SEAL |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 105, 108, 856 | KIT GRAPHITE GASKET |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 106 | VALVE PLATE ASSY |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 107 | OUTLET TUBE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 109 | SCREW |
10 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "10" or more to proceed. |
||
| 109 | SCREW #10-24X.563 PA |
10 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "10" or more to proceed. |
||
| 109 | PUMP ASSEMBLY |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 109, 856 | CON ROD ASSY |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 11 | NIPPLE CLOSE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 114 | SCREW #8-32X.375/.34 |
10 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "10" or more to proceed. |
||
| 115 | SCREW #10-9X.500 THD |
10 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "10" or more to proceed. |
||
| 116 | CORD ASSY UMC PANCAK * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 117 | ISOLATOR PUMP |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 118 | SCREW #10-24X.875 HH |
10 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "10" or more to proceed. |
||
| 12 | BUSHING REDUCER 1/8- |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 122 | HOSE AIR 1/4 X 10 BL |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 123 | HANDLE SUPPORT NON-S |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 124 | BRUSH MOTOR UMC GOLD * Obsolete * use 5140209-03 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 125 | BELT TIMING DAYCO |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 16 | VALVE CHECK 1/2NPTX |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 17 | ISOLATOR PUMP |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| 18, 110 | CLAMP HOSE .250 ID H |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 2 | SCREW .250-20X.750 H |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| 20 | SCREW .250-14X.625 F * Obsolete * |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 23 | DRAIN VALVE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 24 | GAUGE 1.5OD 200PSI . |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 3 | KIT ISOLATOR W/SCREW |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| 4 | NIPPLE .25NPT X 2.5 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 7 | VALVE SAFETY 150 .25 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 8 | REGULATOR 3PORT P2 L |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 856 | KIT FASTENER * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 856 | LABEL WARNING DRAIN |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 856 | LABEL |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 856 | LABEL WARNING |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 856 | LABEL HOT SURFACE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 856 | LABEL |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 856 | Cylinder Kit |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
