Powermatic 1285_1791307 12

Parts for:

Powermatic 1285_1791307 12" Jointer (3Hp 1Ph 230V, Helical Head)

Search Parts:

Only common repair parts are available for purchase. If a part does not have add to cart button it's not available for purchase on Toolbarn. Please do not contact customer service for availability on these items.
Please scroll left/right table for more info!
Ref Part # Description Price Qty
CENTRIFUGAL SWITCH
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

MOTOR FAN
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

MOTOR FAN COVER
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

RUNNING CAPACITOR (50UF 350VAC)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

STARTING CAPACITOR (400MFD 250VAC)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

KNFE SETTNG GAUGE ASSY(ITEMS 20-23)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

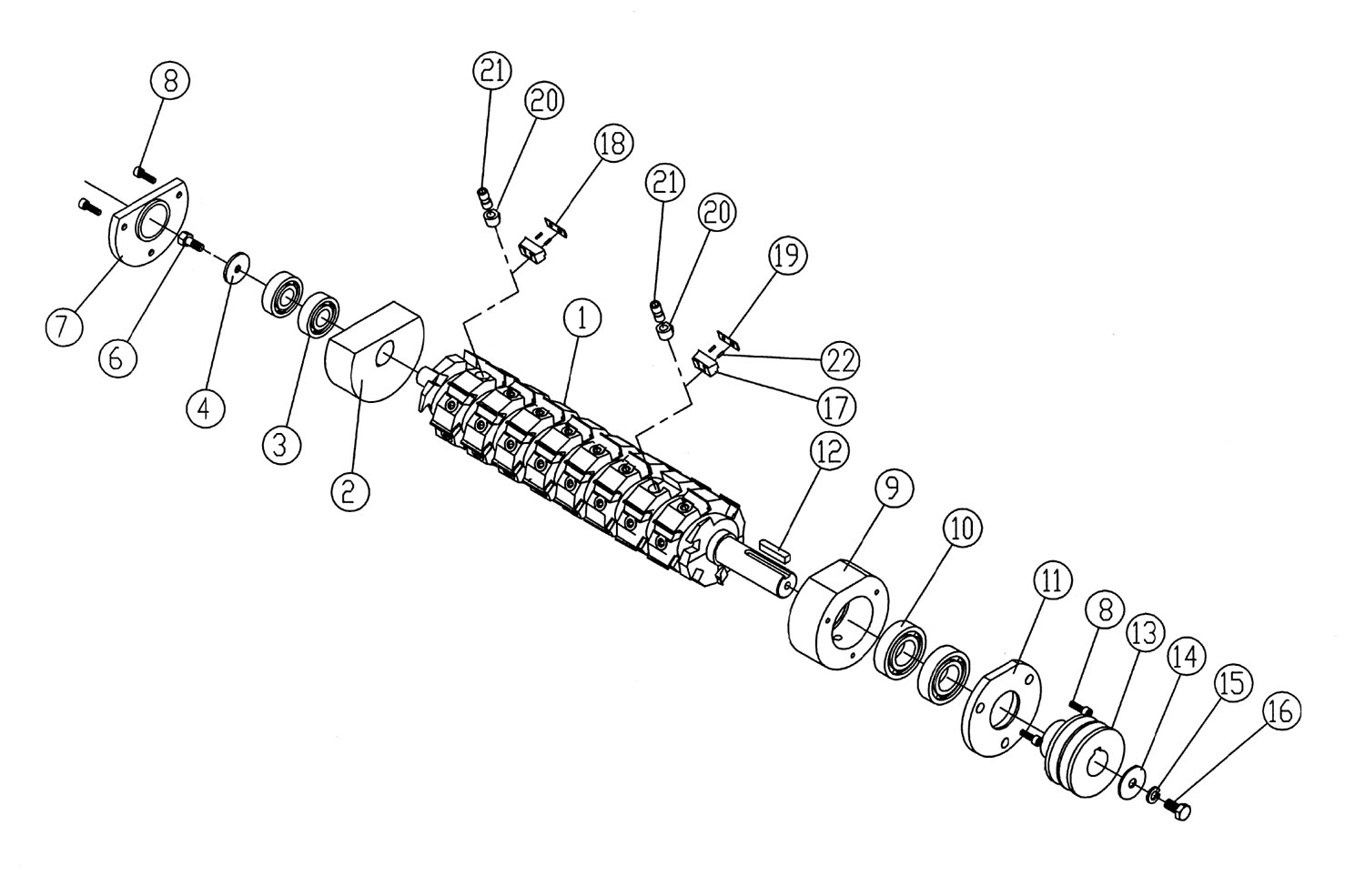

HELICAL CTTRHD ASSY (ITEMS 1-22)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

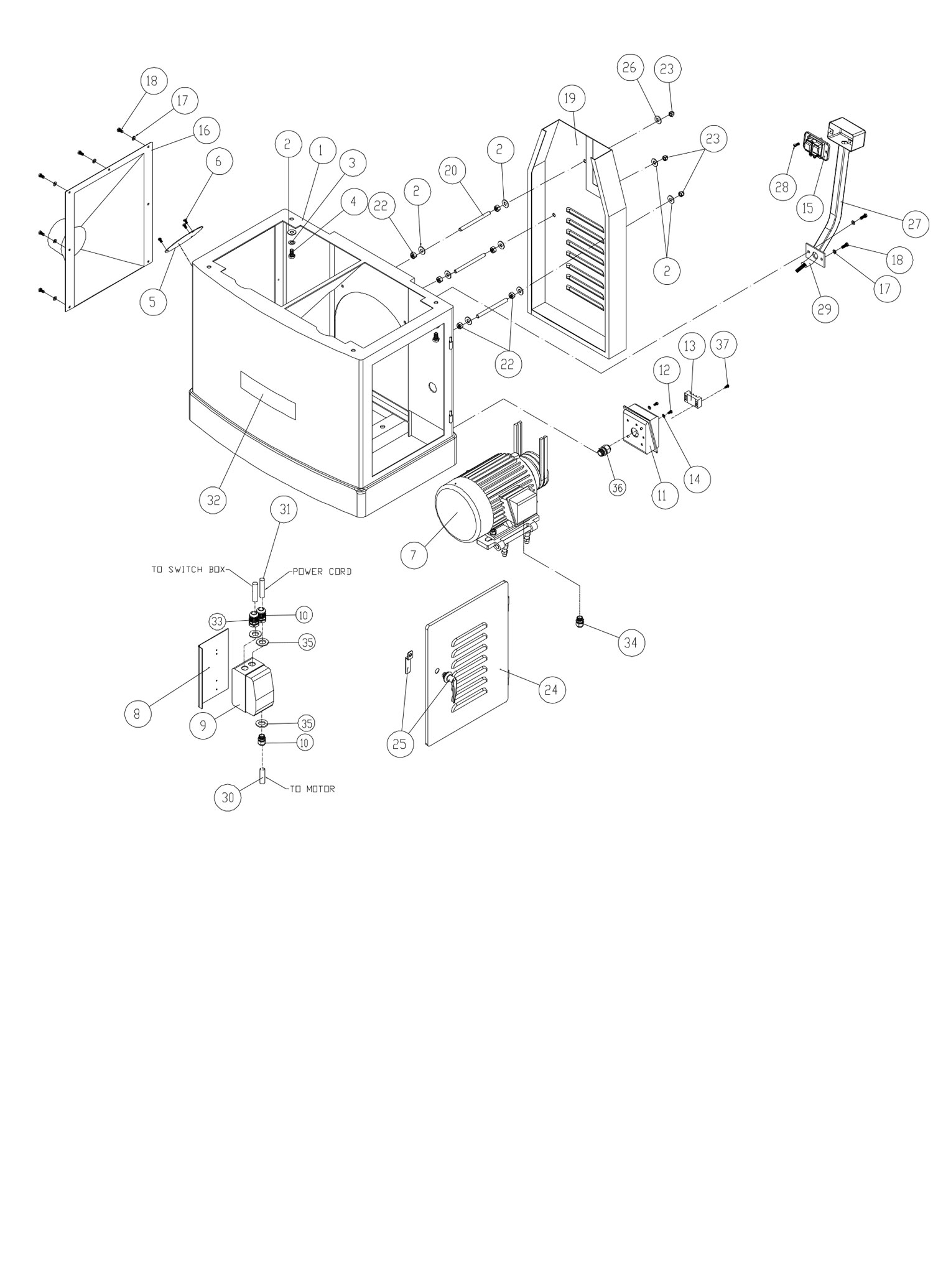

Fig 1 - 1 STAND
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 2, Fig 2 - 4, Fig 2 - 44, Fig 3 - 5, Fig 4 - 12 3/8 FLAT WASHER
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 1 - 3, Fig 3 - 6, Fig 4 - 10 LOCK WASHER MEDIUM 3/8 (JJ-6CX)
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 1 - 4 HEX CAP SCREW 3/8-16X1
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 1 - 5 COVER DUST CHUTE 12 JOINTER MDL1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 6, Fig 1 - 12, Fig 2 - 43 PAN PHILLIPS MACHINE SCREW 10-24 x 3/8"
5 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "5" or more to proceed.

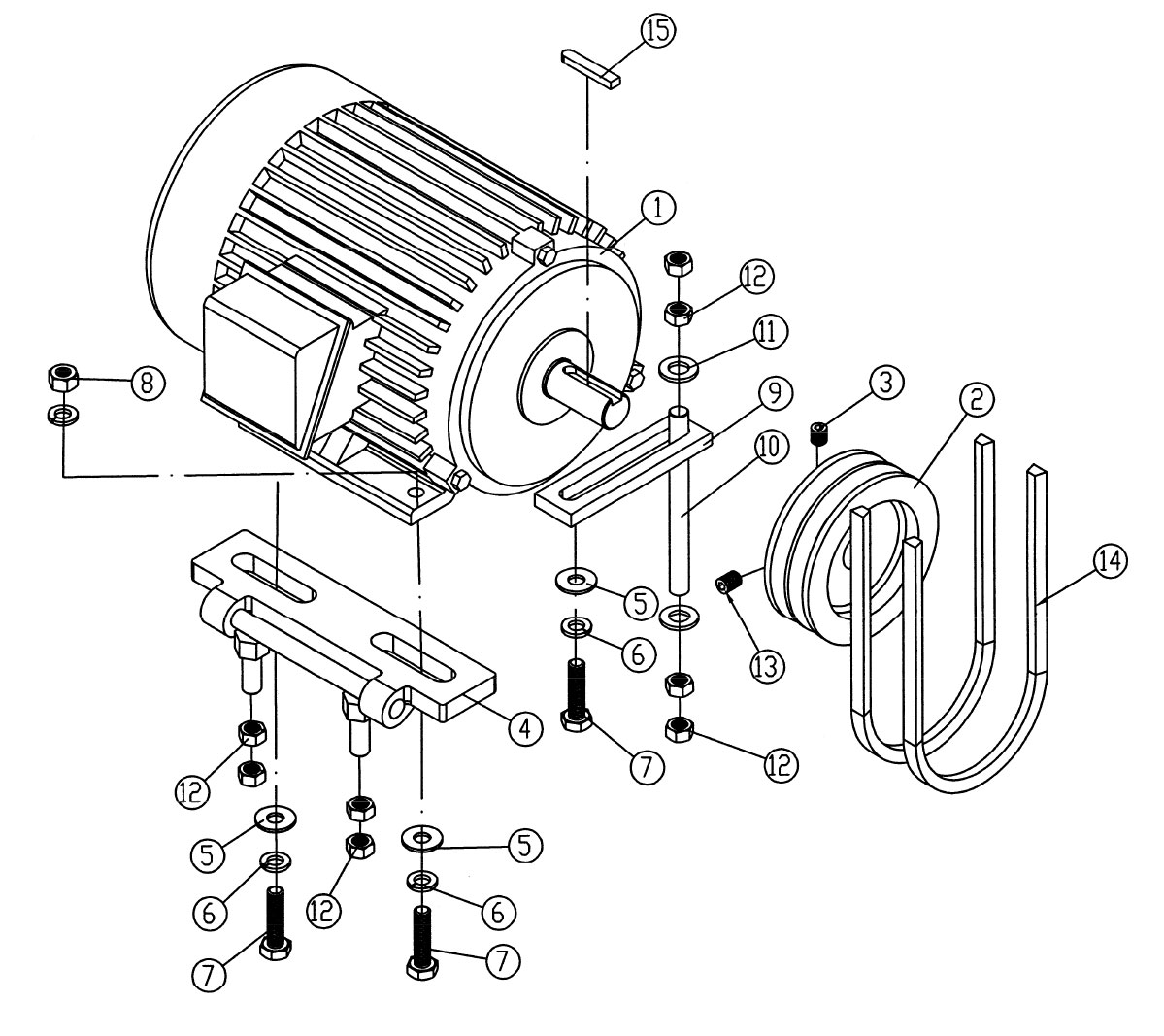

Fig 1 - 7 ASSY MOTOR PULLEY 3HP 1PH 12"PULLEY 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 8 PLATE
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 9 CONTACTOR 1PH 12" JOINTER MDL1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 10, Fig 1 - 33, Fig 1 - 34, Fig 1 - 36 CLAMP (1PH)
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 11 BOX JUNCTION 12 JOINTER MDL 1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 13 STRIP TERMINAL 12" JOINTER MDL 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 14 LOCK WASHER #10
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 15 SWITCH
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 16 HOOD DUST
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 17 LOCK WASHER MEDIUM 1/4
9 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "9" or more to proceed.

Fig 1 - 18 HEX CAP SCREW 1/4-20X1/2
7 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "7" or more to proceed.

Fig 1 - 19 COVER PULLEY 12" JOINTER MDL 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 20 SCREW 105L 12" JOINTER MDL 1285
3 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "3" or more to proceed.

Fig 1 - 22, Fig 2 - 23, Fig 3 - 8 HEX NUT FULL 3/8-16
6 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "6" or more to proceed.

Fig 1 - 23 CAP NUT 3/8-16
3 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "3" or more to proceed.

Fig 1 - 24 DOOR ACCESS 12" JOINTER MDL 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 25 ASSEMBLY HND 12 JOINTER MDL 1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 26 WASHER (3/8"X3/4"OD)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 27 SWITCH ARM
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 28 MACH SCREW PAN HD PHILLIPS M5X16
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 29 SWITCH CORD
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 30 MOTOR CORD (1PH)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 31 POWER CORD (1PH)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 32 POWERMATIC LOGO /CLEAR LETTERS(TEXT)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 37 MACH SCREW PAN HD PHILLIPS 10-24X3/4
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

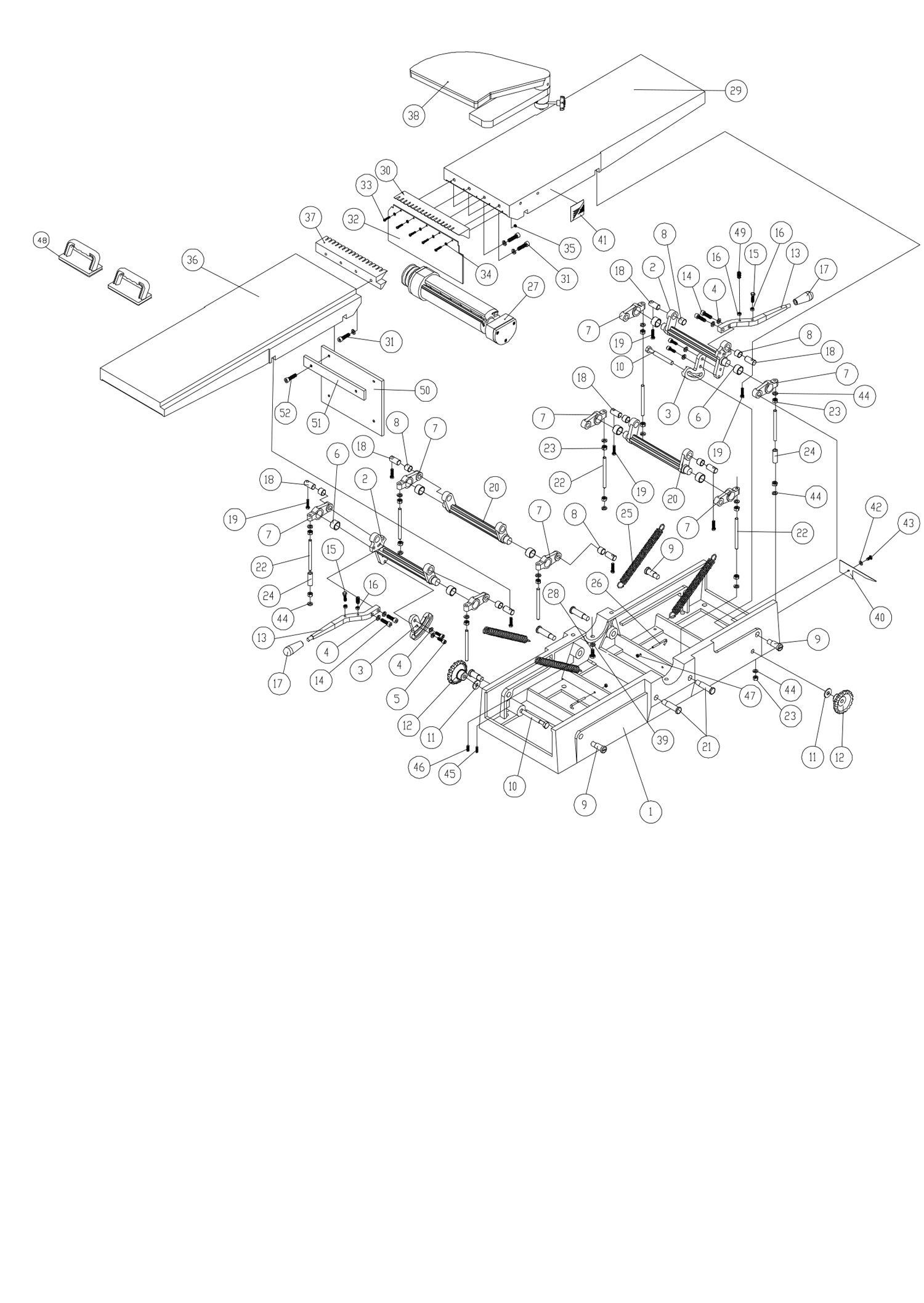

Fig 2 - 1 BASE TABLE 12 JOINTER MDL 1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 2 BAR TBLE RAISING LINK 12JOINTER MDL128
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 3 BRACKET 12" JOINTER MDL 1285
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 5 SOCKET HD CAP SCREW 3/8-16X1
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 2 - 6 BUSHING 12'" JOINTER MDL 1285
8 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "8" or more to proceed.

Fig 2 - 7 SUPPORT 12" JOINTER MDL 1285
8 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "8" or more to proceed.

Fig 2 - 8 BUSHING 12" JOINTER MDL 1285
8 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "8" or more to proceed.

Fig 2 - 9 AXIS PIVOT 12 JOINTER MDL 1285"
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 2 - 10 SCREW 1/2"-12NCX115L 12"JOINTER MDL1285
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 11 FLAT WASHER 1/2"
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 12 HNDWHEEL 12"JOINTER MDL 1285
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 13 HNDL 12" JOINTER MDL 1285
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 14 SOCKET HD CAP SCREW 3/8-16X1-1/4
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 2 - 15 HEX CAP SCREW M8X25 * Obsolete * use 7015-5-10
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 16, Fig 6 - 21 HEX NUT FULL M8
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 2 - 17, Fig 6 - 34 KNOB 12" JOINTER MDL 1285
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 18 AXIS PIVOT 12JOINTER MDL 1285"
8 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "8" or more to proceed.

Fig 2 - 19 SOCKET HD CAP SCREW 5/16-18X1-1/4
8 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "8" or more to proceed.

Fig 2 - 20 BAR TABLE RAISING LINK #1285 12JOINTER
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 21 AXIS PIVOT #1285 12 JOINTER"
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 2 - 22 SCREW 12" JOINTER MDL 1285
8 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "8" or more to proceed.

Fig 2 - 24 TUBE 12" JOINTER MDL 1285
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 25 SPRNG 12" JOINTER MDL 1285
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 2 - 26 BOLT SPRING (SPECIAL)
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 2 - 27 ASSEMBLY CUTTERHD 12JOINTER MDL1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 28, Fig 6 - 8 HEX HEAD SCREW M10 X30
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 29 TABLE INFEED 12 JOINTER MDL 1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 30 LIP TABLE 12JOINTER MDL 1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 31 SOCKET HD CAP SCREW M10X40
8 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "8" or more to proceed.

Fig 2 - 32 DEFLECTOR DUST 12JOINTER MDL 1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 33 PHLPS PAN HD MACH SCRW #10-24x1
5 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "5" or more to proceed.

Fig 2 - 34, Fig 2 - 42 FLAT WASHER 3/16"
5 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "5" or more to proceed.

Fig 2 - 35 HEX NUT #10-24
5 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "5" or more to proceed.

Fig 2 - 36 OUTFEED TABLE
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 37 LIP TABLE 12 JOINTER MDL 1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 38 ASSEMBLY GUARD 12JOINTER MDL 1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 39, Fig 5 - 15, Fig 6 - 7 LOCK WASHER M10
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 40 POINTER
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 41 SCALE
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 45 SOCKET SET SCREW 3/8-16X1/2
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 2 - 46 SOCKET SET SCREW 3/8-16X3/8
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 2 - 47, Fig 4 - 8 HEX NUT FULL 1/4-20
6 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "6" or more to proceed.

Fig 2 - 49 SET SCREW (M8X35)
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 50 DUST DEFLECTOR
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 51 STEEL PLATE
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 52 SOCKET HD CAP SCREW M5X20
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 3 - 1 MOTOR 3HP 1PH 12 JOINTER MDL 1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 2 PULLEY 1PH (1285 JOINTER)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 3 SOCKET SET SCREW M10X10
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 4 BRACKET MOTOR 12 JOINTER MDL 1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 7 HEX CAP SCREW 3/8-16X1-3/4
3 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "3" or more to proceed.

Fig 3 - 9 PLATE 12 JOINTER MDL 1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 10 ROD 12 JOINTER MDL 1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 11, Fig 6 - 26 FLAT WASHER M12
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 3 - 12, Fig 6 - 32 HEX NUT FULL M12
8 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "8" or more to proceed.

Fig 3 - 13 SOCKET SET SCREW M10X12
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 14 BELT A-53 1PH S300034 12JOINTER 1285"
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 3 - 15 KEY (8X7X55MM)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 1 RABBET LEDGE 12" JOINTER MDL 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 2 GUARD 12" JOINTER MDL 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 3 SHAFT 12" JOINTER MDL 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 4 SPRNG 12" JOINTER MDL 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 5 SHAFT CLLR 12" JOINTER MDL 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 6 SOCKET SET SCREW 3/8-16X3/4
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 7 SOCKET SET SCREW 1/4-20X3/4
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 4 - 9 KNOB 12" JOINTER MDL 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 13 (MDL 60B) WARNING LABEL
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 5 - 1 HELICAL CUTTERHD
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 5 - 2 BEARING HOUSING LEFT
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 5 - 3 BALL BEARING
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 5 - 4 WASHER 12" JOINTER MDL 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 5 - 6, Fig 6 - 22 HEX CAP SCREW M8X20
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 5 - 7 BEARING CAP PLATE LEFT
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 5 - 8 SOCKET HD CAP SCREW M6X20
6 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "6" or more to proceed.

Fig 5 - 9 BEARING HOUSING RIGHT
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 5 - 10 BALL BEARING
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 5 - 11 BEARING CAP PLATE RIGHT
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 5 - 12 KEY8X8X60L 12" JOINTER MDL 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 5 - 13 PULLEY 12" JOINTER MDL 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 5 - 14 WASHER 12" JOINTER MDL 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 5 - 16 HEX CAP SCREW M10X20
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 5 - 17 GIB
44 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "44" or more to proceed.

Fig 5 - 18 RABBET INSERTS (SET OF 2) FOR MODEL 1285 and PJ1696 HELICAL HEADS
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 5 - 19 INSERTS (SET OF 10) FOR MODEL 1285 SPIRAL HEAD AND MODEL PJ1696
5 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "5" or more to proceed.

Fig 5 - 20 GIB NUT
44 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "44" or more to proceed.

Fig 5 - 21 GIB SCREW
44 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "44" or more to proceed.

Fig 5 - 22 GIB PIN
88 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "88" or more to proceed.

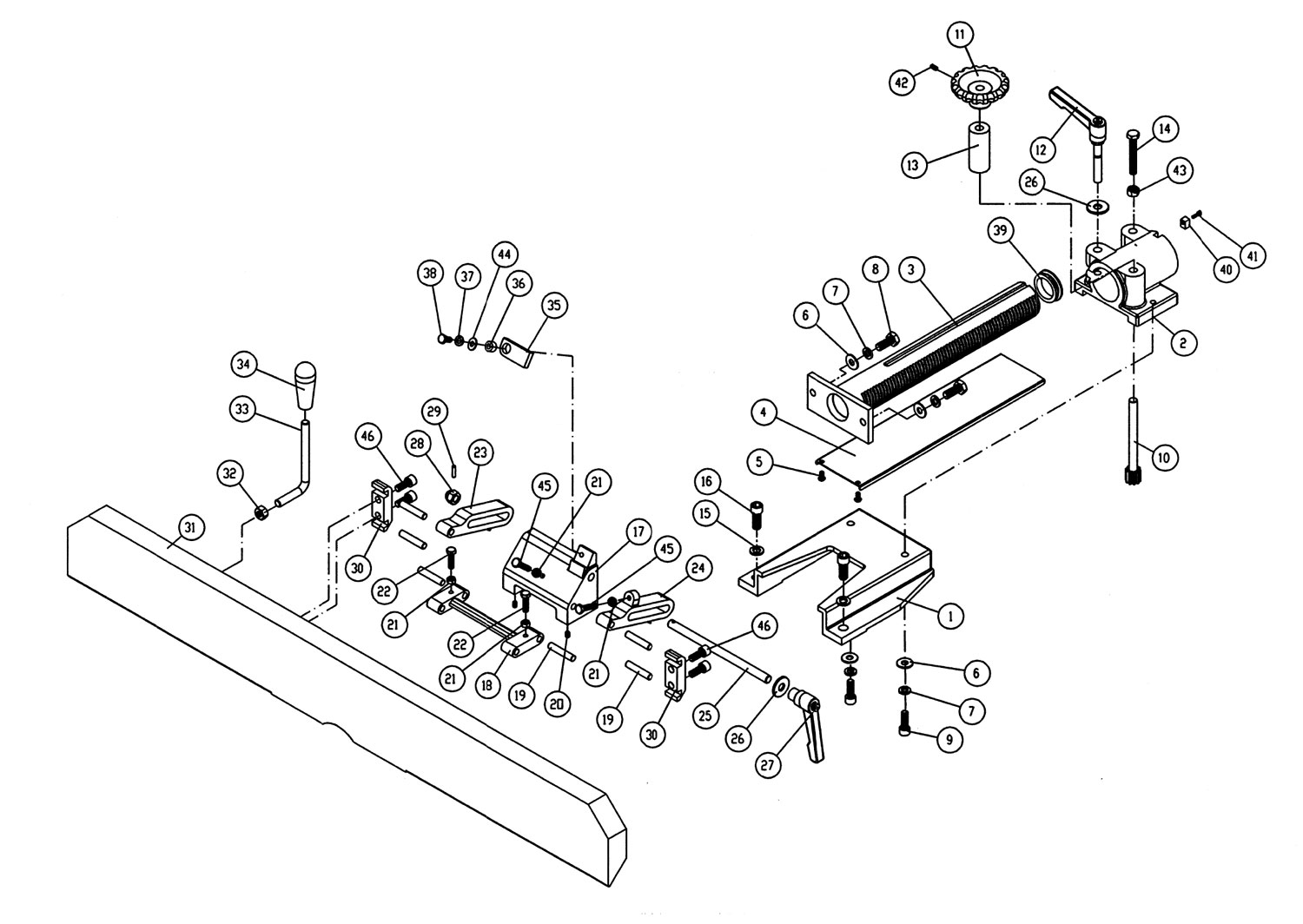

Fig 6 - 1 SUPPORT FENCE 12 JOINTER MDL 1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 2 BRACKET 12" JOINTER MDL 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 3 COLUMN GEAR 12 JOINTER MDL 1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 4 GUARD CUTTERHD 12 JOINTER MDL 1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 5 SOCKET HD CAP SCREW M6X12
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 6 - 6 n/a
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 6 - 9 SOCKET HD CAP SCREW M10X30
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 6 - 10 SHAFT GEAR 12 JOINTER MDL 1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 11 HNDWHEEL 12" JOINTER MDL 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 12 HNDL LOCK 12 JOINTER MDL 1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 14 SCREW 12" JOINTER MDL 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 15 LOCK WASHER MEDIUM 1/2
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 6 - 16 SCREW 1/2X1-1/4L 12" JOINTER MDL1285"
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 6 - 17 BRACKET FENCE 12 JOINTER MDL 1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 18 SUPPORT 12" JOINTER MDL 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 19 PIN 12" JOINTER MDL 1285
6 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "6" or more to proceed.

Fig 6 - 20 SOCKET SET SCREW M6X20CONE POINT
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 6 - 23 BRACKET LEFT 12 JOINTER MDL 1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 24 BRACKET RIGHT 12 JOINTER MDL 1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 25 SHAFT 12" JOINTER MDL 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 27 HNDL 12" JOINTER MDL 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 28 CAP NUT M12
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 29 PIN SPRNG 12 JOINTER MDL 1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 30 CLAMP REAR 12 JOINTER MDL 1285"
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 6 - 31 FENCE 12" JOINTER MDL 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 33 ROD HND 12 JOINTER MDL 1285"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 35 BLOCK 12" JOINTER MDL 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 36 BUSHING, 12" JOINTER MDL 1285
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 37 LOCK WASHER M8
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 38, Fig 6 - 45 3HEX CAP SCREW M8X35"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 39 COVER
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 40 BLOCK
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 41 SOCKET HD CAP SCREW M4X16
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 42 SOCKET SET SCREW M6X12
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 43 HEX NUT FULL M10
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 44 FLAT WASHER M8
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 46 SOCKET HD CAP SCREW M10X20
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.
