| Ref | Part # | Description | Price | Qty |
|---|---|---|---|---|

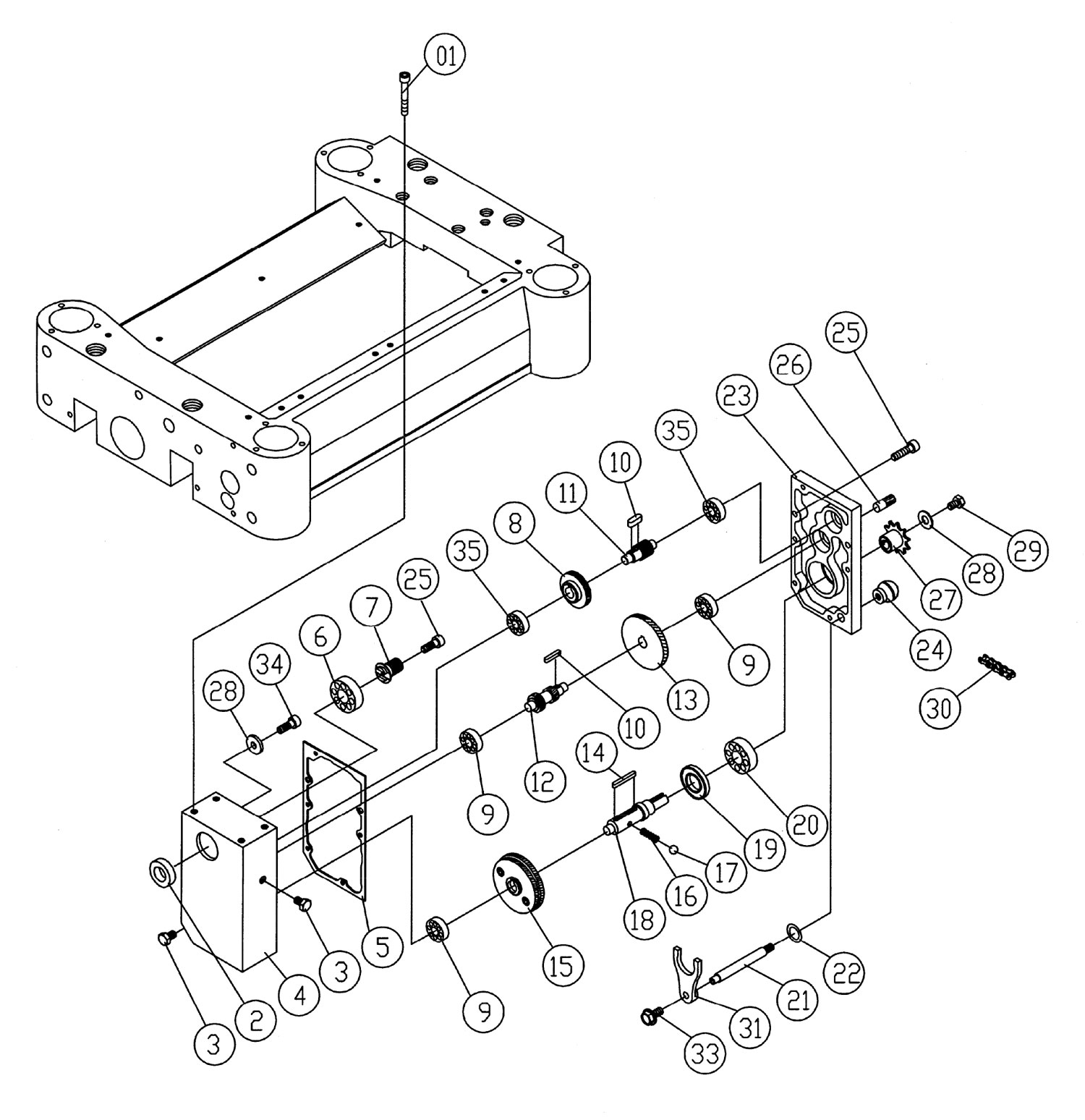

| GEAR BOX ASSY PJA-G 15" PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
|||
| CABINET ASSY PJH-S 15" PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
|||
| Fig 1 - 1 | CASE ROLLER PJB-CO1 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 2 | SOCKET SET SCREW M10X10 |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 1 - 9 | KEY 8-8-35 5FK-G14 15PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 10 | DRIVEN PULLEY PJA-C04 15 PULLEY |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 11, Fig 1 - 64, Fig 2 - 18 | FLAT WASHER M8 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 12 | ROLLER INFEED PJA-C33 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 13 | BRACKET RETAINING PJA-C32 15 PLANER |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 1 - 14 | SPRNG 3.5 PJA-C31 15 PLANER |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 1 - 15 | SCREW M22-1.5P-20 PJA-C42 15PLANER |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 1 - 16 | MAGNETIC SWITCH (3HP, 1PH, 230V) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 16 | CONTACTOR (3HP, 1PH, 230V) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 16 | OVERLOAD (3HP, 1PH, 230V) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 17 | BRACKET PJA-C21 15 PLANER |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 1 - 18 | SOCKET SET SCREW M6X16 |
7 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "7" or more to proceed. |
||
| Fig 1 - 19 | n/a |
6 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "6" or more to proceed. |
||
| Fig 1 - 20, Fig 2 - 19, Fig 3 - 17 | HEX CAP SCREW M8X25 * Obsolete * use 7015-5-10 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 21 | KEY 5-5-22 5FK-G10 15 PLANER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 22 | SPROCKET 31T PJA-C34 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 23, Fig 4 - 28 | WASHER M-6 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 24, Fig 4 - 29 | HEX CAP SCREW M6X16 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 25 | ROLLER OUTFEED ASSY PJA-C23 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 26 | SPROCKET 31T PJA-C24 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 27 | SHAFT PJB-CO2 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 28 | RETAIN RING STW 12 5F1-A07A 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 29 | HEX NUT FULL M12 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 30 | CHIP BREAKER PJA-C26 15" PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 33 | BRACKET PJA-C13 15 PLANER |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 1 - 34 | HEX CAP SCREW M6X12 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 1 - 35 | BOLT PAN HD M6-1.0P-12 15 PLANER |
23 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "23" or more to proceed. |
||
| Fig 1 - 36 | SHAFT CHIP DEFLECTOR PJA-C27 15PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 37 | PLATE CHIP DEFLECTOR PJA-C12 15PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 38 | ANTI-KICKBACK PAWL PJA-C29 15PLANER |
39 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "39" or more to proceed. |
||
| Fig 1 - 39 | SPACER PJA-C30 15 PLANER |
40 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "40" or more to proceed. |
||
| Fig 1 - 40 | SHAFT PJA-C28 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 41 | SOCKET SET SCREW M8X12 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 42 | E-RING ETW 15 5FC-A14 15 PLANER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 43 | LIMITER DEPTH PJA-C14 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 44 | SCREW PHIL M5-0.8P-12 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 45 | COVER DUST PJA-C19 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 46 | BRACKET ROLLER PJC-HO2A 15 PLANER |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 1 - 47 | ROLLER PJC-H02B 15 PLANER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 48 | BOX WORM GEAR PJC-H02C 15" PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 49 | GEAR WORM PJC-H02D 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 51 | RING RETAINER RTW-30 5FB-A22 15PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 52 | HNDWHEEL PJC-H03A 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 53 | HNDL 3/8-16NC 15PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 54 | COVER PJA-C36 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 55 | PIN SPRNG 5FF-L18 6-20 15 PLANER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 56 | PLATE PJC-HO4 15 PLANER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 57 | HEX CAP SCREW M5X10 |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 1 - 58 | SOCKET HD CAP SCREW M8X45 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 59 | STUD PJC-HO5 15 PLANER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 60, Fig 5 - 10 | SAE 5/16 FLAT WASHER ZINC |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 61 | HEX NUT FULL 5/16-18 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 62 | COVER PULLEY |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 63 | NUT PJC-H07 15 PLANER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 65 | CHAIN 06B-63 5GF-C10 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 68 | GUARD PULLEY PMA-H26 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 69 | SOCKET HD CAP SCREW M6X10 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 70 | BRACKET PJA-C44 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 71 | SHAFT PJA-C45 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 72 | HANGER PJA-C49 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 73 | SPRNG 1.2 PJA-C48 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 74 | WASHER 8.2-22-3 JEA-F15 15PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 75, Fig 4 - 34, Fig 5 - 14 | SOCKET HD CAP SCREW M6X12 |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 1 - 76 | LABEL PJH-C01 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 77 | LABEL PJA-C52 15 PLANER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 78 | WARNING LABEL |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 79 | SPD LABEL PJA-C40 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 80 | PULLEY MOTOR 84 PJA-C06 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 81 | LABEL DIRECTION PJC-H09 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 82, Fig 2 - 10 | KEY 4-4-10 - 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 83, Fig 2 - 17 | HEX NUT FULL M10 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 84, Fig 3 - 16 | SOCKET HD CAP SCREW M6X20 |
12 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "12" or more to proceed. |
||
| Fig 1 - 90 | PULLEY IDLE PJA-C46 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 91 | SHAFT PJA-C47 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 92 | HOOD CLLCTR PJA-Y01A 15"PLNR |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 93 | LOCK WASHER M6 |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 1 - 94 | FLAT WASHER M5 |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 1 - 100 | 15" SHELIX HELICAL CUTTERHEAD |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 101 | INSERTS FOR SHELIX HEADS (PACK OF 10) |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 1 - 102 | KNIFE SCREW: 10-32 X 1/2 FLAT HD TORX PLUS |
74 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "74" or more to proceed. |
||

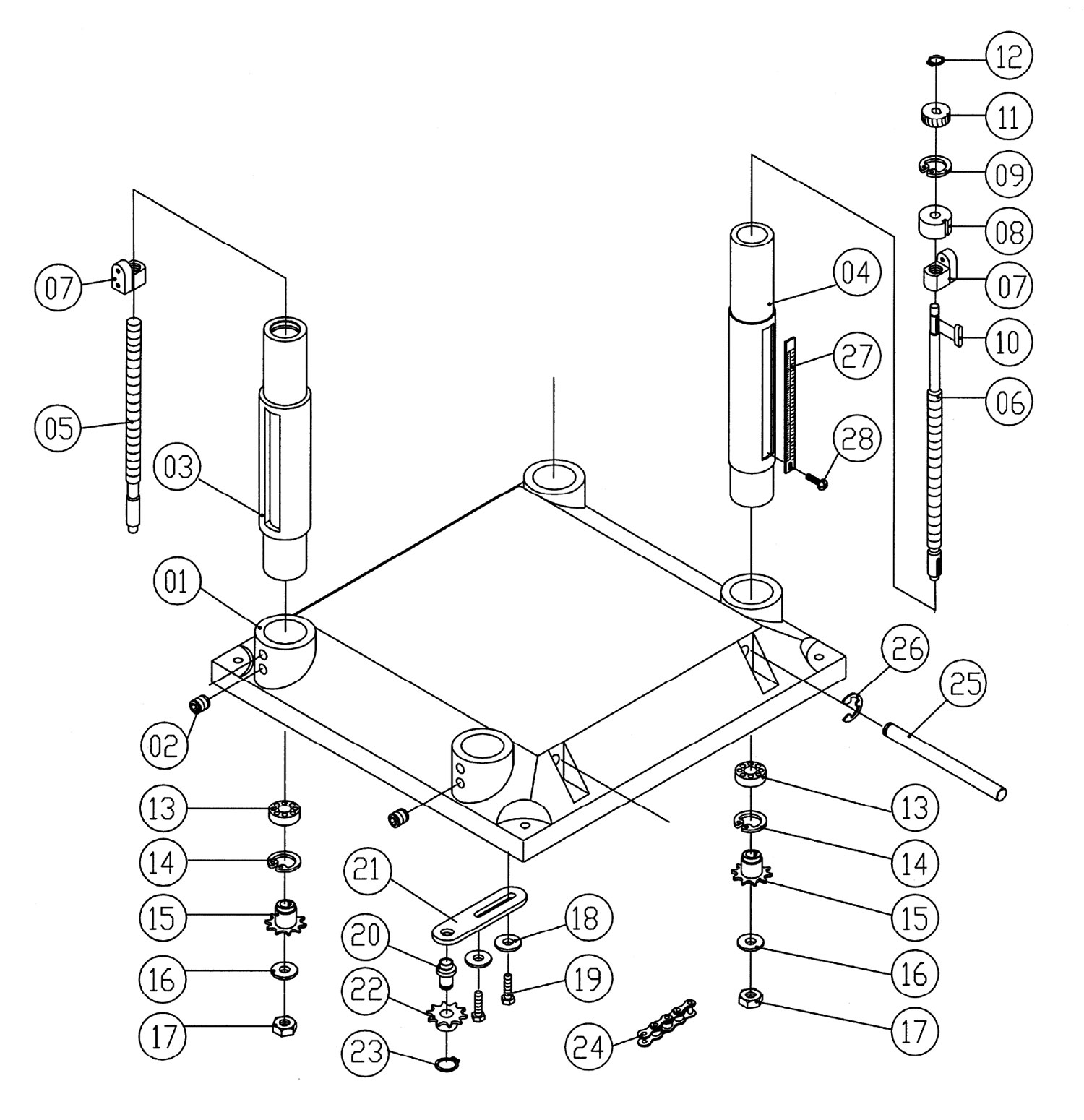

| Fig 2 - 1 | BASE - 15" PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 2 | SOCKET SET SCREW M10X12 |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 2 - 3 | CRANK CASE COLUMN 15 PLANER |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 2 - 4 | COLUMN 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 5 | LEAD SCREW 15 PLANER |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 2 - 6 | CRANK LEAD SCREW 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 7 | NUT LEAD - 15 PLANER |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 2 - 8 | BUSHING - 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 9 | RETAIN RING INTERNAL RTW38 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 11 | GEAR - 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 12 | RETAIN RING STW 10 - 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 14 | RETAIN RING INTL RTW35 15 PLANER |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 2 - 15 | SPROCKET - PJA-B09 15 PLANER |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 2 - 16, Fig 5 - 22 | n/a |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 2 - 20 | SHAFT PJA-B17 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 21 | BRACKET TENSION - PJA-B11 15PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 22 | SPROCKET - PJA-B10 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 23 | RETAIN RING STW 15 -5FA-A10 15PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 24 | CHAIN 410-134 5GF-134 15PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 25 | BAR LIFTING PJB-B06 15 PLANER |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 2 - 26 | E-RING ETW 12 - 5FC-A13 15PLANER |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 2 - 27 | SCALE - PJB-B04 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 28 | SCREW PAN HD M3-0.5P-6 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 4 | ADJUSTER ECCENTRIC PJA-B14 15PLANER |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 3 - 5, Fig 5 - 6 | SOCKET SET SCREW M6X12 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 3 - 6 | NUT LOCK PJA-C51 15" PLANER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 7 | SHAFT THREAD PJA-C17 15 PLANER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 8 | BUSHING LOCK -PJA-C18 15 PLANER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 9 | KNOB M12-1.75 P-PJA-C20 15 PLANER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 19 | SOCKET SET SCREW M8X10 |
6 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "6" or more to proceed. |
||
| Fig 3 - 20 | INDICATOR PJA-C41 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 21 | RIVET 2-5 5FJ-FO5 15 PLANER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 4 - 1 | SOCKET HD CAP SCREW M8X50 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 4 - 2 | SEAL OIL TC28-40-8 5IC-A02 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 3 | PLUG NPT PT1/4-19 15 PLANER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 4 - 4 | BOX GEAR PJA-GO1 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 5 | RUBBER GASKET PJA-G02 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 6 | BALL BEARING |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 7 | GEAR HELICAL PJA-G03 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 8 | GEAR 47T PJA-G04 15" PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 9 | Ball Bearing |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 4 - 10 | KEY 5-5-10 5FK-C04 15 PLANER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 4 - 11 | SHAFT SINGLE GEARED 18T 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 12 | SHAFT DOUBLE GEARED 18 22T 15"PLANER" |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 13 | GEAR 71T PJA-GO7 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 14 | KEY 6-6-40 5FK-D15 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 15 | GEAR ASSY PJA-GO8 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 16 | SPRNG 0.6 PJA-GO9 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 17 | STEEL BALL 6 5ID-A28 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 18 | SHAFT GEAR PJA-G10 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 19 | SEAL OIL SC25-47-6 5IC-B04 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 21 | HNDL CLUTCH PJA-G11 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 22 | O-RING P12 5IH-A11 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 23 | COVER GEAR BOX PJA-G12 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 24 | KNOB 32-3/8-16NC 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 25 | HEX CAP SCREW M6X25 |
6 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "6" or more to proceed. |
||
| Fig 4 - 26 | PIN 8-20 PJA-G13 15 PLANER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 4 - 27 | SPROCKET 12T PJA-G14 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 30 | CHAIN 06B-47 5GF-C06 15PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 31 | CLUTCH PJA-G15 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 33 | HEX HD BOLT WITH WASHER M6X12 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 2 | DOOR PJH-S02 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 4 | MOTOR ASSY PJH-SO3 15 15PLNR 3HP&1PH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 5 | STRAIN RELIEF SB9R-2 5MA-LC5 15PLANER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 5 - 7 | KEY 5-5-30 5FK-C13 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 8 | PLATE MOTOR PJC-M03 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 9 | HEX CAP SCREW M8X30 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 5 - 11 | HEX NUT FULL M8 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 5 - 12 | BAR PIVOT PJC-M02 15 PLANER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 5 - 13 | SPACER PJC-M04 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 15 | TENSION BOLT ASSY PJC-MO5 15 PLANER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 16 | NUT HEX M10X1.25P 5BA-A10 15PLANER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 5 - 17 | FLAT WASHER 1/2" |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 5 - 18 | WHEEL PJE-MO5 15 PLANER |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 5 - 19 | HEX CAP SCREW 3/8-16X2-1/2 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 5 - 20 | NUT LOCKING 3/8-16NC 15 PLANER |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 5 - 21 | NUT LOCKING M10 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 27 | SOCKET SET SCREW M6X6 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 5 - 28 | ECCENTRIC CAM |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 5 - 29 | POWERMATIC NAME PLATE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 31 | NARROW STRIPE, 47"L |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 32 | WIDE STRIPE, 47"L |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
