Search Parts:
Only common repair parts are available for purchase. If a part does not have add to cart button it's not available for purchase on Toolbarn. Please do not contact customer service for availability on these items.
| Ref | Part # | Description | Price | Qty |
|---|---|---|---|---|
| HNDWHEEL ASSY |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
|||
| KIT PLATE #27/MDL27 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
|||
| PINION WORM GEAR #27 / SPR27 WD SHPR |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
|||
| SPINDLE ASSY 1/2 INTERC #27 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
|||
| SPINDLE ASSY 3/4 INTERC #27 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
|||
| 90058 SUB ASSY KNO #66 ARBOR SAW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
|||
| Fig 1 - 1, Fig 2 - 37, Fig 8 - 6 | HNDL UV100(#40148)60A JONTR #27/SP27#28 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 3, Fig 2 - 33, Fig 8 - 4 | KNOB #40093(UV101 60A JOINTR#27/SPR27#28 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 4, Fig 2 - 12, Fig 8 - 12 | 5/16-18 JAM NUT PLATED 60A JOINTR #27#28 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 1 - 5 | 5/16 FLAT WASHR ZINC PLA MDL27/SPR27#28 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 1 - 8 | 5/16-18X1 1/2FLAT HD #27/SPR27 WD SHR#28 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 1 - 10 | SPACER ARBORSHIM/3088A431 (113) |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 1 - 11, Fig 1 - 27, Fig 2 - 41 | 5/16-18X3/8SKT ST SCW72A /74A #27/SP27 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 12 | 5/16-18 X 3/4 SOC. CAP SC |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 13, Fig 2 - 7, Fig 8 - 2 | 1/4-20X1/4 KNURL SKT SET SCRW 74A #27#28 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 14, Fig 8 - 1 | KNOB ADJUSTING SCREW * Obsolete * |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 18 | 3/8-16 X 1 SOC. CAP SCREW |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 19 | 90184 DOOR ASSY #27/SPR27 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 20 | 3136018TCH MDL 72A / 74A/#27/SPR27 #6 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 21 | DOOR ASSY SHAPER #27/SPR 26 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 23 | SCALE 70012 MDL 27/ SPR27 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 24, Fig 2 - 38 | 1/4 X 2 3/4 GROOVE PIN 20 DP |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 25 | 801 BLACK NYLON MACH HNDL 20DRILL PRS * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 29 | 1/4-20 HX NUT PLAIN 72A / 74A #66 ARB SA |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 30 | 1/4 REG. LOCK WASHER 72A/74A |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 32, Fig 2 - 21 | 3/8HELIC SPRG LK WASR72A/ 74A 60A #27#66 |
6 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "6" or more to proceed. |
||
| Fig 1 - 33 | 3/8-16X1 HX HD CAP SCRW 72A /74A #27 #66 |
6 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "6" or more to proceed. |
||
| Fig 1 - 34, Fig 2 - 28 | 3/8 FLT WSHR ZINC PLTED .44 ID X 1.00 OD |
9 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "9" or more to proceed. |
||
| Fig 1 - 35 | STAND ASSY SHAPER #27/SPR27 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 37 | COVER MTR ASSY SHAPER #27 SPR27WD SHR |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 38 | 1/4-20X5/8 HX WASR HD SCRW74A #27/SPR27 |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 1 - 40 | PLATE SHAPER #27/SPR27 WD SHAPER* * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 41 | PIN STARTER SHAPER #27/SPR27 WD SHAPER * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 42 | SCREW SET 25 2 #27/SPR27 WD SHAPER #28 |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 1 - 43 | 1/4-20X1 FILL HD MS #27/SPR27 WD SHPR#28 |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 1 - 44 | INSERT RING SHPR #27/SPR27 WD SHPR * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 45 | CAP SHAPER #27 / SPR27 WD SHAPER * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 46 | RIVET SOUTH CO ALUM 5/32 #27/SPR27 #28 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 49 | SCREW RD HD DRIVE 4 X 3/1 #27/SPR27 #28 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||

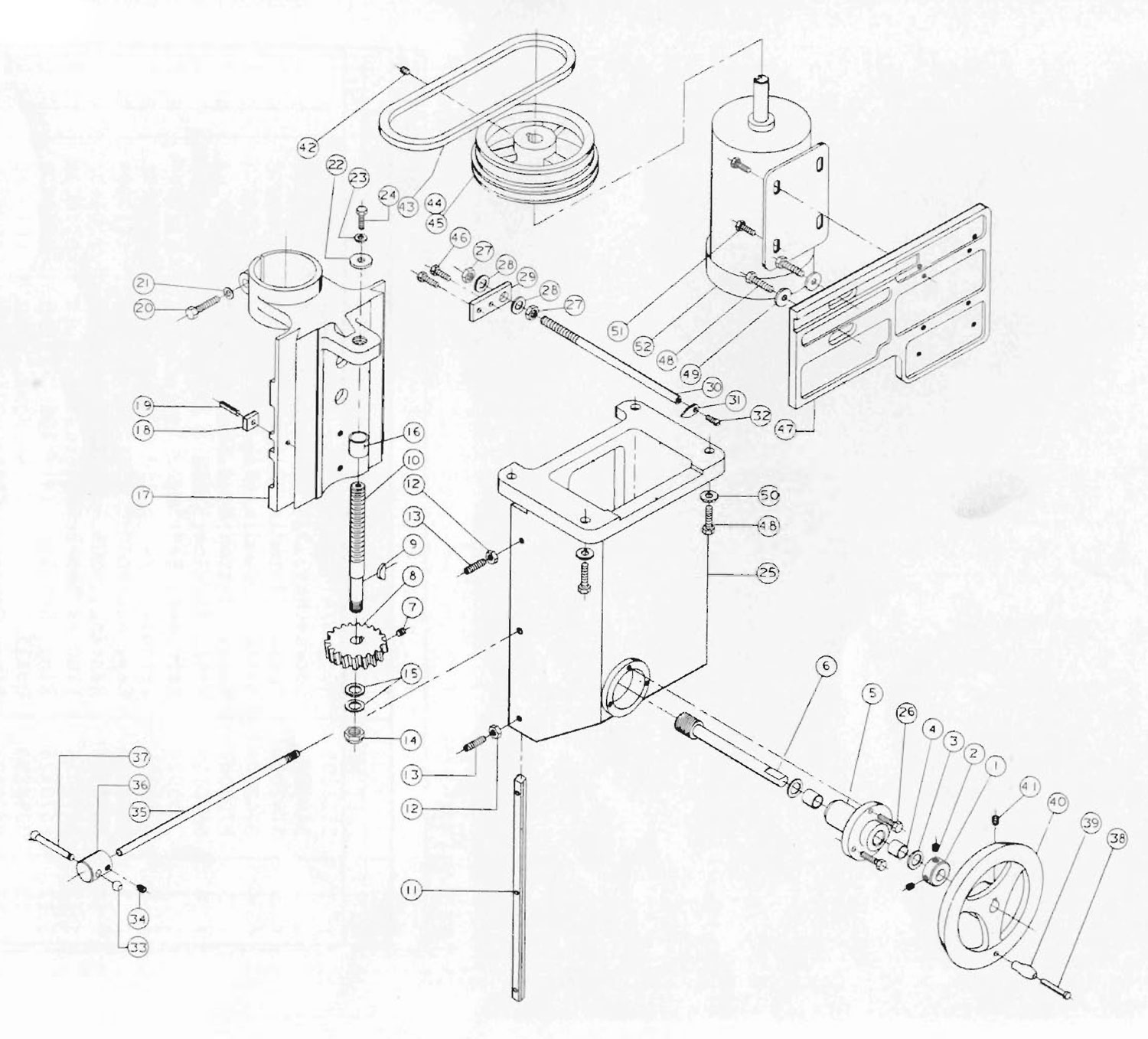

| Fig 2 - 1 | CLLR #40092 72A / 74A #27/SPR27 #66 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 2 | Set Screw 5/16-18X1/4 (3520A) |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 2 - 3 | FT NYLATRON WASH E12 3/4 I.D.72A/74A#66 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 2 - 4 | BUSHING #101380 #27/SPR27 WD SHAPER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 2 - 5 | ADJUST SHAFT BUSHING#27/SPR27 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 6 | PINION #27/SPR27 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 8 | GEAR HD SPIRAL #27/SPR27 WD SHAPER #28 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 9 | #606 WOODRUFF KEY #27/SPR27WD SHPR#28 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 10 | SCREW ELEVATING #27/SPR27 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 11 | GIB HD SLIDE #27/SPR 27 WD SHAPER #28 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 13 | 5/16-18 X1 SCKT HD ST #27/SPR27 W SHPR#2 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 2 - 14 | 5/8-11 FLX LOK NUT (TEXT) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 15 | WASHER #95606A240 #27/SPR27 WD SHAPER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 2 - 16 | SPACER ELEV SCREW #27/SPR27 W SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 18 | KEY MOTOR BASE #27/SPR27 W SHPR#28 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 2 - 19 | 3/16 X 1/2 SPRG PIN #27/SPR27 WD SPR #28 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 2 - 20 | 3/8-16X11/2 HEX HD SCW72A /74A/#27#66#28 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 23, Fig 8 - 11 | 5/16 MD LK WASHR72A 74A 27/SPR27/#66#28 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 2 - 24 | SCRW 5/16-18X3/4 L HEX #27/SPR27 W SH#28 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 26 | HEX CAP SCREW 5/16-18X1 1/4 MDL13 EDSND |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 2 - 27 | 3/8-16HX JAM NUT PLN 72A /74A #27#66#28 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 2 - 30 | ROD POINTER #27/SPR27 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 31 | POINTER #27/SPR27 WD SHAPER#28 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 32 | 6/32X1/4 RD HD M.S. P #27/SPR27 W SPR#28 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 34, Fig 2 - 42 | 5/16-18X5/16SKT HD PT ST SCRW72A /74A#66 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 36 | HUB LOCK SHAFT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 43 | BELT 7M710 GATES POLYFLEX |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 44 | SHEAVE MOTOR 1 1/8 BORE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 45 | SHEAVE MOTOR 7/8 IN |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 46 | 1/4-20X1/2 HEX HD SCRW 72A /74A #27 SHPR |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 2 - 47 | SHAPER MOTOR BASE #27/SPR27 WD SHPR |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 48 | 1/2-13 X1 1/2 HEX HD CA #27/SPR27 WD SPR |
6 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "6" or more to proceed. |
||
| Fig 2 - 49 | WASHER 1200 77 #27/SPR 27 WD SHPR#28 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 2 - 50 | 1/2SPRG LK HELICWASHR72A/74A #27SHPR#28 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 2 - 52 | MOTOR 1 1/2HP 1PH 3600 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 52 | MOTOR 1-1/2 HP 3PH 3600 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 52 | BALDOR MOTOR 2HP 1PH 3600RPM 60A JOINTER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||

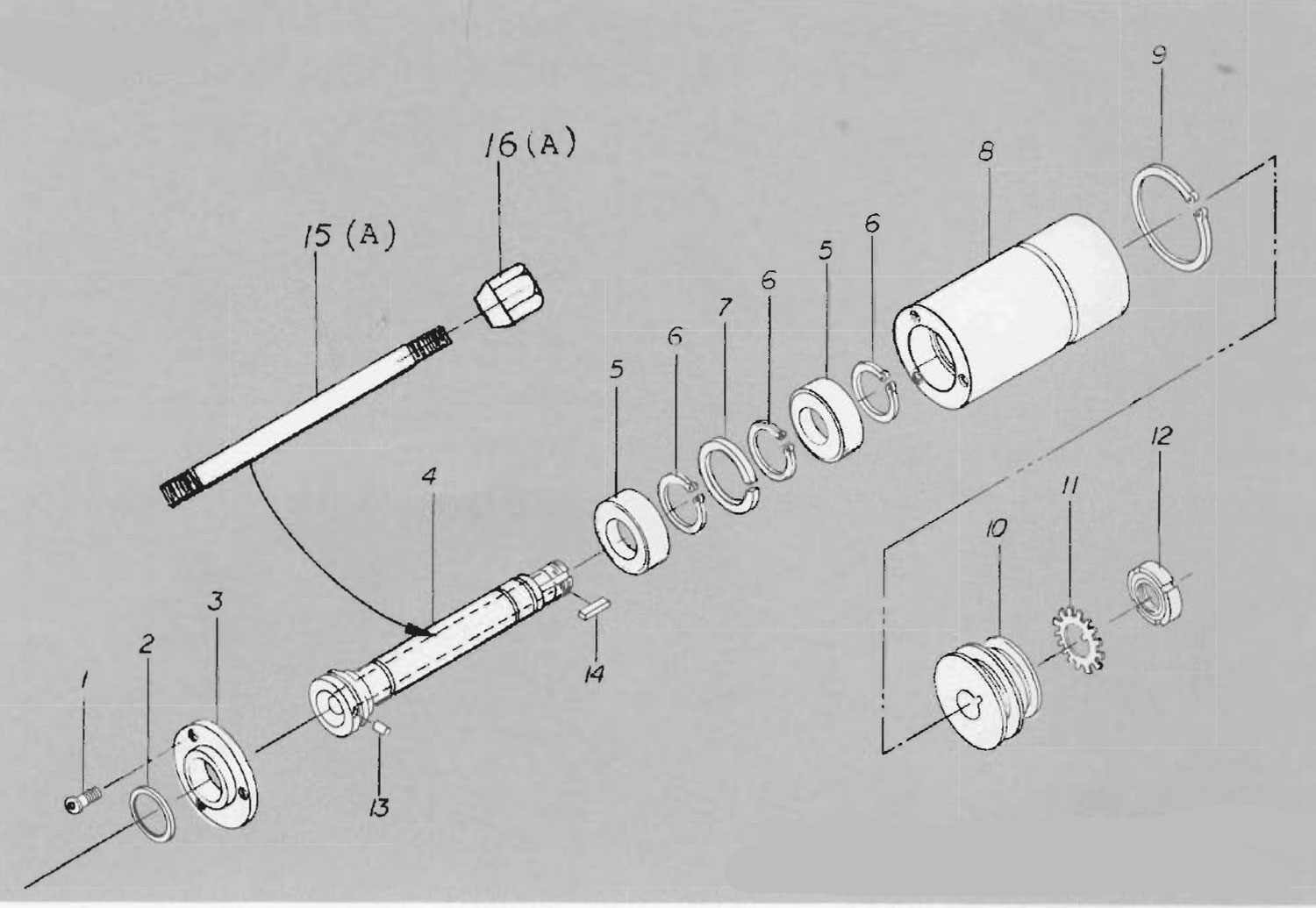

| Fig 3 - 1, Fig 6A - 1 | NUT 3/4 SPINDLE #27/SPR27 WD SHPR * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 2, Fig 6A - 2 | LOCKWASHER 3/4 SPINDLE #27 WD SHPR |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 3, Fig 6A - 3 | SPACER SPDL 3/4 X 1/2 #27 WD SHAPER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 4, Fig 6A - 4 | SPACER SPDL 3/4 X 3/4 #27 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 6, Fig 4 - 6, Fig 5 - 2 | RING RET RSN-137 #27 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||

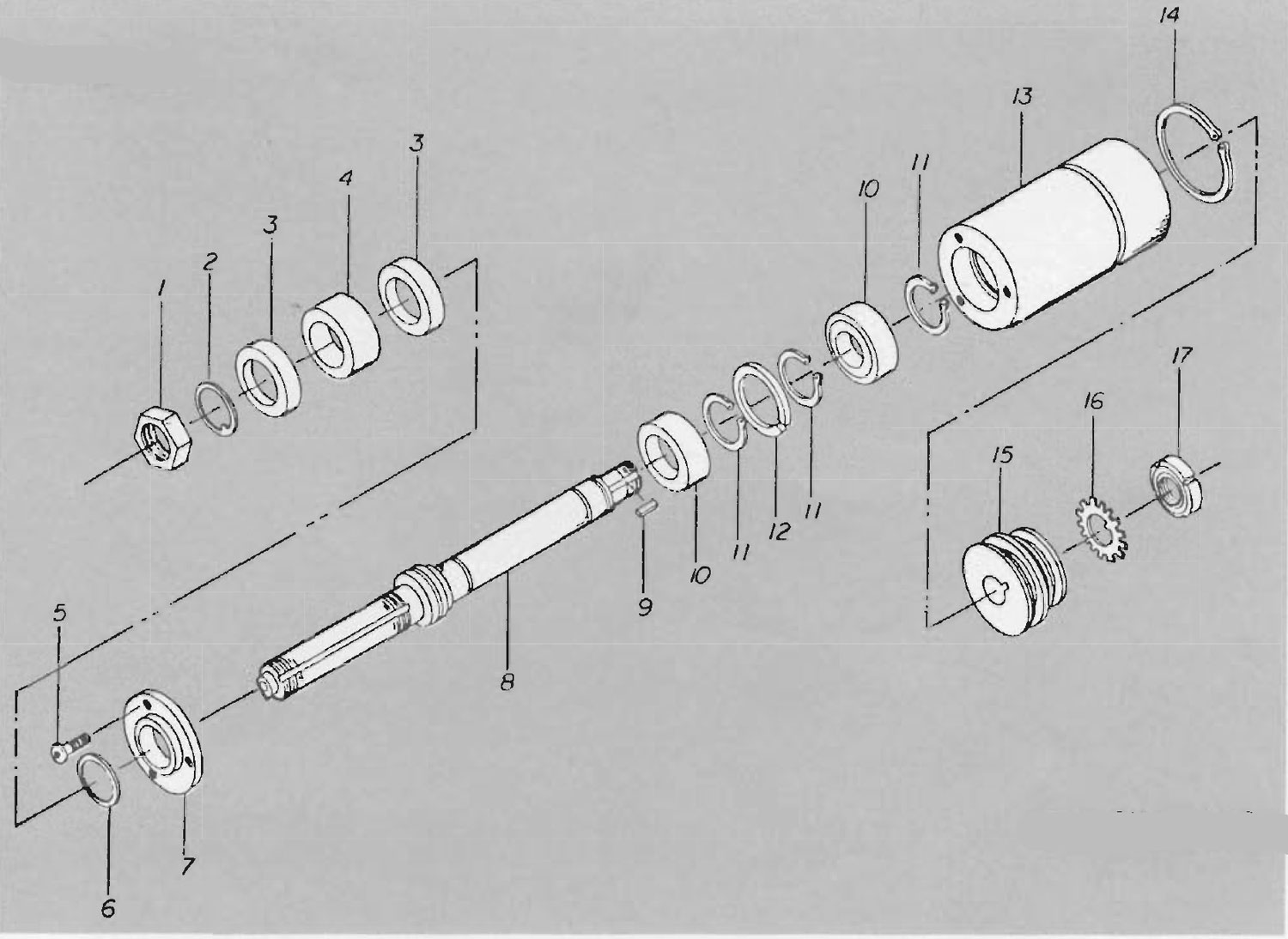

| Fig 3 - 9, Fig 4 - 9, Fig 5 - 14 | KEY SQUARE 3/16X1/2#27 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 10, Fig 4 - 10, Fig 5 - 10 | BEARG/205PP/W-NYLON RET FAF C3#27 WD SHR |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 11, Fig 4 - 11, Fig 5 - 6 | RET.RING-TRUARC/5100-98 #27 WD SHAPER |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 3 - 12, Fig 4 - 12, Fig 5 - 7 | 5000-206 RET. RING #27 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 15, Fig 4 - 15, Fig 5 - 10 | SHEAVE SPINDLE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 16, Fig 4 - 16, Fig 5 - 11 | W-04 BEARING LOCK WASHER 74A #27 WD SHPR |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 17, Fig 4 - 17, Fig 5 - 12 | NUT BEARING LOCK N-04 74A #27 WD SHPR |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 1 | NUT 1 IN SPINDLE #27 WD SHAPER * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 2 | LOCKWASHER 1 SPINDLE #27 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 3 | SPACER SPDL 1 X 1/2 #27 WD SHAPER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 4 - 4 | SPACER SPDL 1 X 3/4 #27 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 4 | SPINDLE INTERCHNGABL #27 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 13 | PIN DOWEL 25 105 #27/SPR27 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 15 | DRAWBAR SPINDLE #27/SPR27 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 16 | NUT DRAW BAR 40236 #27/SPR27 WD SHAPR |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 1 | NUT 1/2 #27 WD SHAPER * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 2 | LOCK WASHER 1/2 SPINDLE #27 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 6 - 3 | SPACER SPDL 1/2 X 1/2 #27 WD SHAPER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 6 - 4 | SPACER SPDL 1/2 X 3/4 #27 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 7 - 7 | WRENCH SPINDLE #27 WD SHAPER#66 #28 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 7 - 8 | WRENCH QUILL #27 WD SHAPER # * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 8 - 3 | 3/8-16 X 11/2 SLOTTED HE 60A JOINTR #28 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 8 - 7 | 5/16-18 X 3/4 HEX HD CAP |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 8 - 15 | 3/8-16 X 1/2 SOC. SET SCR KNURL CUP PT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 9 - 1 | MITER GAUGE HANDLE KNOB * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 9 - 2 | 1/4 FLT WSHR 60A JONTR #66#28 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 9 - 5 | 6/32X1/2 RD. HD MACH. SCREW |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 9 - 6 | SCREW MITER GAUGE LOCK #28 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 9 - 7 | 6/32 X 3/4 RD. HD M.S. P #28 WD SHPR |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 9 - 9 | PIN STOP #28 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 9 - 10 | 1/4X1SLD DWL PN72A74A#66 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 10 - 4 | 5/16-18 X 1/2 SCKT SET SC KN PT #27 WD S |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
