| Ref | Part # | Description | Price | Qty |
|---|---|---|---|---|
| Fig 1 - 2 | GUARD BELT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 7 | 10-24 X 1/2 TRUSS HD SCR |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 1 - 8 | 5/16-18 X 1/2 HEX HD CAP #66 ARBOR SAW |
5 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "5" or more to proceed. |
||
| Fig 1 - 9, Fig 2 - 24, Fig 4 - 2, Fig 5 - 6, Fig 5 - 26 | 1/4 FLT WSHR 60A JONTR #66#28 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 11 | 5/16-18 X 3/4 HEX HD CAP |
6 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "6" or more to proceed. |
||
| Fig 1 - 12 | 5/8-11 HEX JAM NUT PLAIN |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 15, Fig 2 - 8 | 1/4-20 X 3/16 SOC. SET SC |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 1 - 18 | 5/16 FLT WASHR N SERIES 66 72 74 20DR |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 1 - 20 | 5/16-18HX NUT PLAIN72A /74A #66 AR SA#28 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 1 - 21, Fig 5 - 14 | SHEAVE AK30 7/8 BORE |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 25, Fig 2 - 41, Fig 5 - 5 | 1/4-20X1/2 HEX HD SCRW 72A /74A #27 SHPR |
6 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "6" or more to proceed. |
||
| Fig 1 - 27 | MOTOR 1 1/2HP 3PH 18 (GREY) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||

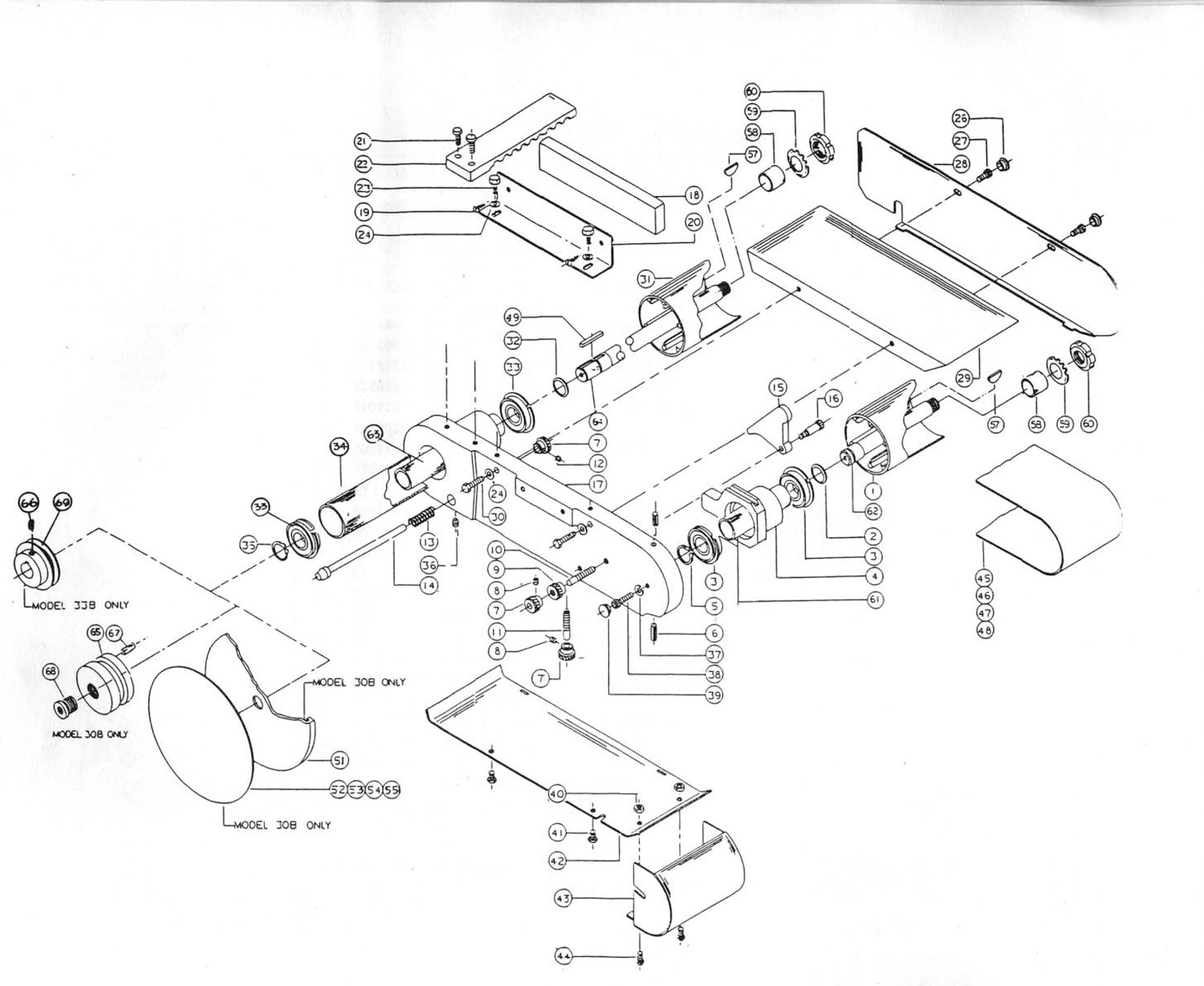

| Fig 2 - 2, Fig 2 - 32 | WASHER CURVE SPR (U750-0210) |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 2 - 3, Fig 2 - 33 | BEARING NTN 6204LLBNRC3 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 2 - 4 | HOUSING BRG IDLER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 5, Fig 2 - 35 | RING RETAINING #5100 75 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 6 | 1/4 X 1 SPRNG PIN 60A JOINTER |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 2 - 7 | KNOB ADJUSTING SCREW * Obsolete * |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 2 - 9 | KNOB BELT ADJ SCREW LOCK |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 10 | SCREW BELT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 11 | SCREW BELT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 12 | SLOT HD STEEL SETSCRW 1/4-20X1/4 74A |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 13 | SPRNG ASC C0600 059 100 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 14 | PLUNGER STOP |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 15 | ARM ROCKER * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 19 | SCREW WD RD HD 10 X 5/8 MDL27/SPR27#28 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 2 - 21, Fig 5 - 24 | 1/4-20 X 1 HEX HD CAP SCREW |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 2 - 23, Fig 3 - 13, Fig 5 - 18 | 1/4-20X3/4 HEX HD SCREW 14TILT ARB SAW |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 2 - 26 | (94052A134) KNOB |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 2 - 27 | 1/4-20 X 1/2 SOC. CAP SCR |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 2 - 29 | BED SNDR |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 36, Fig 5 - 50 | 3/8-16 X 1/2 SOC. SET SCR KNURL CUP PT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 37 | #10 LOCK WASHER PLAIN ST |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 38 | 10-24 X 1/2 SOC. CAP SCRE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 39 | KNOB PL BLK MCM #94052A131 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 40 | #10-24 HEX NUT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 42 | PANEL BOTTOM |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 43 | GUARD BELT WELDMENT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 44 | 10/24 X 1/4 TRUSS HD SCRE |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 2 - 46 | BELT ALUM. OXIDE 50 GRIT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 48 | BELT 6X48 40 GRIT #827 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 51 | DISC SANDING MACH * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 54 | DISC #47440 40-GRIT |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 55 | DISC 12 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 57 | #607 WOODRUFF KEY |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 58 | BUSHING #SS-2836-18 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 59 | W-04 BEARING LOCK WASHER 74A #27 WD SHPR |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 2 - 60 | NUT BEARING LOCK N-04 74A #27 WD SHPR |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 2 - 61 | SPACER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 62 | SHAFT IDLER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 63 | SPACER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 64 | SHAFT DRIVE * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 65 | SHEAVE * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 66 | 5/16-18 X 1/2 SCKT SET SC KN PT #27 WD S |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 67 | 1/4 X 5/8 SPRNG PIN 72A / 74A |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 68 | SCREW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||

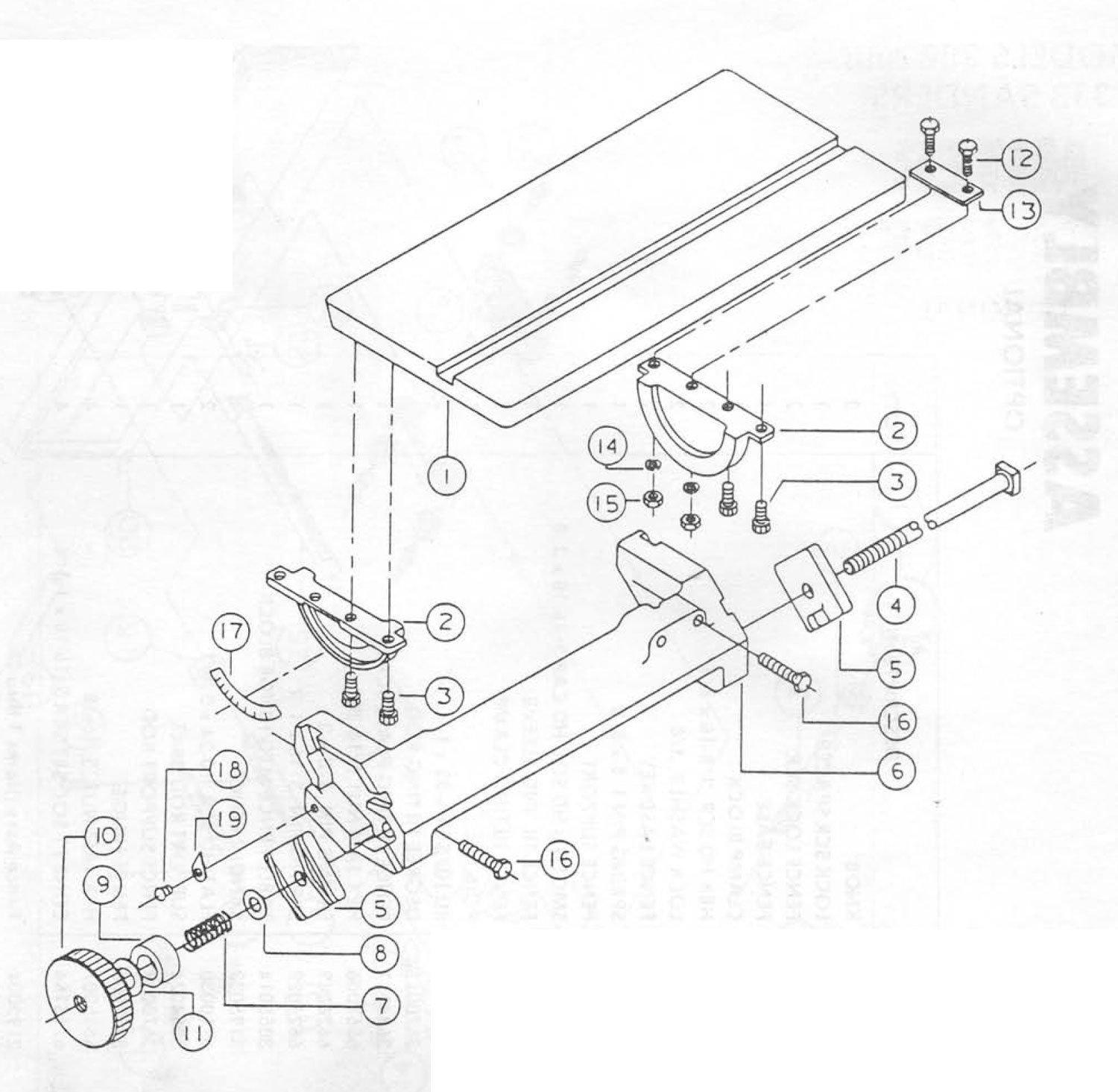

| Fig 3 - 2 | TRUNNION |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 3 - 6 | BRACKET TRUNNION TABLE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 8, Fig 5 - 56 | 3/8 FLT WSHR ZINC PLTED .44 ID X 1.00 OD |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 9 | SPACER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 10 | KNOB |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 11 | 1 X 9/16 X 1/16 WASHER #6 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 14 | 1/4 REG. LOCK WASHER 72A/74A |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 15, Fig 5 - 7, Fig 5 - 19, Fig 5 - 25, Fig 5 - 51 | 1/4-20 HX NUT PLAIN 72A / 74A #66 ARB SA |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 17 | DECAL SCALE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 18 | SCREW RD HD DRIVE 4 X 3/1 #27/SPR27 #28 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 19 | POINTER #27/SPR27 WD SHAPER#28 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||

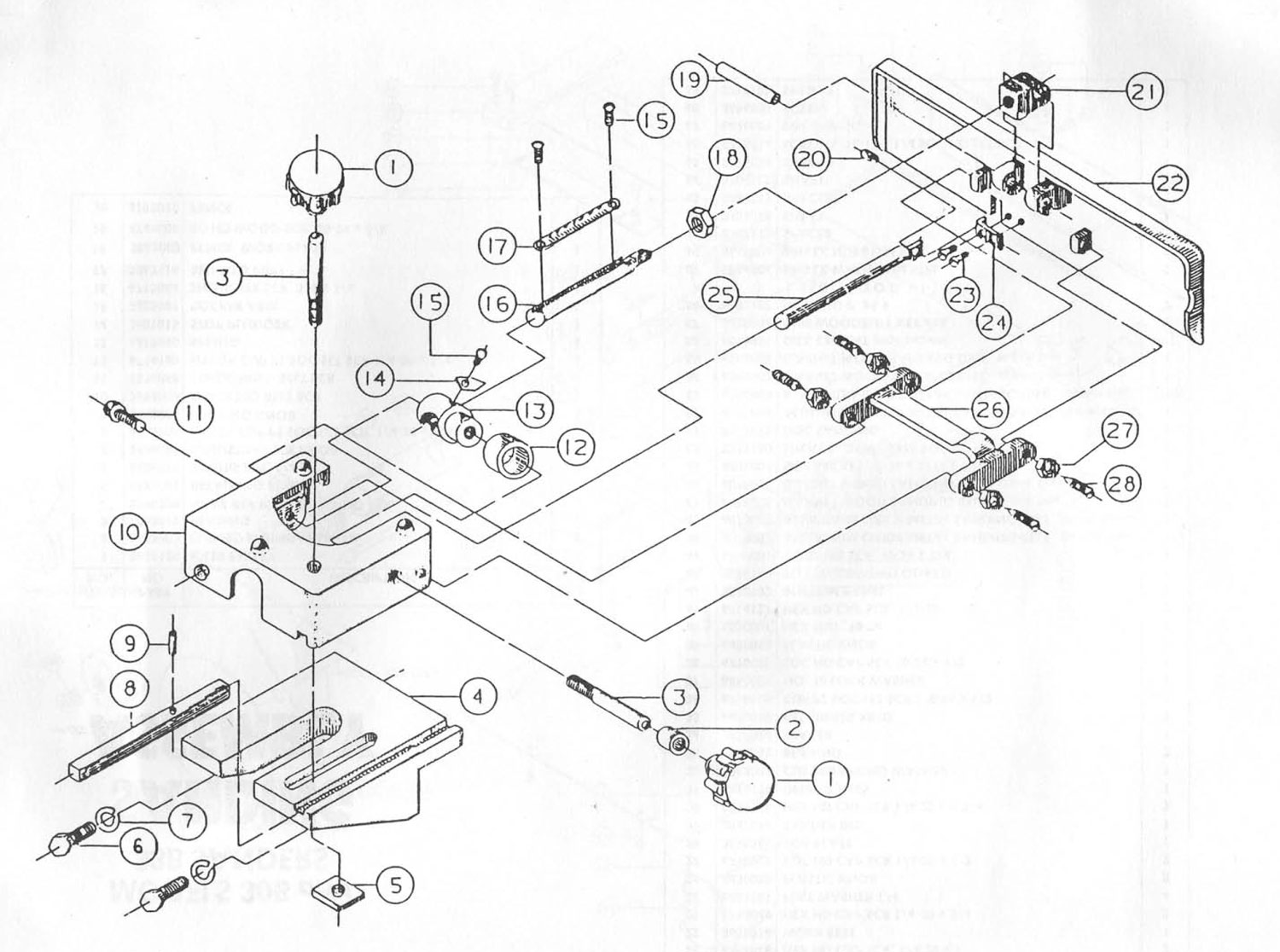

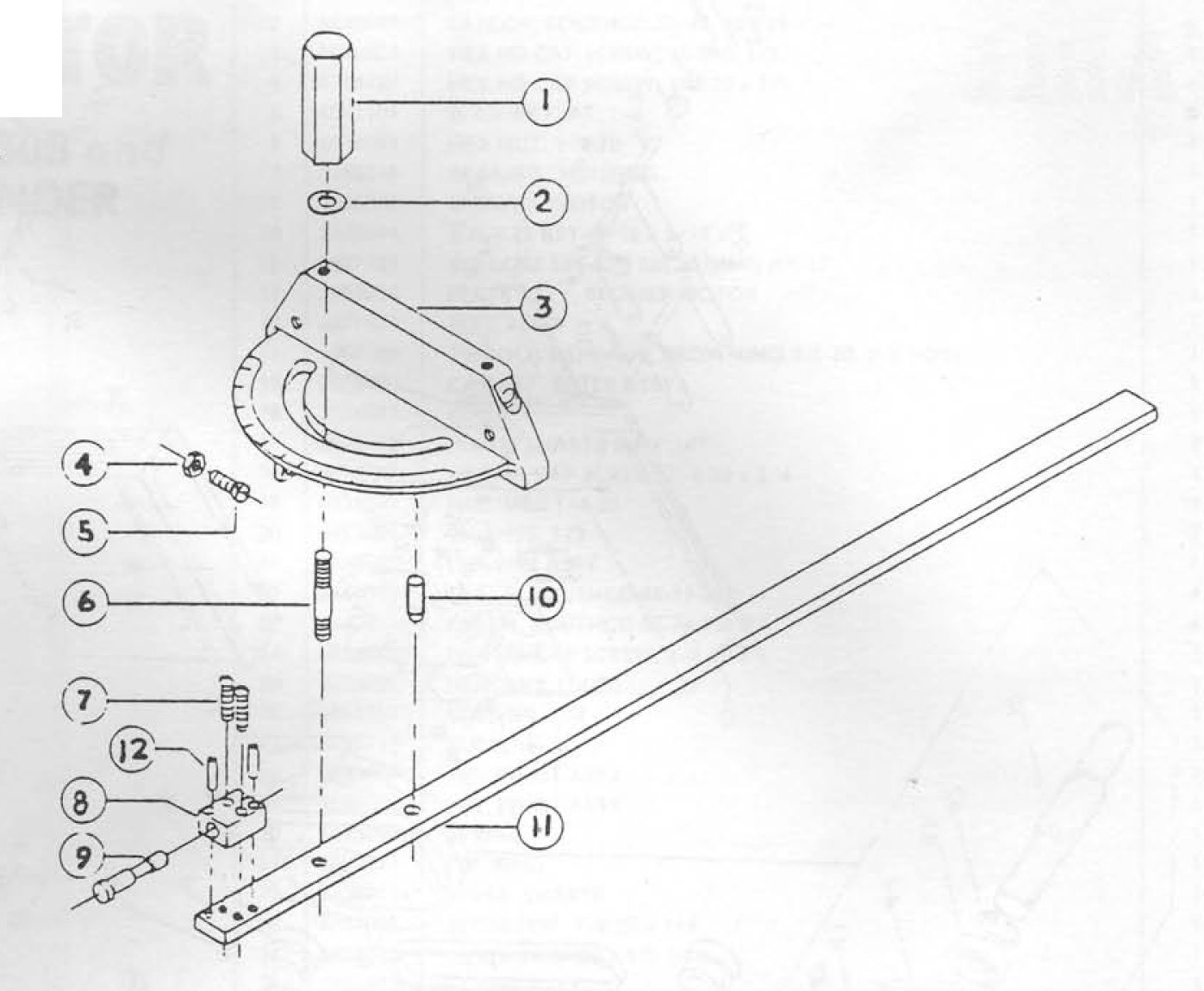

| Fig 4 - 1 | MITER GAUGE HANDLE KNOB * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 5 | 6/32X1/2 RD. HD MACH. SCREW |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 4 - 6 | SCREW MITER GAUGE LOCK #28 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 7 | 6/32 X 3/4 RD. HD M.S. P #28 WD SHPR |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 4 - 9 | PIN STOP #28 WD SHAPER |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 10 | 1/4X1SLD DWL PN72A74A#66 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 12 | 1/8 X 3/4 SPLIT PIN |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||

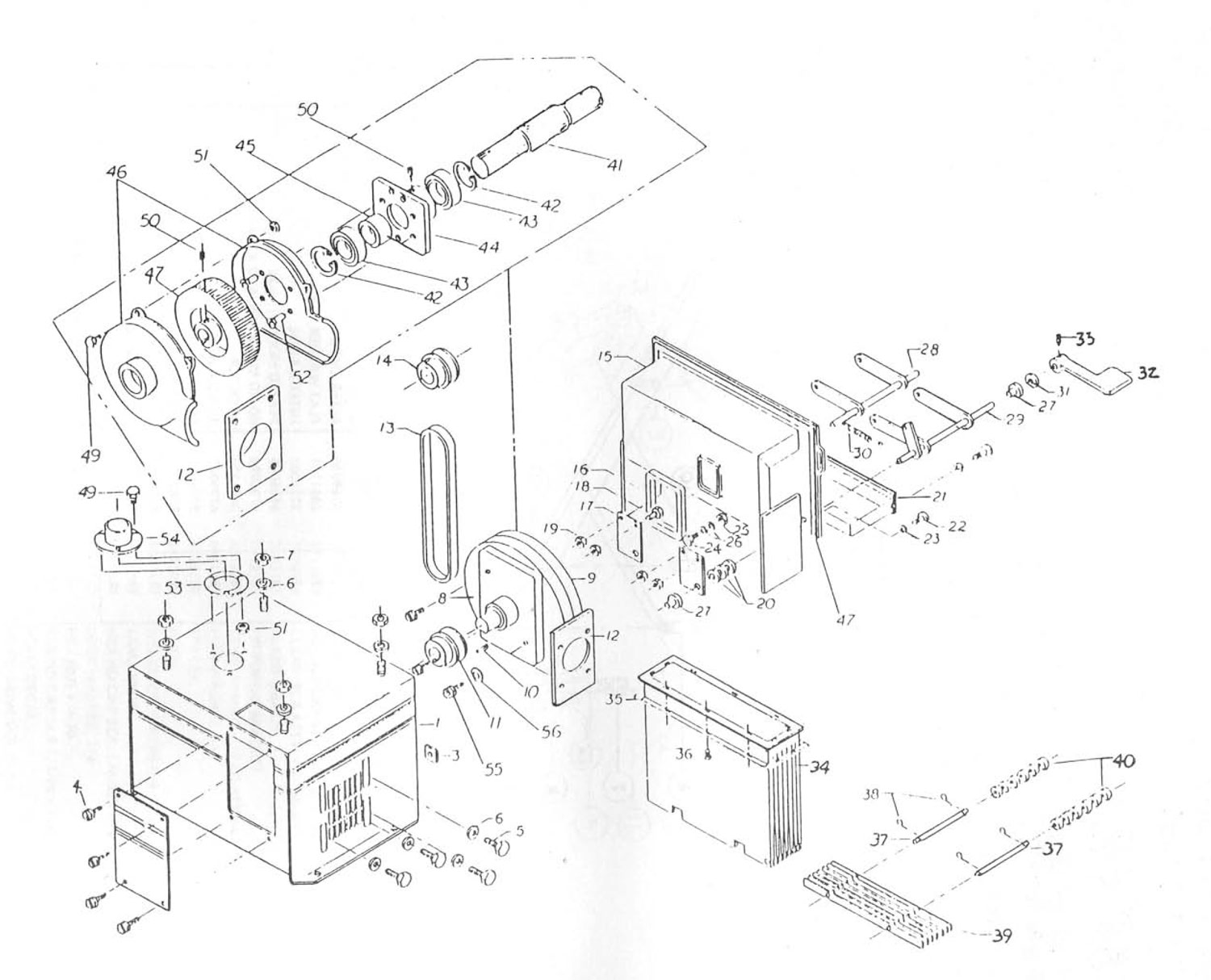

| Fig 5 - 13 | BELT 4L350 VARIABLE DRIVE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 20 | 1/2 FLT WASR PLAIN 72A / 74A 60AJONTR#66 |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 5 - 35 | (MDL 209) EXTENSION TABLE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 36 | 1/4-20X5/8 HX WASR HD SCRW74A #27/SPR27 |
10 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "10" or more to proceed. |
||
| Fig 5 - 42 | RING RET. #5100-62 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 5 - 43 | BEARING NTN 6203LLBC3 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 5 - 55 | 3/8-16 X 1/2 HEX HD CAP |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
