Powermatic 54A 6 Inch Woodworking Jointer, 1Hp 1Ph 115/230V

Parts for:

Powermatic 54A 6 Inch Woodworking Jointer, 1Hp 1Ph 115/230V

Search Parts:

Only common repair parts are available for purchase. If a part does not have add to cart button it's not available for purchase on Toolbarn. Please do not contact customer service for availability on these items.
Please scroll left/right table for more info!
Ref Part # Description Price Qty
MOBILE BASE FOR 54A JOINTER
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

INSERTS FOR SHELIX HEADS (PACK OF 10)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

KIT TOOL
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

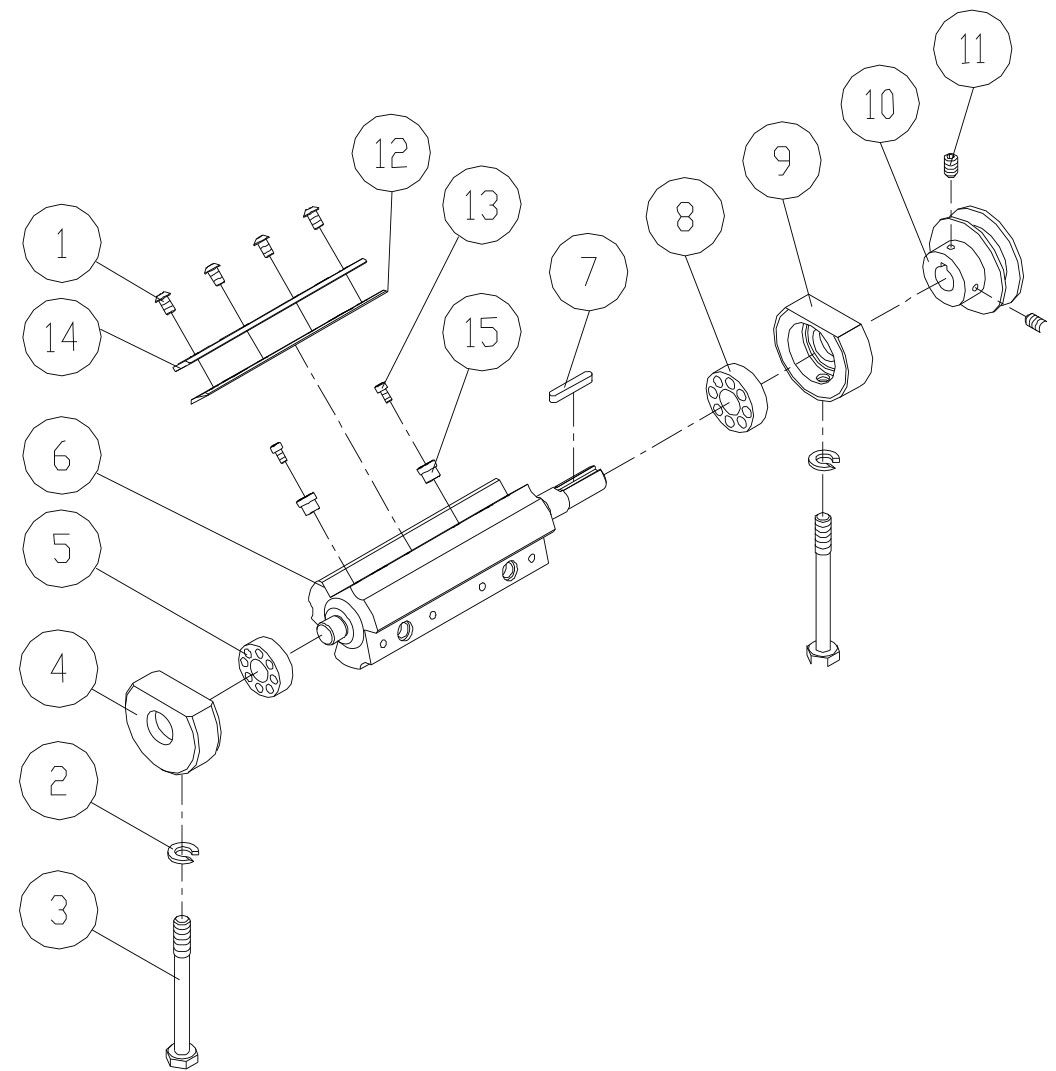

CUTTERHEAD ASSEMBLY (INDEX #'S 1-15)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

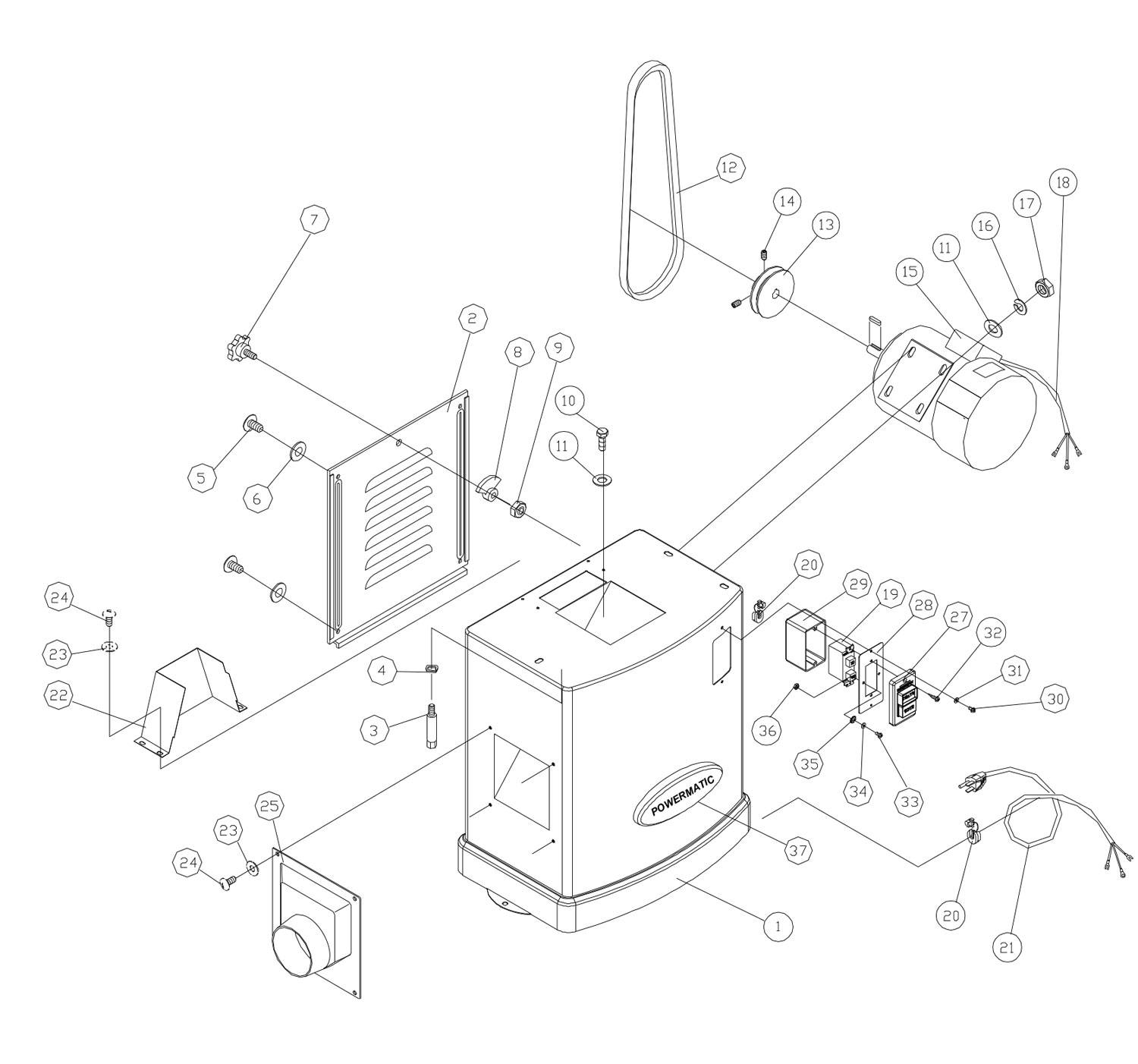

Fig 1 - 1 STAND
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 2 JEB-S13 DOOR DUST REMOVAL
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 3 JEA S05B BOLT LOCK
3 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "3" or more to proceed.

Fig 1 - 4 5E1 B06 WASHER SPRNG 3/8X5/8
3 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "3" or more to proceed.

Fig 1 - 5 SCREW 1/8-40 X 3/8 LG
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 1 - 6 FLAT WASHER 1/8X3/8X1/32
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 1 - 7 JEK-SO3 KNOB ADJUSTING SCREW
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 8 JEB-S14 LOCK DOOR
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 9 5DA-E09 NUT HEX
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 10 5CA-F10B BOLT HEX HD 5/16-18X3/4
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 1 - 11 5EB A11 WASHER 5/16X3/4X1/16
8 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "8" or more to proceed.

Fig 1 - 12 V-BELT (VB-A40)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 13 MOTOR PULLEY
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 14 5CC D04A SCREW SET 1/4-20X1/4 60A
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 15 MOTOR 115V 60 HZ 3450 RPM 1HP/1PH
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 16 5EB-BO5 WASHER SPRNG 5/16X5/8
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 1 - 17, Fig 2 - 46, Fig 3 - 14 5DA-B07 NUT HEX 5/16-18 8JOINTER 60A
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 18 MOTOR CORD
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 19 SWITCH
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 20 5MA-I04 STRAIN RELIEF
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 21 JES-SO1 POWER CORD
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 22 BELT GUARD
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 23 5EB A06 WASHER FLAT
8 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "8" or more to proceed.

Fig 1 - 24, Fig 2 - 6 5CD D06B SCREW HNDL 1/4-20 X 1/2
8 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "8" or more to proceed.

Fig 1 - 25 DUST ADAPTOR 8 JOINTER 60A * Obsolete *
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 26 5FK-C13 KEY 5X5X30
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 27 SWITCH PUSH BTTNS
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 28 SWITCH COVER
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 29 SWITCH BOX
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 30 SCREW PAN HD #10-24 X 1/2 LG
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 31 WASHER 3/16 X 1/2 X 1/32
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 32 SCREW M4 X 1.59P X 38MM LG
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 33 SCREW PAN HD #8-32 X 5/8 LG
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 34 FLAT WASHER 5/32 X 3/8 X 1/32
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 35 STAR WASHER BW-4 5/32 X 3/8
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 36 NUT #8-32
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 37 POWERMATIC NAMEPLATE
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 38 WARNING LABEL 54A
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 39 WIDE STRIPE, 47"L
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 40 NARROW STRIPE, 47"L
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

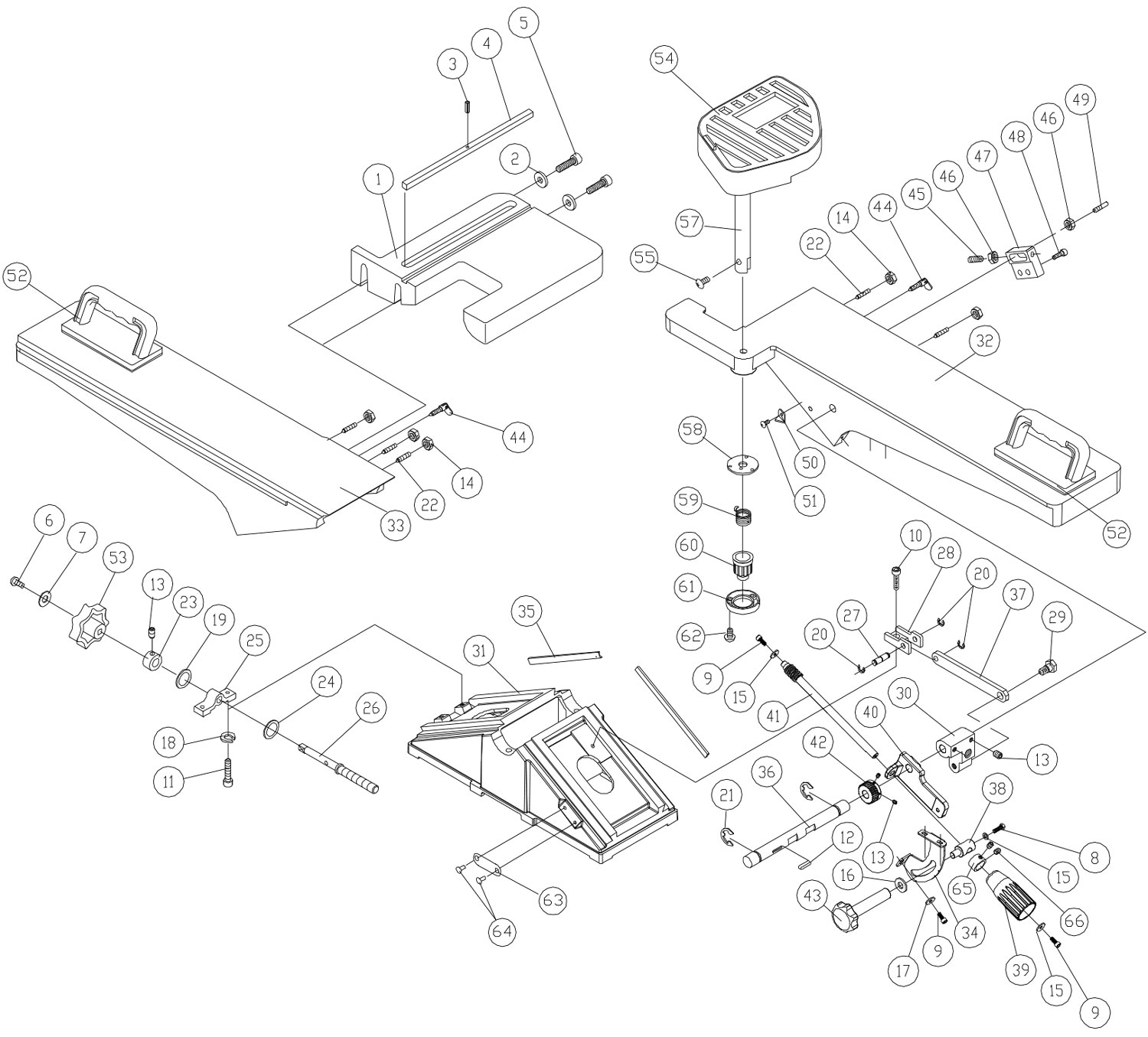

Fig 2 - 1 BASE SLIDE * Obsolete *
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 3 SPRING PIN 4MM X14MM LG (1 REQ)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 5 5CB-H12A SCREW CAP3/8-16X1-1/2
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 7 FLAT WASHER 1/4
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 9 CAP SCR 1/4-20 X 1/2 LG (5 REQ
5 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "5" or more to proceed.

Fig 2 - 10 SOCKET HD CAP SCREW 5/16-18X3/4
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 11 SOCKET HD CAP SCREW 5/16-18X2
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 12 KEY 5MM X 5MM X 20MM
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 13 5CC D04A SCREW SET 1/4-20X3/8
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 2 - 14 5DA B05 NUT HEX1/4-20
5 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "5" or more to proceed.

Fig 2 - 15 FLAT WASHER 1/4 X 1/2 X 1/32
3 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "3" or more to proceed.

Fig 2 - 16, Fig 3 - 2 FLAT WASHER 13X28X3MM
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 17 SPRING WATER 6.5MM
3 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "3" or more to proceed.

Fig 2 - 18 5EA B05 WASHER SPRNG 8.2MMX15.4MM
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 20 RETAINER RING ETW-6 8"JOINTER MDL60A
3 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "3" or more to proceed.

Fig 2 - 21 RET. RING ETW-12 60-A JOINTER
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 22 5CC D10 SCREW SET 1/4-20X1NC
5 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "5" or more to proceed.

Fig 2 - 24 JEA B26 WASHER COPPER
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 25 JEA B27 BRACKET
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 26 JEA B25 SCREW ADJ.
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 28 LOCK BRACKET
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 30 BRACKET
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 31 BASE
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 32 FRONT TABLE (TEXT)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 33 REAR TABLE (TEXT)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 34 PLATE
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 35 GIB
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 36 SHAFT
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 37 PLATE
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 38 LOCK PLATE
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 39 HNDL
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 40 ADJUSTING BASE
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 41 WORM SHAFT
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 42 WORM
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 43 NUT
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 44 5CP D10A SCREW
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 45 SET SCREW 60-A JOINTER 5/16-18X3/4
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 47 SET BLOCK
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 48 CAP SCREW 60-A JOINTER 5/16-18X3/4 8
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 49 STUD
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 50 POINTER
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 51 PAN HD SCREW 5/32-32 X 1/4 LG
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 53 JEA B29 WHEEL HNDL
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 54 CUTTER HD GUARD
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 55 MACH SCREW PAN HD PHILLIPS M5X10
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 57 JEA B18B POST GUARD
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 58 JEA B19 WASHER RETAINING
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 59 JEA B20 SPRNG
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 60 JEA B21 KNOB SPRNG
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 61 JEA B22 RETAINER
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 62 5CD B07B SCREW RETAINER
3 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "3" or more to proceed.

Fig 2 - 64 RIVET
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 65 CLLR 54A
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 66 SET SCREW 1/4-20 X 1/4 LG 54A
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

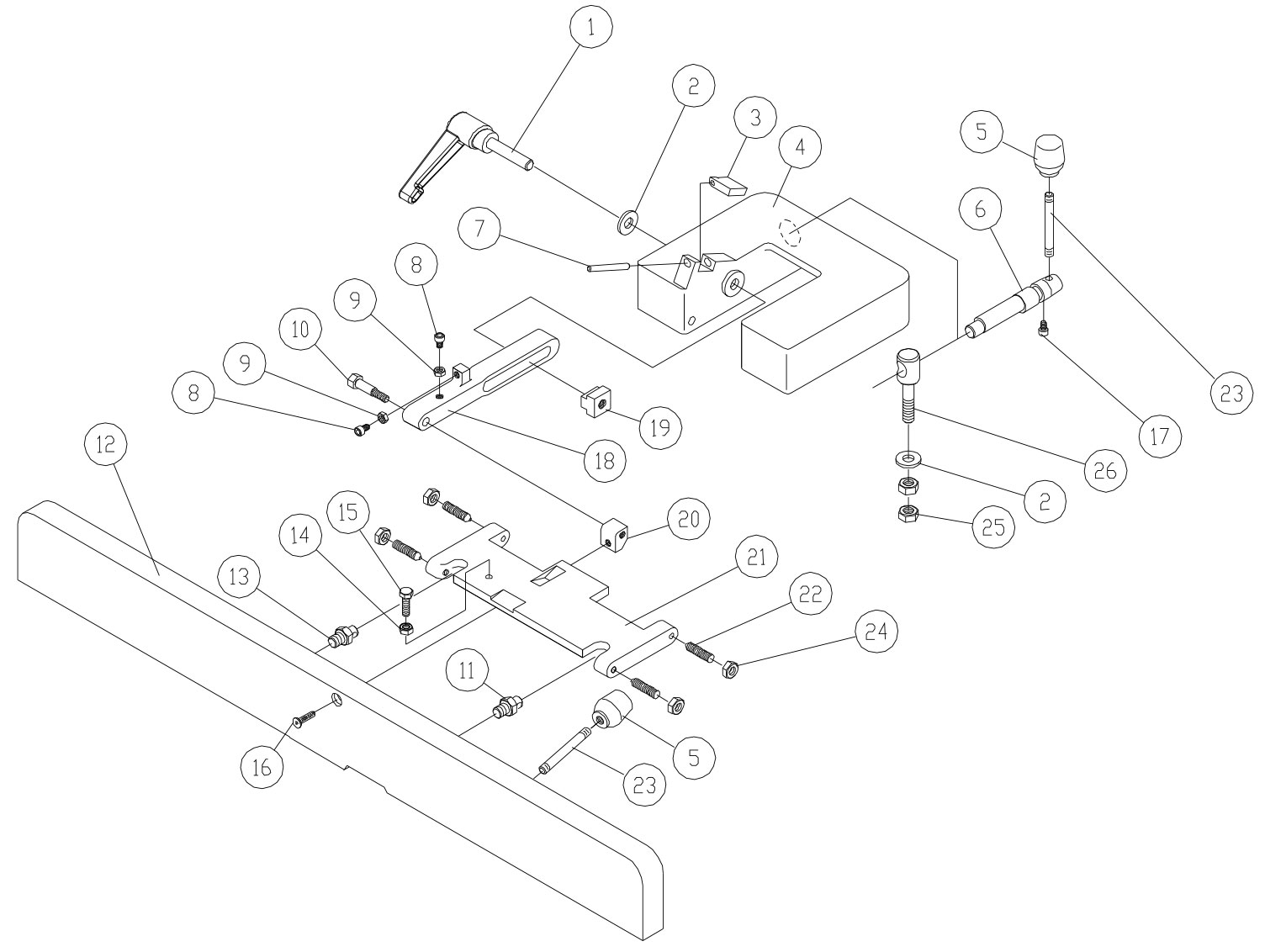

Fig 3 - 1 LOCKING BOLT
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 3 STOP BLOCK (1 REQ.)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 4 FENCE BRACKET (1 REQ.)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 5 5DF-109 KNOB
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 3 - 6 LOCKING SHAFT (1 REQ.)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 7 PIN 5MM DIA X 50 MM LG (1 REQ.
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 8 CAP SCR 1/4-20X1-1/4 LG (2 REQ
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 3 - 9 HEX NUT 1/4-20 (2 REQ.)
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 3 - 10 SCREW (1 REQ.)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 11 HEX NUT FULL 1/2-20
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 3 - 13 JED-F14 STUD PIVOT
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 3 - 15 HEX SCR 5/16-18X1-1/4 LG(1 RQ
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 18 LOCKING LINK (1 REQ)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 19 NUT (1 REQ)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 20 JED-FO2 BLOCK FIXED
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 21 FENCE LINK (1 REQ.)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 22 JED-F16 SCREW CONE PT
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 3 - 23 JEB-F09 HNDL STUD
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 3 - 24 5DA-D09 NUT HEX3/8-16
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 3 - 25 HEX NUT 1/2" JWS-25CS
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 3 - 26 BOLT (1 REQ)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 27 CAP SCR 1/4-20X1/2 LG (1 REQ)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 1 SPECIAL BUTTON HEAD SCREW
12 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "12" or more to proceed.

Fig 4 - 2 LOCK WASHER MEDIUM 3/8 (JJ-6CX)
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 4 - 3 HEX CAP BOLT JJ-6OS
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 4 - 4 BEARING HOUSING JJ-6CS/-6OS
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 5 BALL BEARING 6202 2Z C3
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 6 CUTTERHEAD
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 7 KEY JJ6-CS/-6OS
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 8 BALL BEARING
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 9 BEARING HOUSING JJ-6CS/-6OS
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 10 CUTTER HD PULLEY JJ-6CS/-6OS
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 11 SOCKET SET SCREW 1/4-20X3/8
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 4 - 12 J6-KQC QUICK SET 6" JOINTER KNIFE (PJ)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 13 SOCKET HD CAP SCREW M4X8
6 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "6" or more to proceed.

Fig 4 - 14 KNIFE LOCK BAR
3 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "3" or more to proceed.

Fig 4 - 15 ADJUSTMENT NUT
6 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "6" or more to proceed.
