Search Parts:
Only common repair parts are available for purchase. If a part does not have add to cart button it's not available for purchase on Toolbarn. Please do not contact customer service for availability on these items.
| Ref | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 66 TRUNNION ASSEMBLY |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
|||
| HNDWHEEL ASSY (MDL 66) |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
|||
| TILTING BRACKET ASSEMBLY (MDL 66) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
|||
| TILTING SHAFT ASSY (MDL 66) * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
|||
| ARBOR ASSY (MDL 66) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
|||
| HARDWARE KIT TRUNNION (MDL 66) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
|||
| GAUGE MITER ASSY 72A / 74A #66 ARBOR SA * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
|||
| REAR SUPPORT SPLITTER FOR MODEL 66 TABLE SAW * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
|||
| GUARD & SPLITR ASSY #66 ARB SAW * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
|||
| DOOR ASSY 14TILT ARBOR SAW 72A #66 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
|||
| TABLE INSERT ASSY 66 ARBOR SAW * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
|||

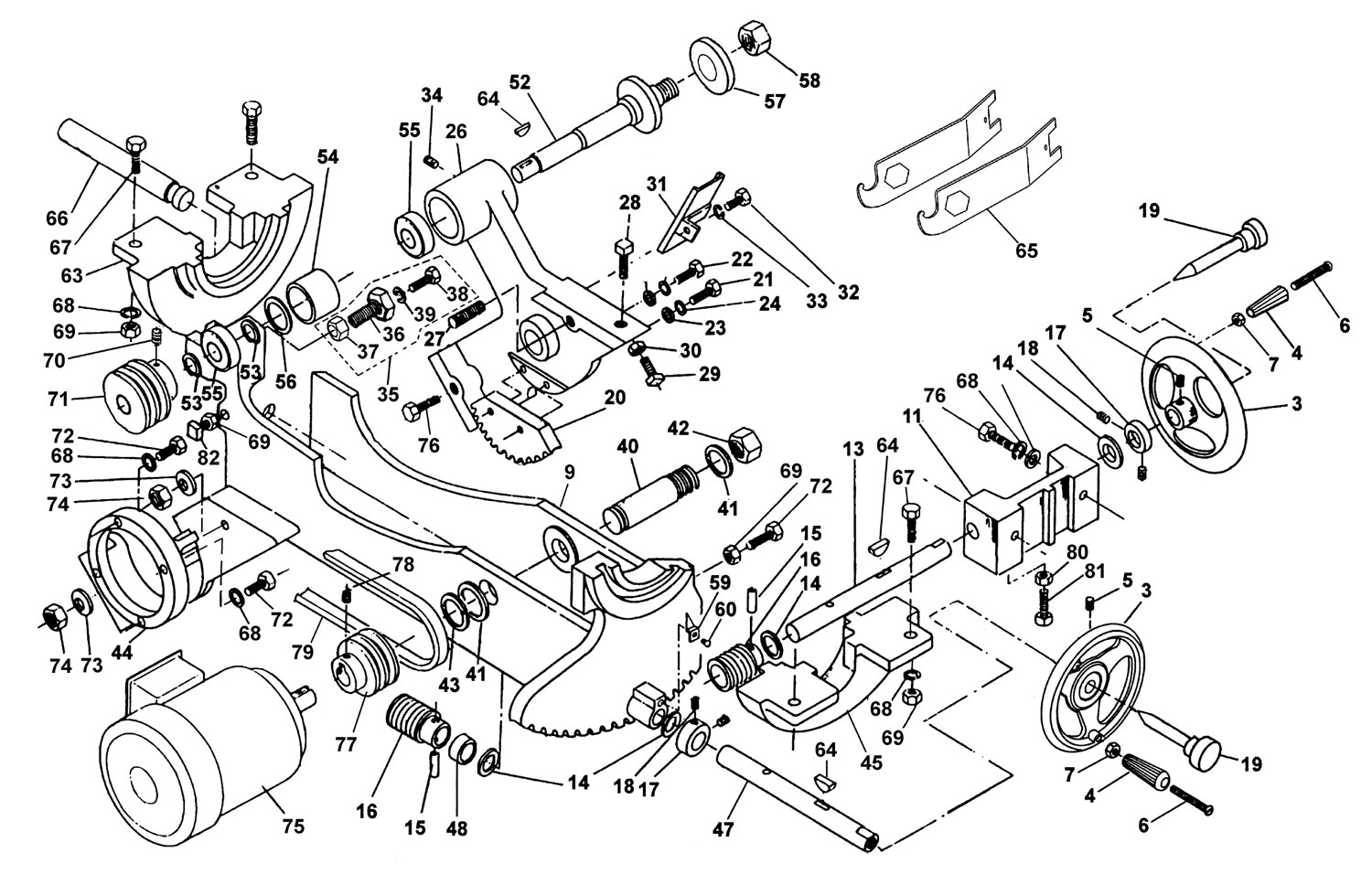

| Fig 1 - 2 | HNDL ASSY (MDL 66) * Obsolete * |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 5 | SOCKET SET SCREW M8X12 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 8 | CENTER TRUNNION SUB-ASSY (MDL 66) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 9 | CENTER TRUNNION WITH FASTENERS (MDL 60BS) * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 11 | BRACKT SAW TILT PIVOT72A / 74A#66 ARB SA |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 14 | FT NYLATRON WASH E12 3/4 I.D.72A/74A#66 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 1 - 16 | SAW RAISING/TILT WORM 72A / 74A #66 * Obsolete * |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 17 | SHAFT CLLR WITH FASTENERS (MDL 66) |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 19 | SHAFT LOCKING PIN - MDL 66 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 20 | GEAR SEGMENT WITH FASTENERS (MDL 66) * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 21 | HEX CAP SCREW M10X40 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 22 | HEX CAP SCREW M10X45 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 23 | n/a |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 24, Fig 1 - 39 | LOCK WASHER M10 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 25 | BEARING ARM ASSY (MDL 66) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 31 | 90052 CHUTE DUST ASSY #66 ARBOR SAW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 32 | HEX CAP SCREW M8X12 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 35 | SCREW ASSEMBLY SPLITTER(MDL 66) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 37, Fig 3 - 4 | 3/4-16 NUT SPANNER LOCK |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 38 | HEX CAP SCREW M10X20 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 40 | SHAFT SAW ARM PIVOT 72A/ 74A #66 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 41 | SPACER 1 1/8X1 5/8 X 1/16 14TILT ARB#66 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 43 | EXT RETAIN RING 5107-112 (TEXT) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 44 | MOTOR MOUNT 72A / 74A #66 ARBOR SAW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 45 | TRUNNION FRONT 72A / 74A #66 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 46 | RAISING SHAFT ASSY (MDL 66) * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 48 | SPACER TRUNION #66 ARBOR SAW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 52 | SHAFT #66 * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 53 | #5100-78 TRUARC EXTRNL #66 ARBOR SAW |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 54 | SPACER BEARING #66 ARBOR SAW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 55 | BALL BEARING |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 56 | WASHER WAVIE SPRNG W1819-020 #66 ARB SW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 57 | CLLR ARBOR #66 ARBOR SAW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 58 | NUT HEX 5/8-12 ACME #66 ARBOR SAW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 59 | POINTER TILTING (MDL 66) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 63 | REAR TRUNNION (MDL 66) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 64 | WOODRUF KEY3/16X 1(CARBON72A /74A #27#66 |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 1 - 65 | ARBOR WRENCH MDL 66 ONLY |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 66, Fig 3 - 7 | UNTHREADED SPLITTER SUPPORT SHAFT 72A / 74A #66* * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 67 | 3/8-16 X 1 3/4 HEX HD CA #66 ARBOR SAW |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||

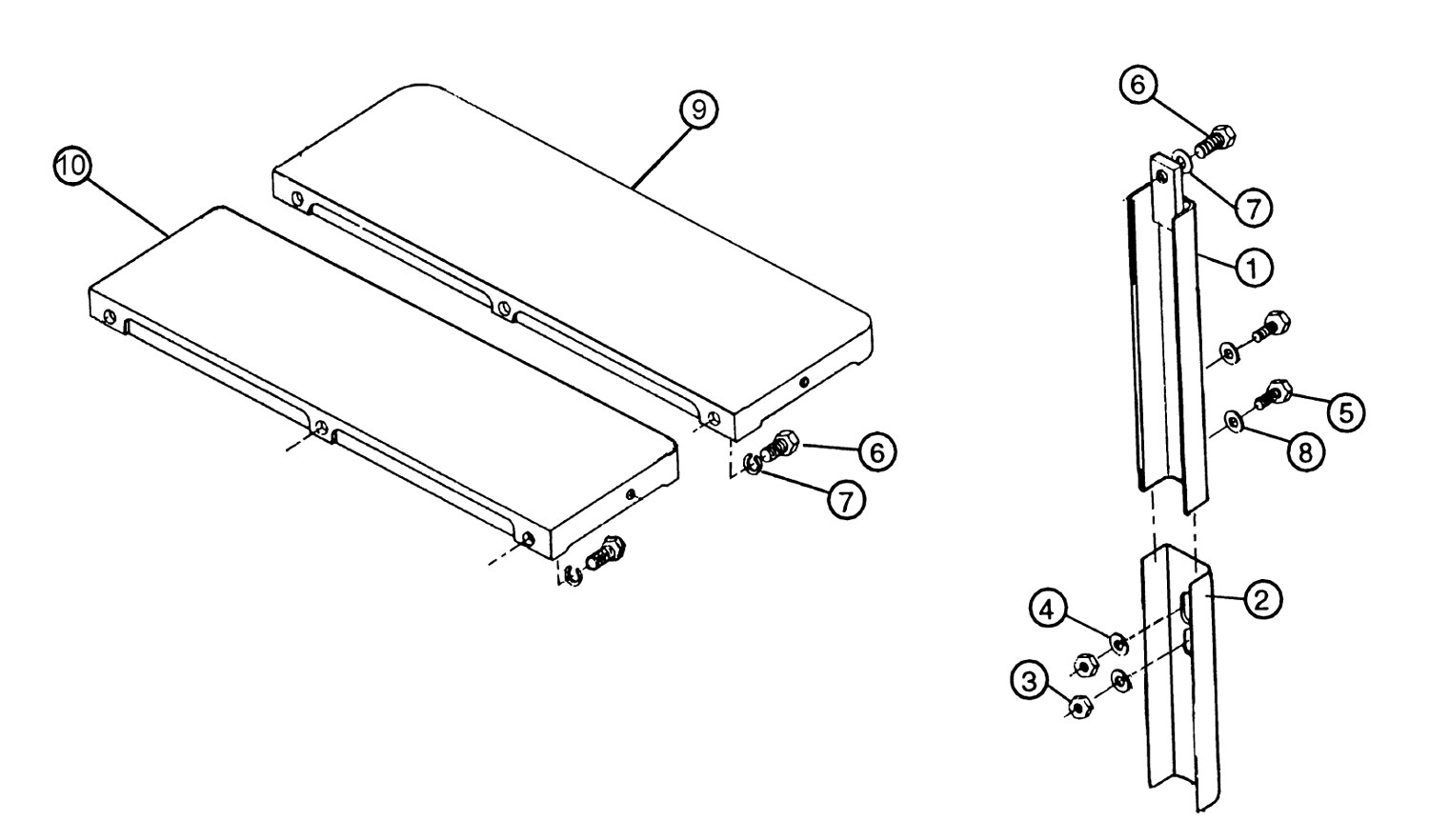

| Fig 1 - 68, Fig 4 - 2, Fig 5 - 7 | 3/8HELIC SPRG LK WASR72A/ 74A 60A #27#66 |
10 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "10" or more to proceed. |
||
| Fig 1 - 69 | 3/8-16 HX NUT PLAIN72A-74A #66 AR SAW#28 |
6 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "6" or more to proceed. |
||
| Fig 1 - 70 | 1/4-20 X 3/8 SCKT SET SCRE |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 71 | 2 3V 280-STL X 3/4 MARTIN #66 ARBOR SAW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 72, Fig 4 - 1, Fig 5 - 6 | 3/8-16X1 HX HD CAP SCRW 72A /74A #27 #66 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 73 | 1/2 FLT WASR PLAIN 72A / 74A 60AJONTR#66 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 74 | 1/2-13 HEX NUT PLAIN #66 ARBOR SAW |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 75 | BALDOR MTR 3HP 1PH 3600RPM #66 ARBOR SW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 75 | MOTOR 3HP 1PH 230V (50 CYCLE) MODEL 66 * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 75 | MTR5HP3PH 208/230/460V 3600RPM 72A/74#66 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 75 | BALDOR MTR 5HP1PH 3450RPM-184C 72A/74A |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 76 | 1/2-13X1 3/4 HEX HD CAP SCRW 72A / 74A |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 77 | SHEAVE 2F3V33 X 7/8 MOTOR #66 ARBOR SAW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 78 | 5/16-18X3/8SKT ST SCW72A /74A #27/SP27 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 79 | BELT 3VX220 (GOODYEAR) #66 ARBOR SAW |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 1 - 80 | 3/8-16HX JAM NUT PLN 72A /74A #27#66#28 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 81 | 3/8-16 X 1 SQ HD ST SCRW 74A #66ARB SA |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 1 - 82 | 3/8-16X2 1/2 SQ HD SET SCRW72A / 74A #66 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||

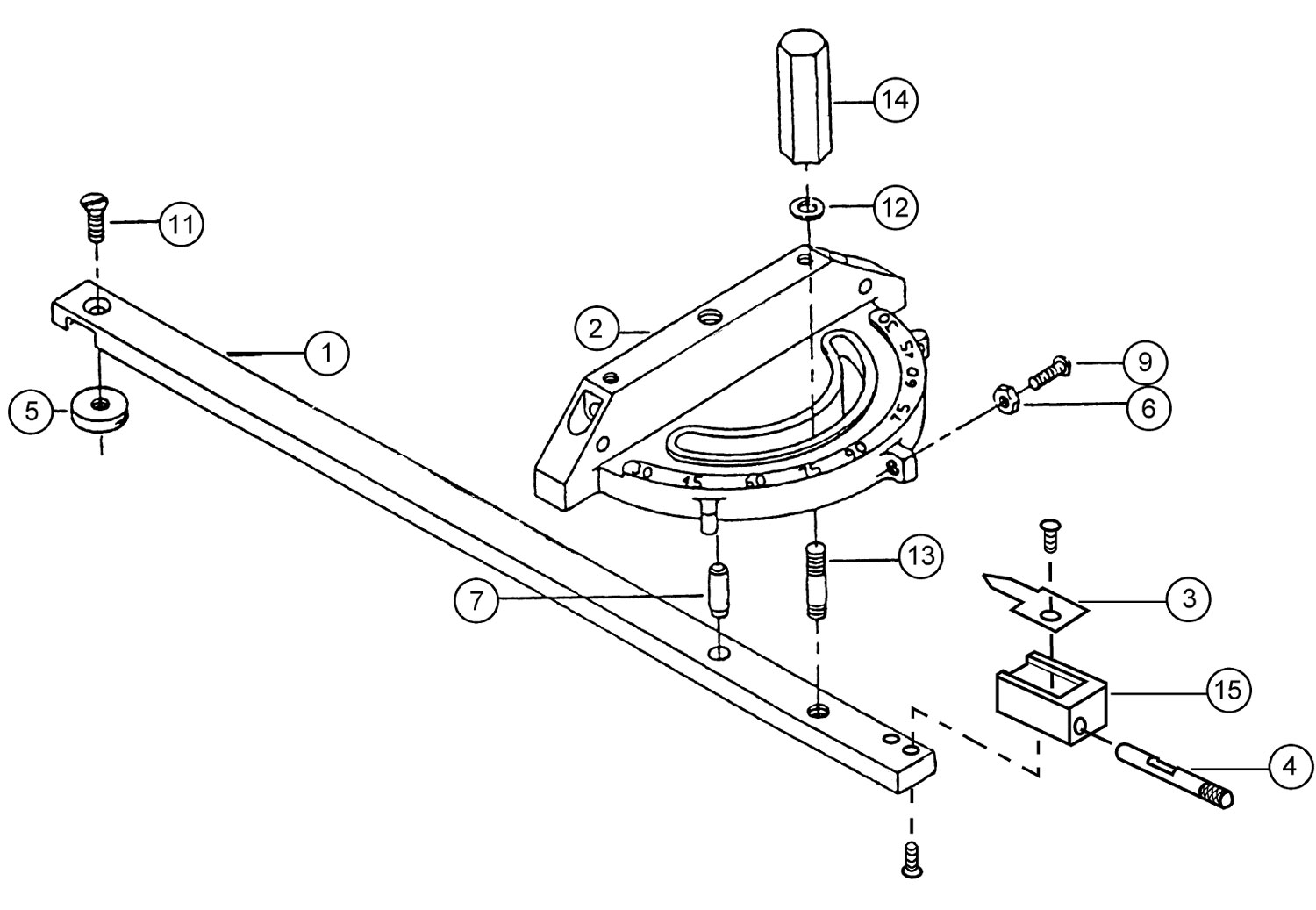

| Fig 2 - 4 | STOP PIN (MDL 66) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 6 | 6/32 HX NT PLN 72A/74A#66 ARB SW |
3 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "3" or more to proceed. |
||
| Fig 2 - 7 | 1/4X1SLD DWL PN72A74A#66 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 12 | 1/4 FLT WSHR 60A JONTR #66#28 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 13 | LCKNG SCRW 1/4X3-3/8 72A /74A #66 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 2 - 14 | MITER GAUGE HANDLE KNOB * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||

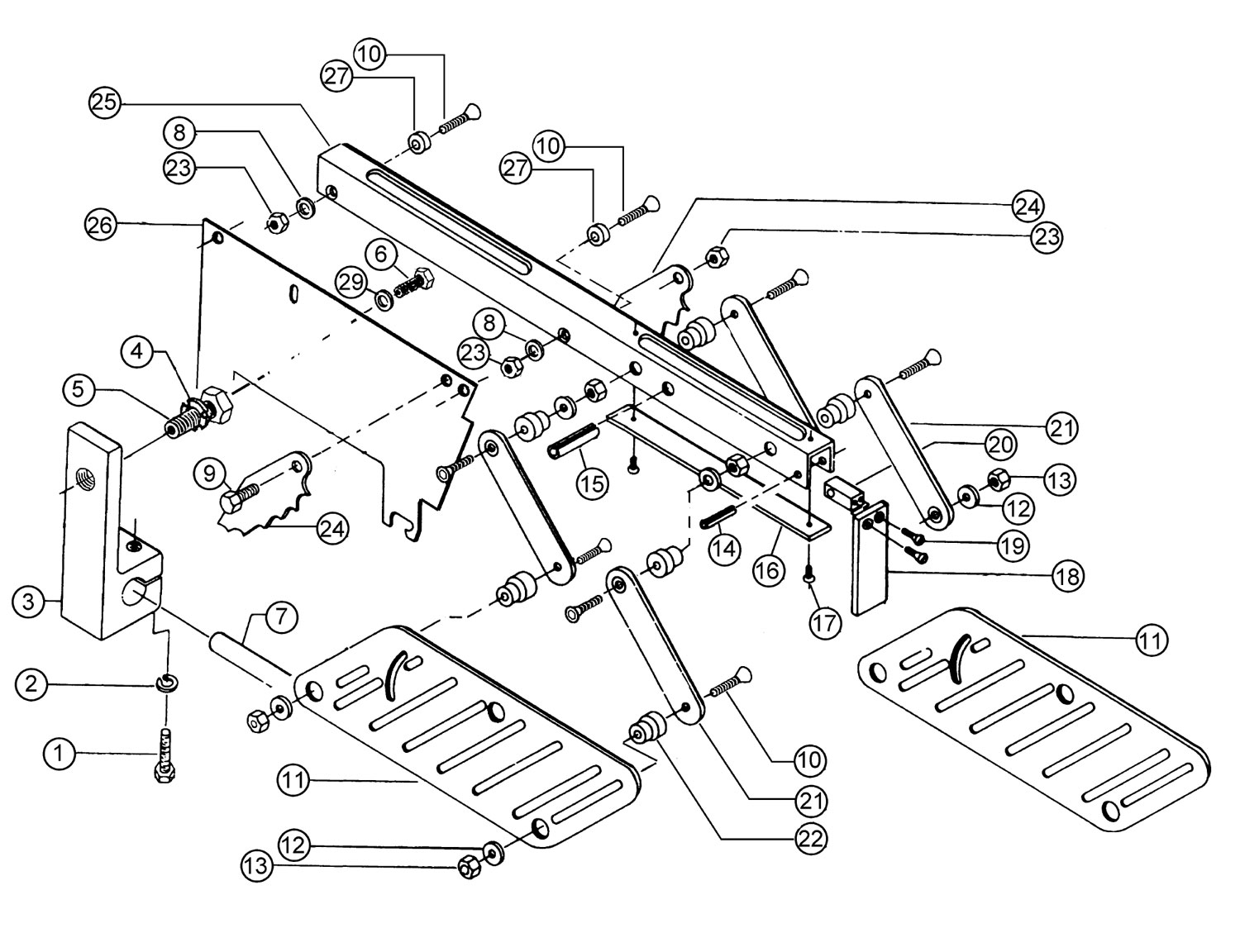

| Fig 3 - 1 | 5/16-18 X 1 1/4 HEX HD C #66 ARBOR SAW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 2, Fig 5 - 4 | 5/16 MD LK WASHR72A 74A 27/SPR27/#66#28 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 5 | ADJ SCRW 3/4-16X1-1/2 72A /74A#66 ARB SW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 6 | 90058 SUB ASSY KNO #66 ARBOR SAW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 9 | 1/4-20 X 5/8 HEX HD CAP #66 ARBOR SAW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 10 | 1/4-20X7/8 FLT HD SKT SCRW 72A / 74A#66 |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 3 - 11 | GUARD BLADE #66 ARBOR SAW * Obsolete * |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 12 | WASHER PIVOT 72A / 74A #66 ARBOR SAW |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 3 - 13 | 1/4-20 FLEXLOCK NUT 72A / 74A#66 ARB SAW |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 3 - 14 | 3/16 X 1 SPRNG PIN #66 ARBOR SAW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 15 | 3/8 X 1 3/4 SPRNG PIN #66 ARBOR SAW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 16 | GUARD SHIELD #66 ARBOR SAW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 17 | 10-24X1/4 RD HD MACH SCRW 72A /74A#66 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 18 | SHIELD FRONT #66 ARBOR SAW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 21 | ARM PIVOT #66 ARBOR SAW * Obsolete * |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| Fig 3 - 22 | BUSHING PIVOT72A / 74A #66 ARBOR SAW |
8 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "8" or more to proceed. |
||
| Fig 3 - 23 | 1/4-20 HX NUT PLAIN 72A / 74A #66 ARB SA |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 24 | PAWL ANTI-KICK BACK #66 ARBOR SAW |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 25 | GUARD & SPLITR ASSY #66 ARB SAW * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 26 | SPLITER #66-ARBOR SAW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 27 | SPACER 40067 #66 ARBOR SAW |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 3 - 29, Fig 4 - 13 | 3/8 FLT WSHR ZINC PLTED .44 ID X 1.00 OD |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 3 - 30 | PLATE CAUTION (TA SAWS) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||

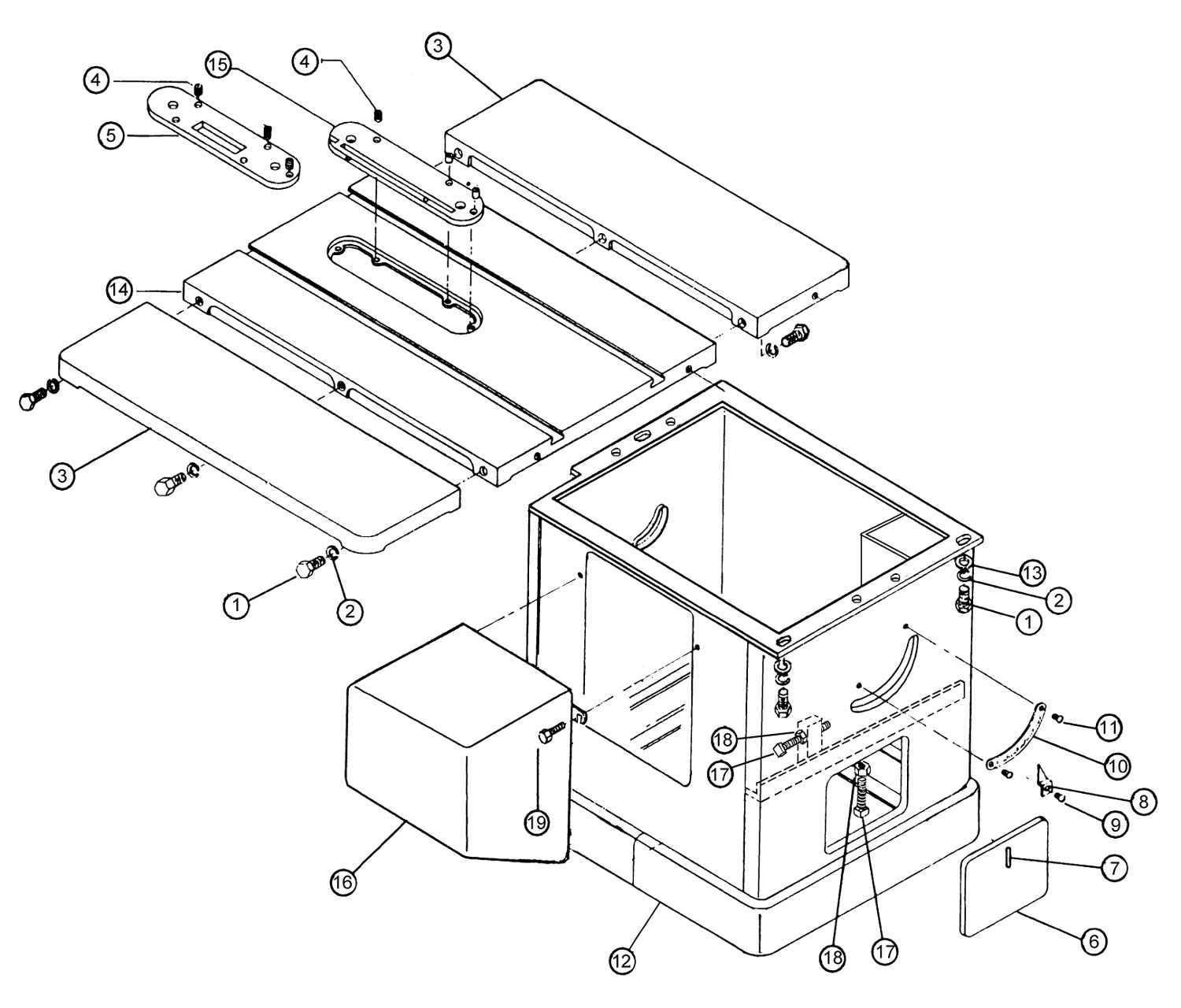

| Fig 4 - 4 | (1PKG 5 1/4-20 X 3/8 NYLOK SCKT SET #66 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 6 | DOOR DUST REMOVAL 66-72A-74A SAW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 7 | 3136018TCH MDL 72A / 74A/#27/SPR27 #6 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 8 | POINTER SAW TILT 14TILT ARBR SAW 72A #66 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 9 | 8/32 X 3/8 RD. HD SCREW #66 ARBOR SAW |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 10 | TABLE ANGLE SCALE #66 ARBOR SAW * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 11 | 6X1/4 PAN HD SELF-TAP SCRW 72A 74A#66 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 4 - 16 | MOTOR COVER #66 TA SAW * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 4 - 17 | 5/16-18X2 3/4 SQ HD SCREW 14TILT ARB SW |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 4 - 18, Fig 5 - 3 | 5/16-18HX NUT PLAIN72A /74A #66 AR SA#28 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 4 - 19 | 1/4-20X5/8 HX WASR HD SCRW74A #27/SPR27 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 4 - 20 | WARNING LABEL (66 72A 74A TA SAW) |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| Fig 5 - 5 | 5/16-18 X 5/8 HEX HD SCREW 72A / 74A #66 * Obsolete * |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| Fig 5 - 8 | 5/16 FLT WASHR N SERIES 66 72 74 20DR |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
