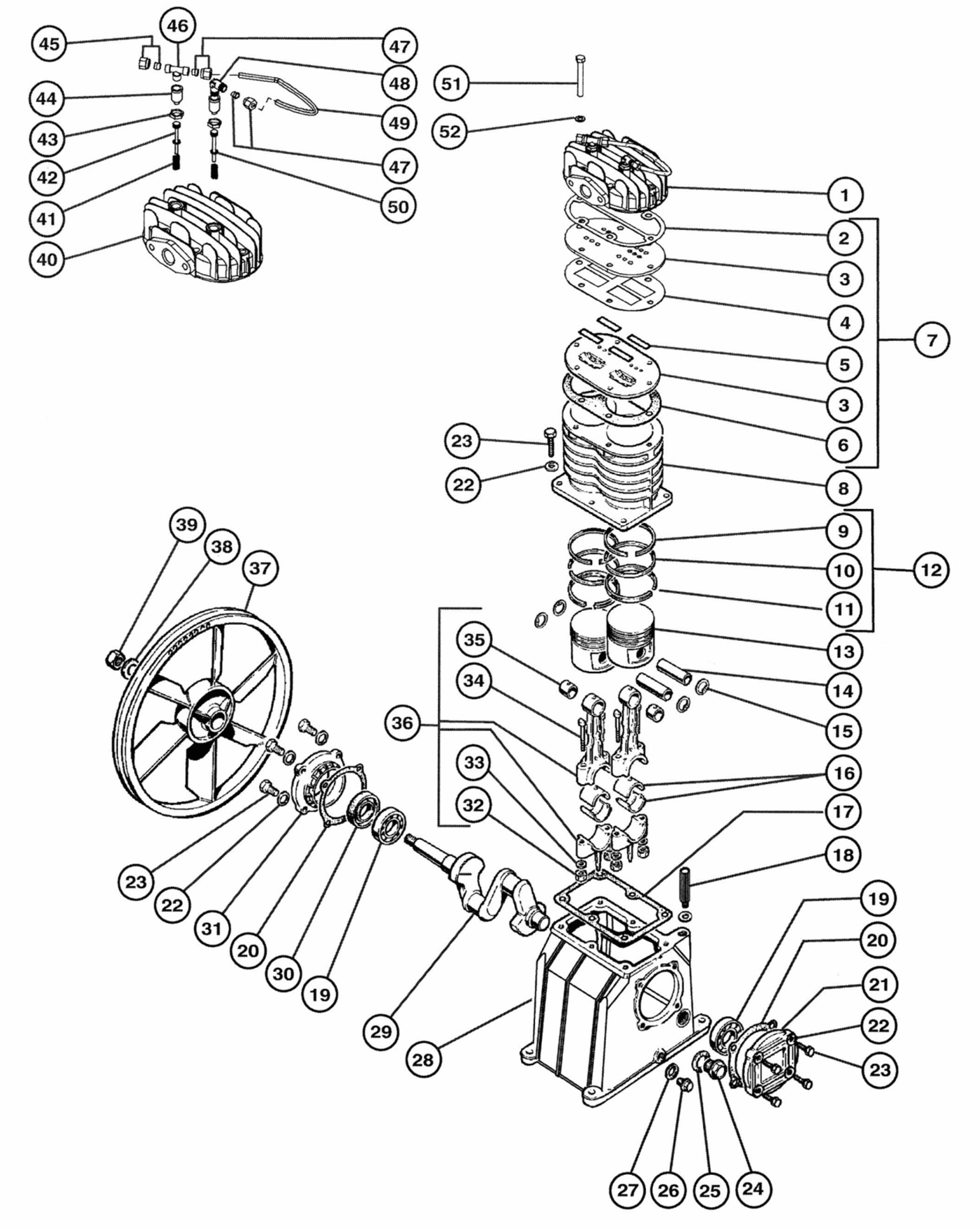

| Ref | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | COMPL.HD ASSY. W/UNL INST., K17HU |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 10 | RING, SCRAPER - K17 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 11 | RING, SLOTTED OIL - K17 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 12 | RING SET - K17 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 13 | PISTON - K17 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 14 | PIN, PISTON - K17 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 15 | SNAP RING - K11, K17 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| 16 | BEARING SHELL - K11, K17, K24 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 17 | GASKET - K17 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 18 | OIL BREATHER, 3/8" - K11, K17 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 19 | BEARING, BALL - K11, K17, K24 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 2 | GASKET - K17 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 20 | GASKET - K11, K17, K24 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 21 | BEARING CARRIER - K11, K17, K24 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 22 | WASHER, K8 TO K70 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 23 | BOLT - K17, K24 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 24 | OIL SIGHT GAUGE-K11, K17, K24, K30 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 25 | GASKET - K11, K17, K24, K30 |
6 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "6" or more to proceed. |
||
| 26 | OIL PLUG - ALL K SERIES |
6 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "6" or more to proceed. |
||
| 27 | GASKET, OLD STYLE - K24, K30, K50 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 29 | CRANKSHAFT - K17 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 3 | PLATE, VALVE - K17 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 30 | SEAL - K11, K17, K24 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 31 | SUPPORT, FLYWHEEL SIDE - K30 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 32 | NUT, K8,K11,K17,K18,K22,K24,K25,K28 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| 33 | WASHER, K8,K11,K17,K18,K22,K24,K25, |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| 34 | BOLT - K11, K17, K24 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| 35 | BUSHING - K11, K17 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 36 | ROD, CONN W/UPPER BSHG - K11, K17 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 36 | ROD ASSY., CONN. - K11, K17 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 37 | FLYWHEEL - K3 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 38 | WASHER - K11, K17, K24 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 39 | NUT - K11, K17, K24 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 4 | VALVE PLATE GASKET |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 40 | HEAD, K17HU |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 41 | SPRING - K30HU |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 42 | PISTON, UNLOADER, EMG |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 43 | NUT-K11HU,K17HU,K18HU,K50HU,K60HU, |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 44 | RED.SLEEVE-K11HU,K17HU,K18HU,K50HU, |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 45 | -OBSOLETE. NUT AND RING, K30HU- * Obsolete * |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 47 | NUT AND OGIVE, K30HU |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 48 | ELBOW, EMGLO |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 49 | PIPE CONNECTOR, K17HU |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 5 | VALVE, REED - K11, K17, K24 |
4 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "4" or more to proceed. |
||
| 50 | GASKET - K11HU, K18HU |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
||
| 51 | SCREW, K17 |
6 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "6" or more to proceed. |
||
| 52 | BOLT, STUD, PMP12KEMGCH |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 52 | WASHER - K11, K17, K24, K30, K60 |
6 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "6" or more to proceed. |
||
| 52 | GASKET SET - K17 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 6 | GASKET - K17 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 7 | VALVE PLATE ASSEMBLY-K17 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 8 | CYLINDER - K17 |
1 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "1" or more to proceed. |
||
| 9 | RING, COMPRESSION - K17 |
2 Required
Quantity RequiredQuantity Required popup block Please enter a quantity of "2" or more to proceed. |
