Wilton 4126Ac Square Wheel Belt Grinder

Parts for:

Wilton 4126Ac Square Wheel Belt Grinder

Search Parts:

Only common repair parts are available for purchase. If a part does not have add to cart button it's not available for purchase on Toolbarn. Please do not contact customer service for availability on these items.
Please scroll left/right table for more info!
Ref Part # Description Price Qty

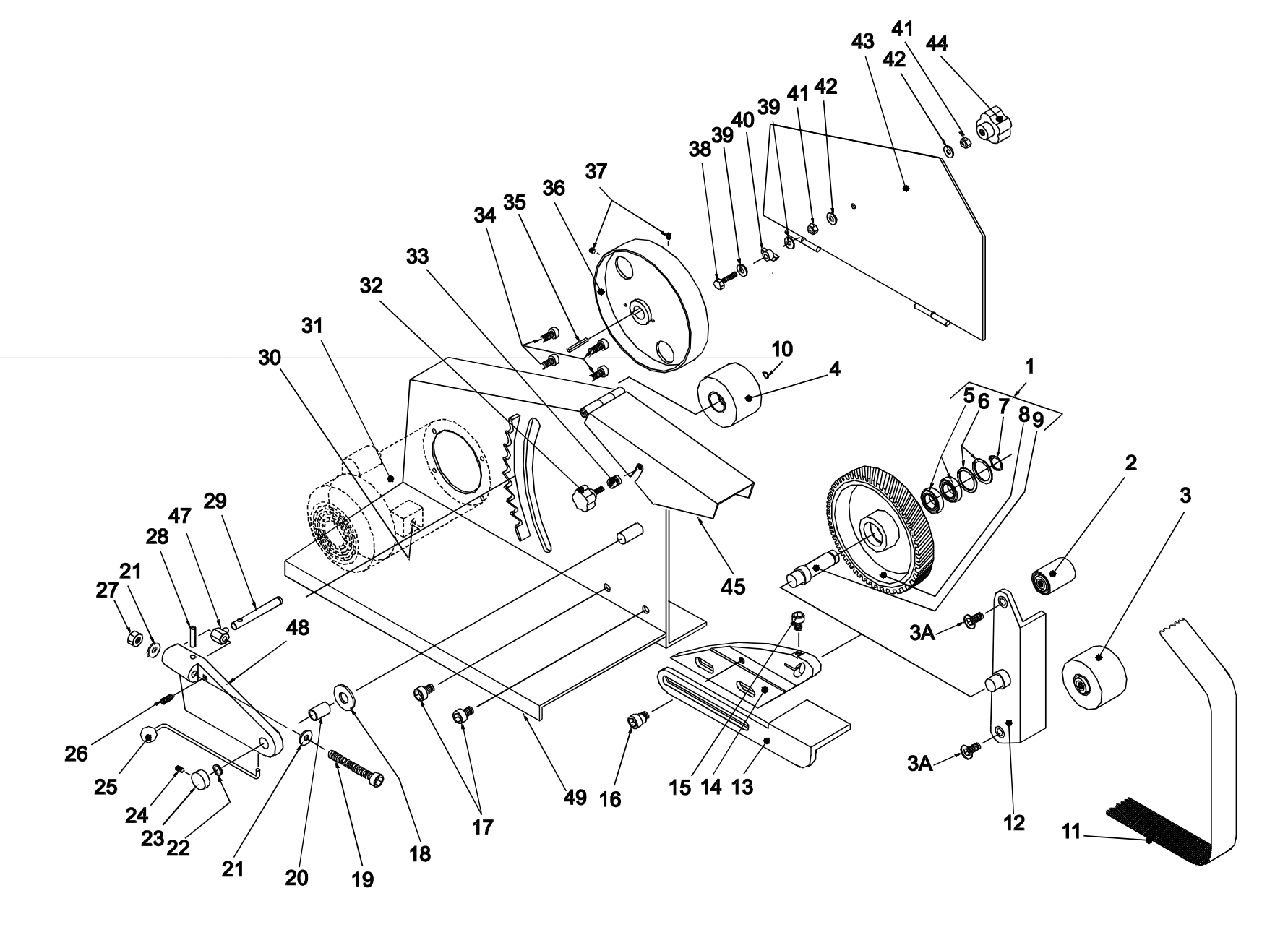

Fig 1 - 1 n/a
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 1 n/a
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 1 n/a
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 2 CONTACT WHEEL ASSY 1-1/2 X 2 * Obsolete *
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

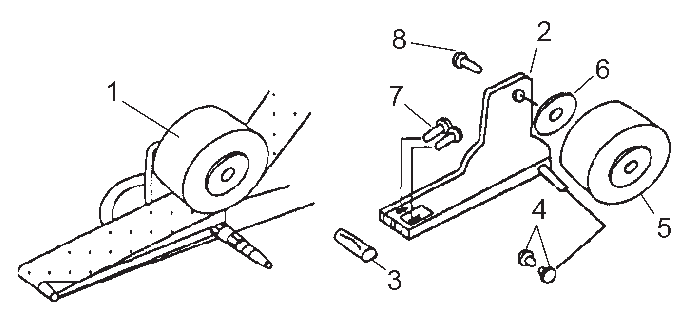

Fig 1 - 3, Fig 4 - 5 CONTACT WHEEL ASSY 3 X 2
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 3A FHCS 5/16-18 X 3/4
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 4 4103 >98 IDLER WHEEL ASSY (TEXT)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 5 BEARING 6203 2Z
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 6 RET. RING TRUARC #5000-156
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 7 EXTERNAL RET. RING .629 GRVE DIA
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 8 CONTACT WHL 8X2 SMOOTH 50 DURO
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 8 CONTACT WHL 8X2 SERTD 50 DURO
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 8 CONTACT WHL 10X2 SERTD 90 DURO
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 9 SHAFT/ 8 X 2 CONTACT WHEEL
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 10 RETAINING RING EXT #1400-40
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 11 n/a
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 12 PLATEN MACHD * Obsolete *
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 13 4103 WORK REST MACHD (WHITE)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 14 4103 HD CASTING MACHD * Obsolete *
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 15 SHCS 3/8-16 X 1
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 16 WKRST SCW 3/8-16X5/8 MACHD
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 17 SHCS 3/8-16 X 5/8
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 18 WASHER FLAT NYLON 1/2 X 1-1/4-1/16 THK
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 19 SHCS 3/8-24 X 3 FULLY THREADED
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 20 OILITE BUSHING
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 21 WASHER FLAT NYLON 3/8 X 1 1/16
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 22 O RING
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 23 IDLER HOUSING PIN CAP REV B
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 24 SHSS-20 X 1/4 KNURL CUP
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 25 TENSION LEVER
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 26 SHSS 5/16-18 X 3/4 NYLON TIP
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 27 NUT HEX LOCK 3/8-24
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 28 ROLL PIN 3/16 X 1-1/2
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 29 4103 >98 IDLER PULLEY SHAFT
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 31 4126 MOTOR 1HP 220/440 3P 1725
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 32, Fig 3 - 7 4103 HND KNOB GUARD
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 33 ALLEN NUT - GUARD 5/16-18 UNC
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 34 HHCS 3/8-16 X 3/4 NYLOCK
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 1 - 35 KEY 3/16 X 1 1/4
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 36 4103 10 DRIVE PULLEY 5/8 BORE
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 37 SHSS 5/16-18 X 1/2
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 38 n/a
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 39 5/16 MD LK WASHR72A 74A 27/SPR27/#66#28
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 40 4103 CAM LATCH
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 41 NUT HEX 5/16-18
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 42 WASHER NYLON 5/16 STANDARD"
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 43 n/a
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 44 4103 HND KNOB DOOR
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 45 n/a
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 46 WASHER 1/4 SAE STEEL/ZINC
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 47 4103 TRACK LEADER
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 48 IDLER HOUSING MACHD * Obsolete * use J-5046540G
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 49 n/a
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

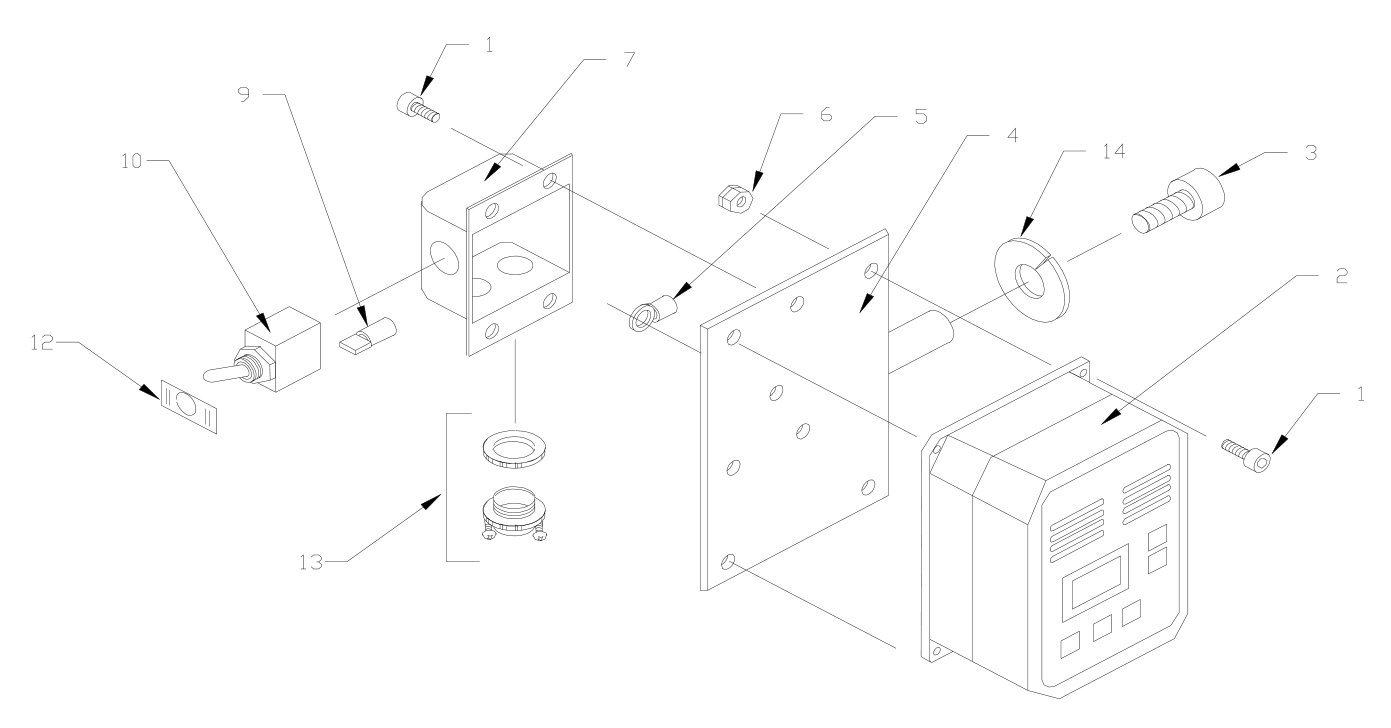

Fig 2 - 1 n/a
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 2 4126AC INVRTR 1PH 120V 50/60HZ
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 2 4126AC INVERTER 1 3PH 220V 50/60
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 2 4126AC INVERTER 440V 3PH 50/60HZ
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 3 HHCS 1/2-13 X 1
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 4 4126AC MOUNT INVRTR SERIES 15J
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 5 FULL CLOSED TERMINAL
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 6 NUT 10-32 NYLOCK
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 2 - 7 4126AC SWTCH BOX INVERTER
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 9 FEMALE SPDE TERM 16-14AWG
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 2 - 10 n/a
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 12 ON-OFF DIAL
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 2 - 13 CONNECTOR 15 & 20 D.P.
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 2 - 14 LOCK WASHER 1/2
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

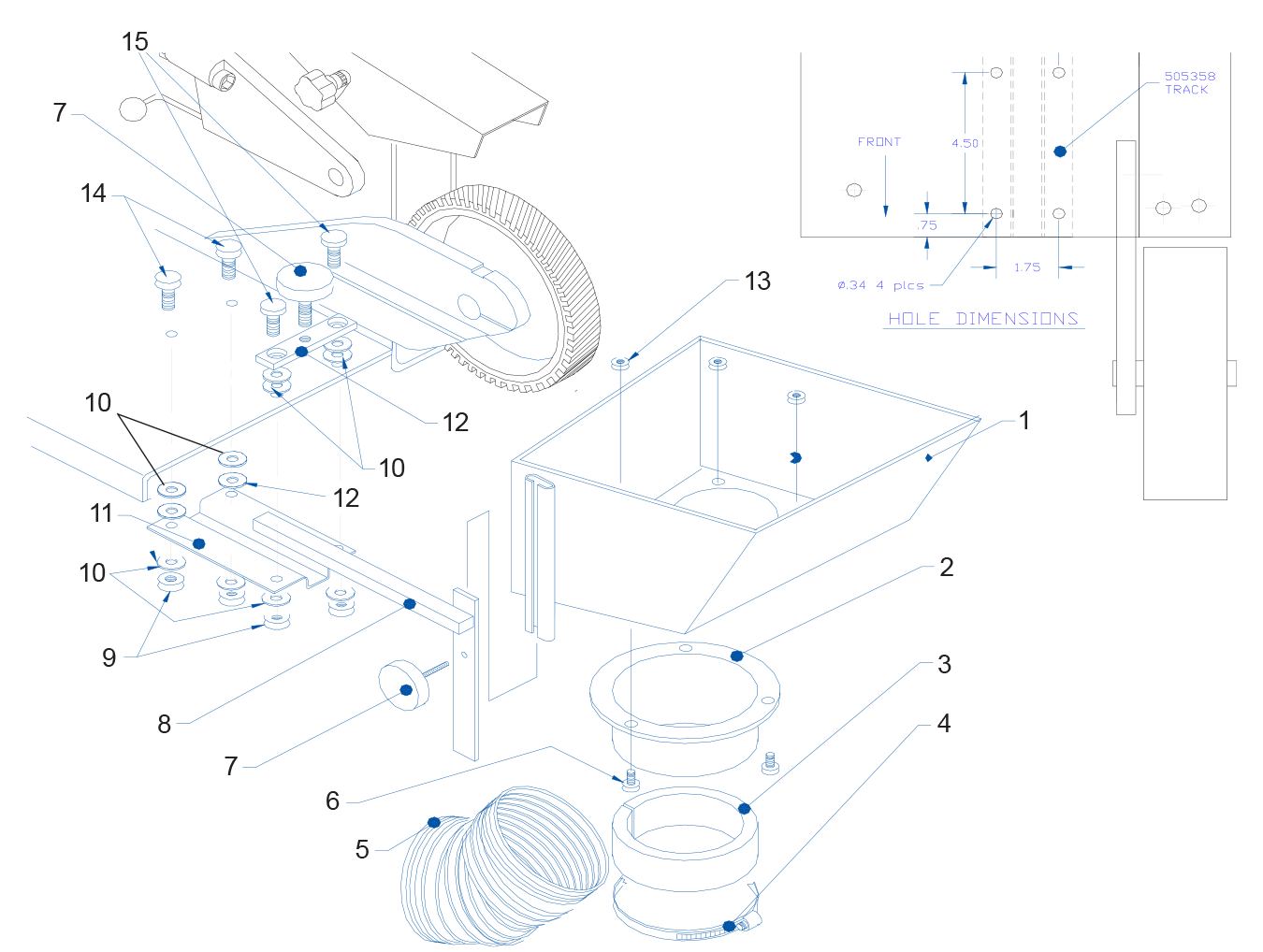

Fig 3 - 1 4103 VAC SCOOP WELDMENT
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 2 REPAIR KIT
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 3 n/a
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 3 n/a
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 4 HOSE CLAMP 3" VACUUM SYSTEMS
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 5 HOSE 3" X 5' VACUUM SYSTEMS
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 6 HEX HD CAP SCREW 10-32 X 5/8 20-DP
3 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "3" or more to proceed.

Fig 3 - 8 4103 VAC SCOOP RAIL
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 9 NUT - NYLOCK 5/16-18
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 3 - 10 n/a
8 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "8" or more to proceed.

Fig 3 - 11 4103 VAC SCOOP CHANNEL
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 3 - 12 WSHR 5/16X11/16X1/16 CD P
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 3 - 13 NUT HEX JAM #10-32
3 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "3" or more to proceed.

Fig 3 - 14 n/a
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 3 - 15 n/a
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 4 - 1 n/a
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 2 DEAD HEAD CASTING * Obsolete *
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 3 n/a
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 3 DEADHD TIP 1/4R X 2
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 3 NLA99 5/16 RX2 DEAD HEAD TIP
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 3 DEADHD TIP 3/8R X 2
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 4 1/4X1/8 COMP FL FITTING
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 4 - 7 SHCS 10-32 X 1/2
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 4 - 8 FHCS 5/16-18 X 5/8
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

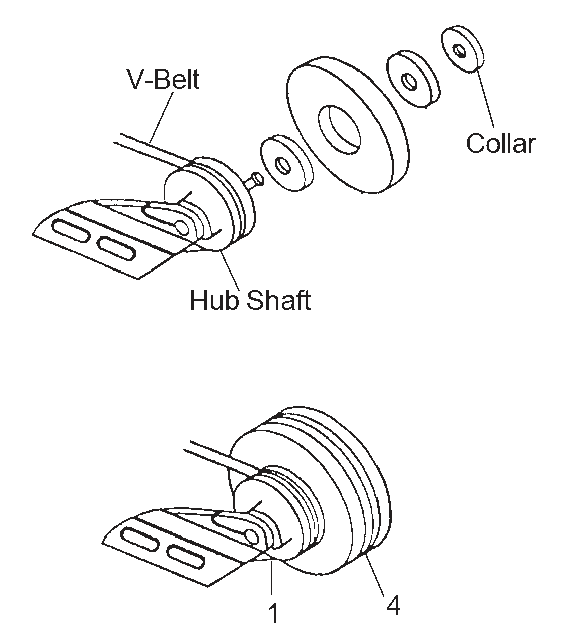

Fig 5 - 1 n/a
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 5 - 2 POLISHING WHEEL (8X1X3) NORTON 58631-5
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 5 - 3 SPACER PLATE
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 5 - 4 n/a
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

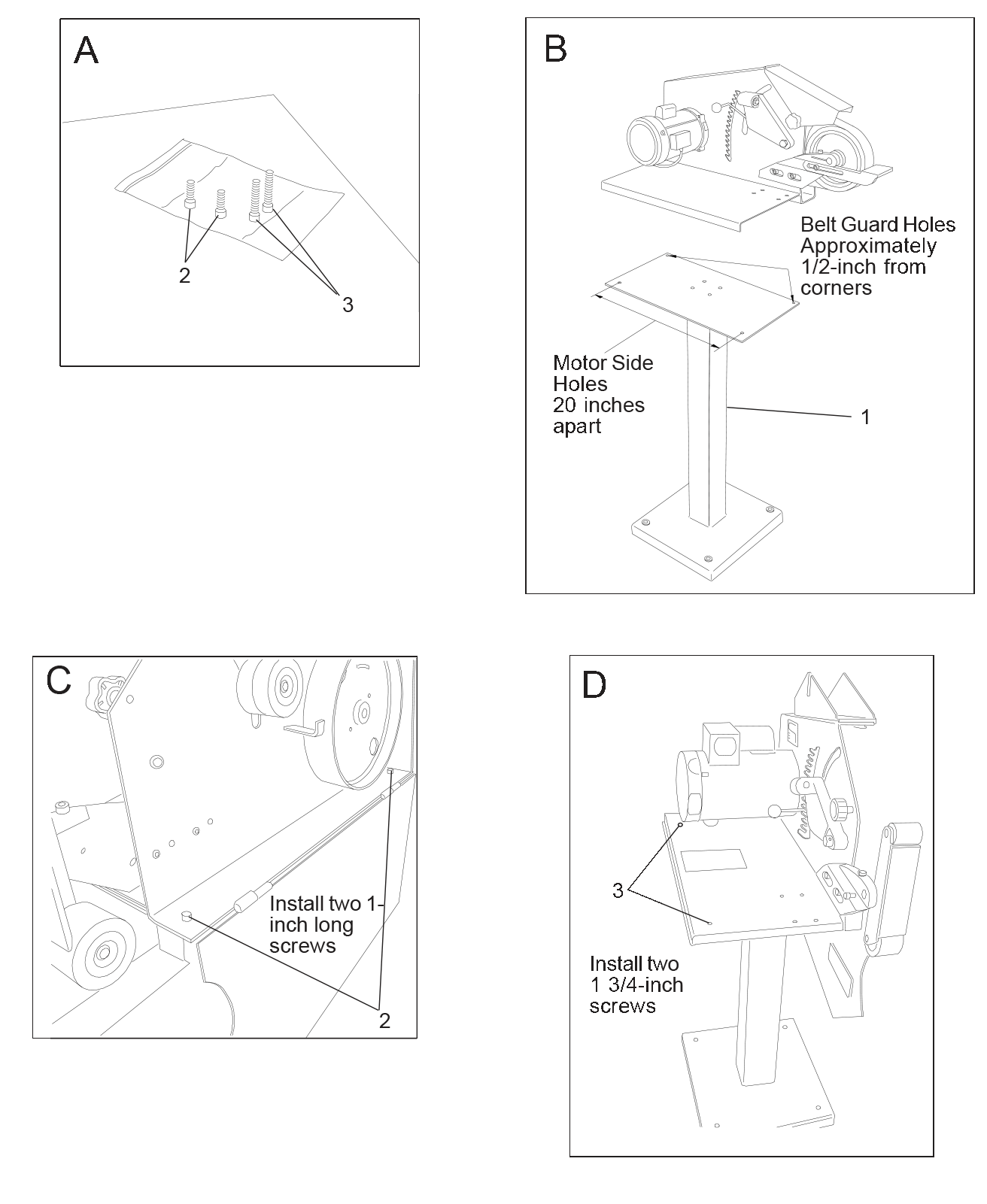

Fig 6 - 1 n/a
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 6 - 2 SHCS 5/16-18 X 1
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 6 - 3 SHCS 5/16-18 X 1.75
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 7 - 1 5511885 BASE
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 7 - 2 5511885 CHIP DRAWER
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 7 - 3 5511885 SEAL TAPE 5 FT LONG
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 7 - 4 5511885 COVER
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 7 - 5 5511885 COVER FILTER
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 7 - 6 n/a
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 7 - 7 PANEL REAR FOAM
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 7 - 8 PANEL SIDE FOAM
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 7 - 9 5511885 PANEL MOTOR SUPPORT
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 7 - 10 5511885 NUT HEX
5 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "5" or more to proceed.

Fig 7 - 11 5511885 WASHER LOCK
5 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "5" or more to proceed.

Fig 7 - 12 5511885 NUT HEX
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 7 - 13 5511885 WASHER LOCK
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 7 - 14 5511885 SCREW HEX HD
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 7 - 15 5511885 SPACER
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 7 - 16 5511885 HOUSING OUTER FAN
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 7 - 17 5511885 NUT HEX
5 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "5" or more to proceed.

Fig 7 - 18 5511885 WASHER LOCK
8 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "8" or more to proceed.

Fig 7 - 19 5511885 SCREW HEX HD
5 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "5" or more to proceed.

Fig 7 - 20 STRAP GUARD
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 7 - 21 FAN
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 7 - 22 5511885 SCREW SET
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 7 - 23 5511885 KEY
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 7 - 24 5511885 HOUSING INNER FAN
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 7 - 25 MOTOR
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 7 - 26 5511885 SCREW HEX HD
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 7 - 27 5511885 SEAL TAPE 5 FT LONG
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 7 - 28 5511885 SWITCH MOTOR
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.
