Wilton A5836 15-Inch Drill Press

Parts for:

Wilton A5836 15-Inch Drill Press

Search Parts:

Only common repair parts are available for purchase. If a part does not have add to cart button it's not available for purchase on Toolbarn. Please do not contact customer service for availability on these items.
Please scroll left/right table for more info!
Ref Part # Description Price Qty

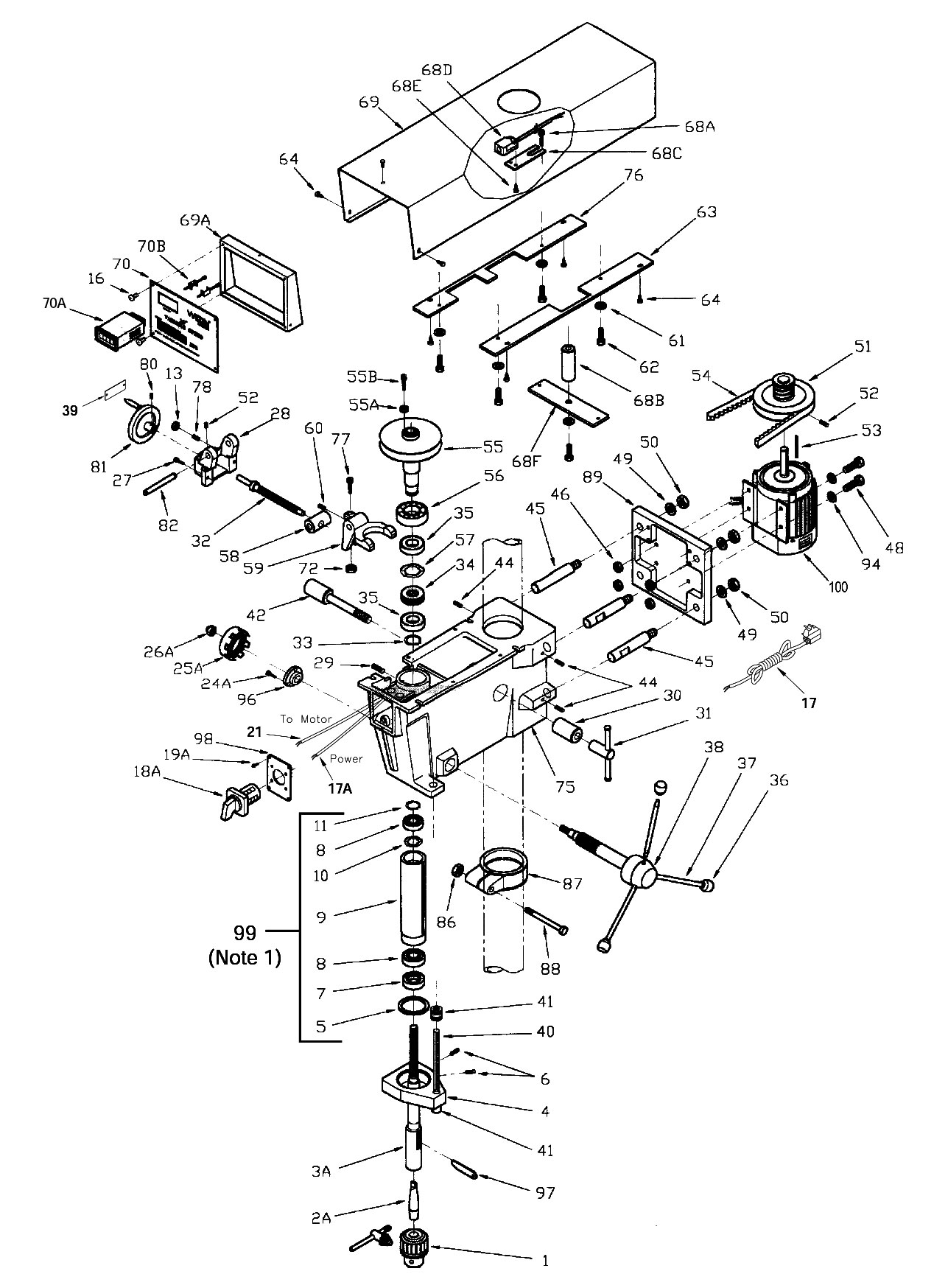

Fig 1 - 1 A5816 CHUCK W/KEY JT3 5/8"
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 2A A5816 #2 MRSE TPR X JT3 ARBOR
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 4 QUILL BAND MACHD CTSG
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 5 O-RING 15 DP * Obsolete *
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 6 SHSS 5/16-18X3/8 CUP PT
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 8 BEARING 6203 2Z
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 9 QUILL
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 10 WAVY WASHER 15 DP
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 11 EXTERNAL RET. RING .629 GRVE DIA
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 13 NUT HEX JAM 1/4-20
3 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "3" or more to proceed.

Fig 1 - 17A A5816 POWER WIRE 600V
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 18A A5816 SWITCH 1 PHASE
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 18A A5816 SWITCH 3 PHASE
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 19A A5816 SLOTED MACHINE SCREW
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 1 - 21 A5816 WIRE HRNS SWTCH/MTR 600V
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 24A A5816 SHCS
3 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "3" or more to proceed.

Fig 1 - 25A A5816 RETURN SPRNG ASSEMBLY
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 26A A5816 NYLON NUT
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 27 1/4-20 X 1 WHIZ LOCK SCREW
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 28 SPD CHNG HSNG VS 15 MACHD
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 29 SHSS 5/16-18 X 5/16 1/2 DOG
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 30 HD LOCK VS/6S 15DP PP
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 32 SPD CHANGE SHAFT VS 15
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 33 RETAINER 15 & 20 D.P.
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 34 BEARING SPACER
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 35 BEARING 6205 2Z GJN
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 36 BALL KNOB 15 DP
3 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "3" or more to proceed.

Fig 1 - 37 SPOKE FEED 15 DP
3 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "3" or more to proceed.

Fig 1 - 38 A5816 FEED PINION SHAFT
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 39 A5816 HI-LO SPD DIRECTN PLTE
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 40 DEPTH SCALE & ROD ASSM.
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 42 H EX HEAD CAP SCREW 1/2 -13 X 4
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 44 SOCKET SET SCREW 5/16-18X3/8
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 1 - 45 MTR PLT BAR 15 & 20 DP
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 1 - 46 FLANGE WHIZ LOCKNUT 5/16-18
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 1 - 47 CARRIAGE BOLT 5/16-18X2
4 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "4" or more to proceed.

Fig 1 - 50 A5816 HEX NUT 1/2-12
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 51 MOTOR PULLEY ASSY * Obsolete *
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 52 SHSS 1/4-20 X 1/2
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 53 KEY-3/16SQ X 1-7/16
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 54 V-BELT VS 15 / 1422 466
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 55 SPINDLE PULLEY ASSY VS 15 DP
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 55A 15" VS DRILL PRESS HEX NUT
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 55B 15" VS DRILL PRESS SCREW
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 58 SPD CHANGE NUT
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 59 SPD CHNG LVR VS ONLY 15
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 60 SHSS 3/8-16X1/4 NYL 15 DP
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 61 WASHER 1/4 SAE STEEL/ZINC
3 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "3" or more to proceed.

Fig 1 - 63 RIGHT MTN PLATE 6S 15 DP
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 68A SOCKET HD CAP SCREW 5/16-18X3/4
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 68B 15" VS DRILL PRESS THREADED SPACER
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 68C 15" VS DRILL PRESS PLATE BRACKET
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 68D 15" VS DP MAGNETIC PICKUP
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 68E 15" VS DRILL PRESS SCREW
2 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "2" or more to proceed.

Fig 1 - 68F 15" VS DP PLATE
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 69 BELT GUARD ASSY VS ONLY
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 69A A5816 BRACKET FACE PLATE
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 70 15" VS DP FACE PLATE
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 70A A5838 RPM DISPLAY 220/440V 3PH
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 70A A5816 2221VS LED DISPLAY 1PH
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 70B 15" VS DRILL PRESS LOCKING SCREW
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 78 SOCKET SET SCREW 1/4-20X1-1/4
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 81 HNDWHEEL 15&20 DP
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 82 15" VS DP SHAFT SPD CHNG LEVER
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 87 COLM COLR VS/6S 15 (MACHD)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 88 HHCS 7/16-14 X 3-1/2
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 89 MOTOR PLATE VS/6S 15 DP (MIH)
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 96 A5816 RETURN SPRNG BRACKET
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 98 A5816 SWITCH MOUNTING PLATE
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 99 QUILL ASSEMBLY
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 100 A5816 MOTOR 1 PH 115/220
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 100 A5816 50HZ MTR 115/220V 1PH
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.

Fig 1 - 100 A5818 MOTOR 3 PH 220/440
1 Required
Quantity Required

Quantity Required popup block

Please enter a quantity of "1" or more to proceed.
