Annovi Reverberi RMW2.2G24EZ Pressure Washer Pump, Axial, 2.2GPM@2400 PSI, 3400 RPM, 7/8" Shaft, Front Facing Connections

SKU: ar-north-america-rmw2-2g24ez Model: RMW2.2G24EZ
$127.95
27 reviews
Free Shipping
Annovi Reverberi RMW2.2G24EZ Pressure Washer Pump, Axial, 2.2GPM@2400 PSI, 3400 RPM, 7/8" Shaft, Front Facing Connections

Annovi Reverberi RMW2.2G24EZ Pressure Washer Pump, Axial, 2.2GPM@2400 PSI, 3400 RPM, 7/8" Shaft, Front Facing Connections

SKU: ar-north-america-rmw2-2g24ez Model: RMW2.2G24EZ
27 reviews |
$127.95

The Annovi Reverberi Pump, RMW2.2G24EZ, 2400PSI@2.2GPM is a quality and cost effective replacement pump for many popular models of pressure washers. It has two designations, the EZ and EZ-SX versions, which are each oriented differently on the pressure washer unit. This unit (the EZ version) is for pressure washers where the water inlet and outlet come out the front of the engine.

Availability: In Stock

Toolbarn.com

Earn 127 Barn Bucks Learn More.

Availability: In Stock

The Annovi Reverberi Pump, RMW2.2G24EZ, 2400PSI@2.2GPM is a quality and cost effective replacement pump for many popular models of pressure washers. It has two designations, the EZ and EZ-SX versions, which are each oriented differently on the pressure washer unit. This unit (the EZ version) is for pressure washers where the water inlet and outlet come out the front of the engine.

Does this fit my model?

Frequently Bought TogetherProduct Overview Specifications Reviews Recommended

Frequently Bought Together

Annovi Reverberi RMW2.2G24EZ Pressure Washer Pump, Axial, 2.2GPM@2400 PSI, 3400 RPM, 7/8" Shaft, Front Facing Connections

MODEL: RMW2.2G24EZ

$127.95
3/8

Pressure Parts 3/8" x M22 Ultimate Pressure Washer Quick Connect Kit

MODEL: 1526173

View Product Details

$21.99
Availability: In Stock
3/16

Karcher 3/16" X 1.5" Pump and Motor Shaft Key, 9.194-883.0

MODEL: 9.194-883.0

View Product Details

$4.99
Availability: In Stock
3200 PSI Pressure Washer Trigger Gun Kit w/ 25' Hose, Wand & Nozzles

Pressure Parts 3200 PSI Pressure Washer Trigger Gun Kit w/ 25' Hose, Wand & Nozzles

MODEL: 8108903950

View Product Details

$54.99
Availability: In Stock
3000 PSI Nozzle #3.0 Rotary Turbo Nozzle

Karcher 3000 PSI Nozzle #3.0 Rotary Turbo Nozzle

MODEL: 8.726-057.0

View Product Details

$56.40
Availability: In Stock
4000 PSI 1/4

Legacy 4000 PSI 1/4" MPT Pressure Washer Hose Quick Coupler Plug

MODEL: 8.707-139.0

View Product Details

$1.35
Availability: In Stock

Bundle Total: $267.67 $247.91

Add Bundle to cart

Product Overview

Pressure Washer Pump, Axial, 2.2GPM@2400 PSI, 3400 RPM, 7/8" Shaft, Front Facing Connections

The Annovi Reverberi Pump, RMW2.2G24EZ, 2400PSI@2.2GPM is a quality and cost effective replacement pump for many popular models of pressure washers. It has two designations, the EZ and EZ-SX versions, which are each oriented differently on the pressure washer unit. This unit (the EZ version) is for pressure washers where the water inlet and outlet come out the front of the engine. If your hoses connect on the back of your pressure washer, please see RMW2.2G24EZ-SX

  • Maximum Pressure: 2,400 PSI
  • Maximum Flow: 2.2 GPM
  • Shaft Size: 7/8"
  • Oil Lubricated
  • Adjustable pressure
  • Chemical injector included
  • Thermal relief valve included
  • Hose connection is 22mm x 14mm
  • Suitable replacement for Excell Pressure Washers with vertical shaft using original part # A07846
  • 3-piston alternating volumetric pumps for use on cleaning units
  • Can be directly coupled to various types of motors
  • Integral regulating valve
  • Pump body in die-cast aluminum alloy
  • Pistons driven by swash plate mechanism
  • Two bearing systems, to support the pump shaft and pistons
  • Pistons in hardened and tempered steel
  • Pump head in pressed brass
  • Double gasket sealing system
  • Intake valves fitted above the pistons for greater efficiency

In The Box

  • One (1) Axial Pressure Washer Pump, 2.2GPM@2400 PSI

Product Specifications

SKU
ar-north-america-rmw2-2g24ez
Model
RMW2.2G24EZ
Brand
Annovi Reverberi
Shipping Weight
9.0 lb
Product Weight
7.3 lbs
Condition
New
Manufacturer's Warranty
1 Year
Return Policy
Unopened Only, 30 Days
Package Type
Individual
Grade
Consumer
Addl Specs

Max GPM: 2.2


Max L/Min: 8.3


Max PSI: 2400


MaxBar: 166


Power EBHP: 3.6


Bore Dia mm: 12


Stroke mm: 8.3


Crankshaft ID Stamp: 5


Inlet; 3/4" GHA


Outlet: 22mmx1.4 M


Max Temp: 140° F


Oil Capacity (oz): 2.2


RPM: 3400


Shaft Size: 7/8"


Shaft Version: D


Shaft Type: Hollow

California Proposition 65 Warning

WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of those chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Click Here for more information

Reviews

Customer Reviews
4.7 Based on 27 Reviews
5 ★
81%
22
4 ★
11%
3
3 ★
4%
1
2 ★
0%
0
1 ★
4%
1
100reviewers would recommend this product Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
  • pump
  • pressure washer
  • part
  • model
  • quality
  • 5/16
  • spacers
  • direction
  • toolbarn price
  • shaft size
LG
12/18/2022
Leo G.
United States
I recommend this product

Great pump

Fit it onto the motor, took a few seconds to mount. The delivery was fast enough. The pump works so initial quality is there. I did not deal with Service department so I cannot speak to that.

Share   |   Facebook  •  Twitter
Was this helpful?  0    0
A
09/09/2022
Anonymous
United States United States
I recommend this product

Pump

GREAT your service is the best.good ordering from you thanks

Share   |   Facebook  •  Twitter
Was this helpful?  0    0
TM
08/16/2022
Thomas M.
United States United States
I recommend this product

Pump

Fit perfect, runs great

Share   |   Facebook  •  Twitter
Was this helpful?  0    0
JG
08/09/2022
Justin G.
United States United States
I recommend this product

Worked for my delta dt2200

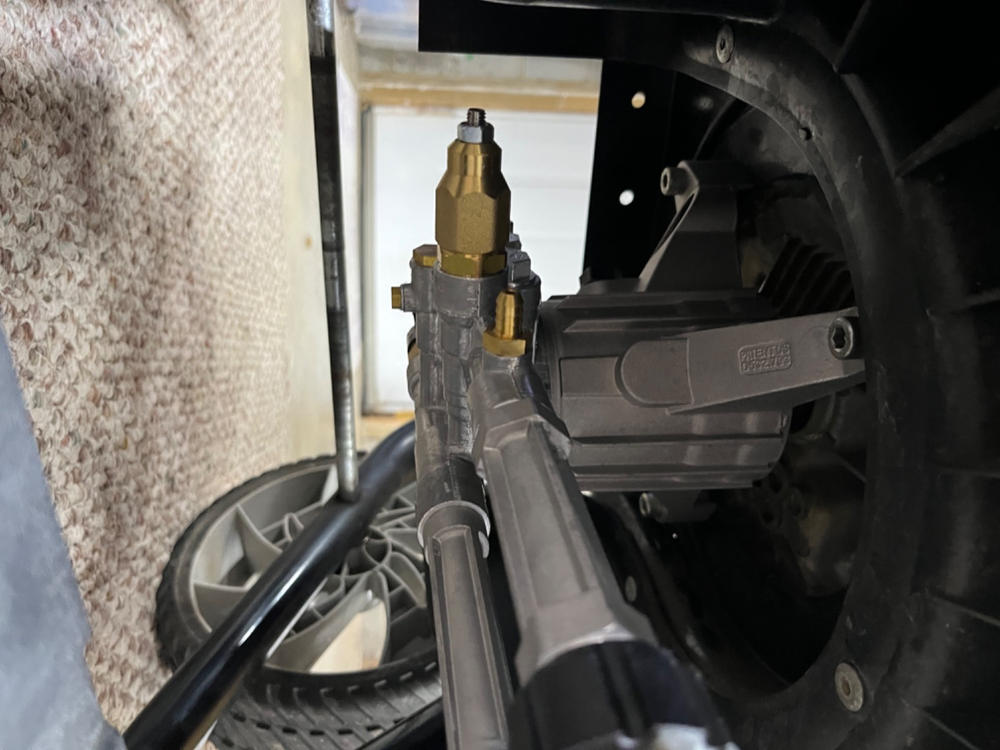

The pump on my model of pressure washer is no longer made. This one was the correct shaft size with fittings facing the correct direction, but required ~3/8” spacers and new, longer 5/16” bolts to mount properly. The power washer is back in business, and the toolbarn price was the best I could find.

Share   |   Facebook  •  Twitter
Was this helpful?  0    0
CK
08/05/2022
Chet K.
United States United States
I recommend this product

Works Great!

Easy to install and works great!

Share   |   Facebook  •  Twitter
Was this helpful?  0    0
